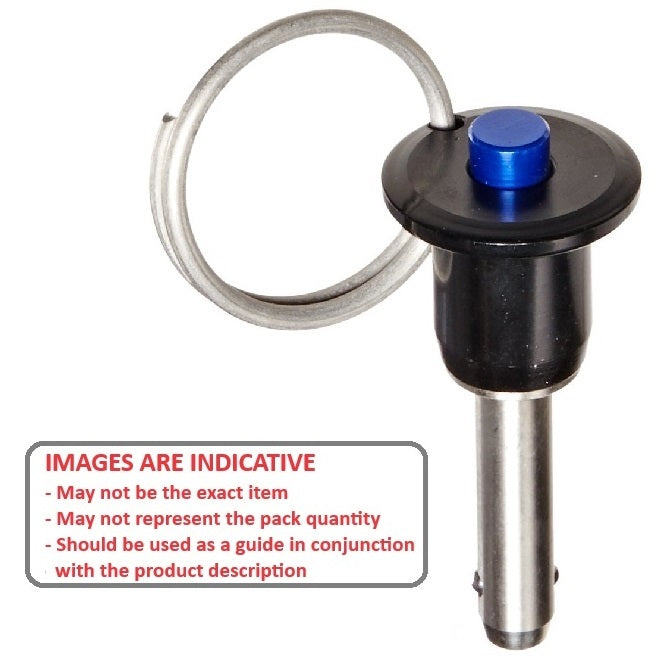

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

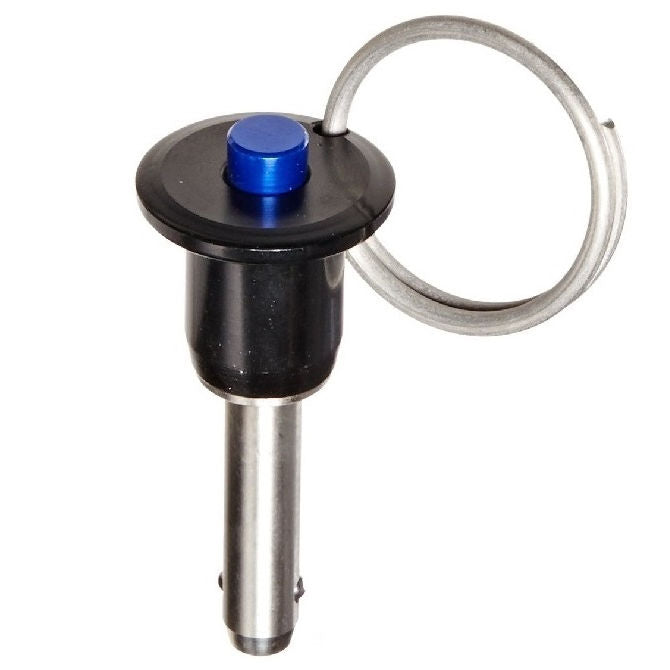

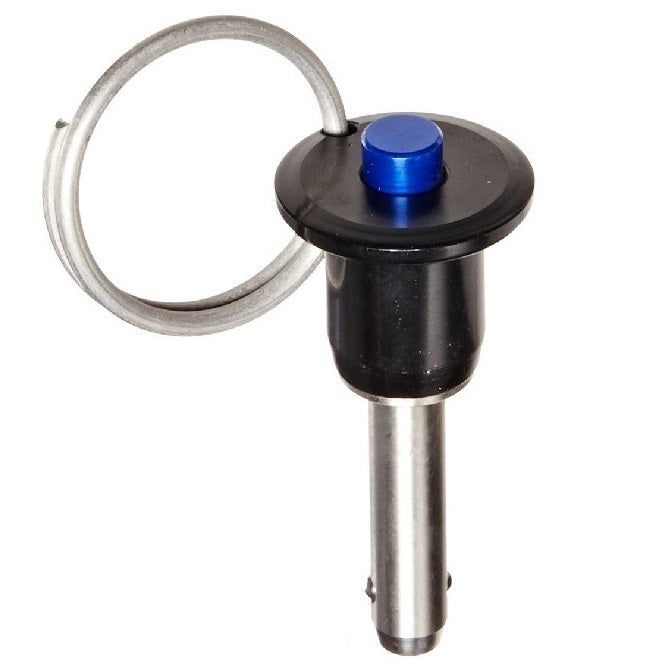

Pins - 6.35 mm x 38.1 mm 304 Stainless Steel Shank / Aluminium Handle
BLP-064-0381-BT-S4

MBA

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Price:
$39.05 AUD
$39.05 AUD
Each
Out Of Stock
Order 50 or more for $35.15 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Feb 27, 2025

Base Category: Pins - Ball Lock

Top Level Category: Pins - Ball Lock - Button Handle - Commercial - 304 Stainless

Product Details:

Nominal Diameter: 6.35mm
Stainless 304 Grade with Aluminium Handle

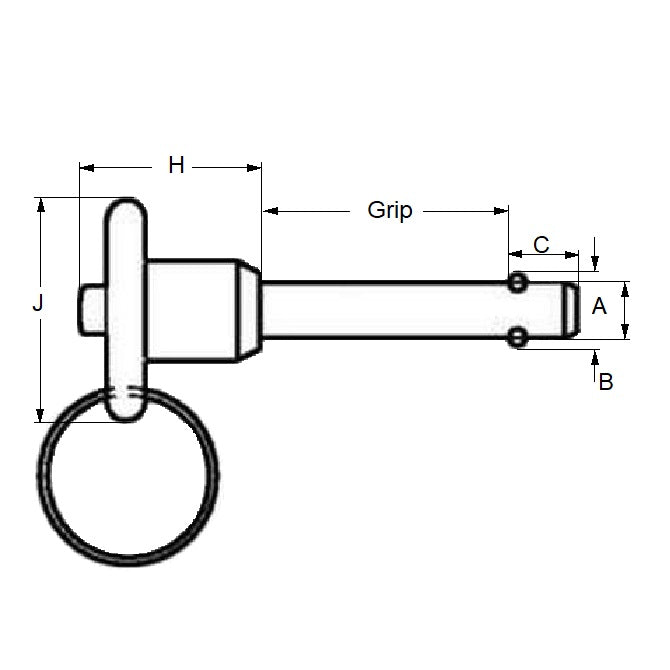

  • Grip Length: 38.10mm
  • Material Grade: 304 Stainless Steel Shank / Aluminium Handle
  • Locking Ball to End (C): 7.37mm
  • Open Ball Distance (B): 7.34mm
  • Max. Handle Height (H): 22.61mm
  • Max. Handle Diameter (J): 20.32mm
  • Min. Handle Diameter (J): 18.29mm
  • Pull Out Strength: 80.00Kg
  • Calc. Double Shear Strength: 980Kg

Brand: MBA
Country of Origin: US

Alternatives: 90985A113, CPB-020

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
