Collection: Pins - Ball Lock - Button Handle - Commercial - 304 Stainless

Pins (With Images)

Pins - Ball Lock
Pins - Ball Lock - Button Handle
Pins - Ball Lock - Button Handle - Commercial

Pins - Ball Lock - Button Handle - Commercial - 304 Stainless

39 Products in this selection

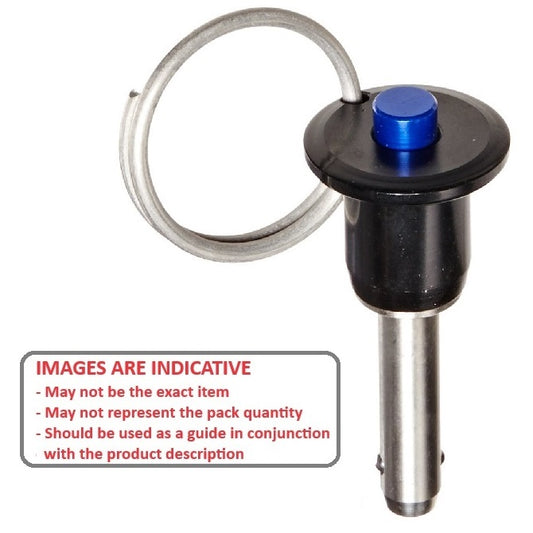

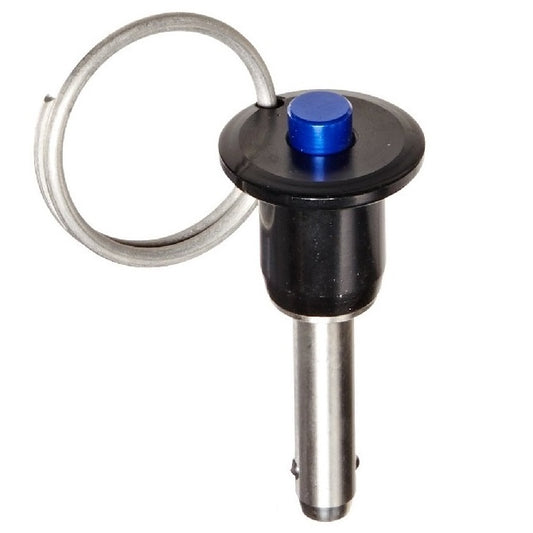

Quick release. Commercial pins provide strong locking and are perfect for less demanding applications where fastening and locating are needed.
Economical. Positive lock detent pins.
Aluminium handles.
360 Brass Buttons
304 Stainless Steel Shank and balls
Use industrial grade T handled pins when higher double shear strength is required

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins

Nominal Diameter	Grip Length	Material Grade	Locking Ball to End (C)	Open Ball Distance (B)	Max. Handle Height (H)
6.35 mm	12.70 mm	304 Stainless Steel Shank / Aluminium Handle	7.37 mm	7.34 mm	22.61 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 20.32 mm Min. Handle Diameter (J): 18.29 mm Pull Out Strength: 80.00 Kg Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0127-BT-S4 Pins - 6.35 mm x 12.7 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $37.50 AUD Regular price Sale price $37.50 AUD Unit price per Each
Nominal Diameter	Grip Length	Material Grade	Locking Ball to End (C)	Indicative Image
6.35 mm	12.70 mm	304 Stainless Steel Shank / Aluminium Handle	7.37 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 7.34 mm Max. Handle Height (H): 22.61 mm Max. Handle Diameter (J): 20.32 mm Min. Handle Diameter (J): 18.29 mm Pull Out Strength: 80.00 Kg Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0127-BT-S4 Pins - 6.35 mm x 12.7 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $37.50 AUD Regular price Sale price $37.50 AUD Unit price per Each
BLP-064-0127-BT-S4 --- Pins - 6.35 mm x 12.7 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-064-0127-BT-S4 --- Pins - 6.35 mm x 12.7 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $37.50 AUD Regular price Sale price $37.50 AUD Unit price per Out of stock! Backorder Now
6.35 mm	25.40 mm	304 Stainless Steel Shank / Aluminium Handle	7.37 mm	7.34 mm	22.61 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 20.32 mm Min. Handle Diameter (J): 18.29 mm Pull Out Strength: 80.00 Kg Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0254-BT-S4 Pins - 6.35 mm x 25.4 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $37.86 AUD Regular price Sale price $37.86 AUD Unit price per Each
6.35 mm	25.40 mm	304 Stainless Steel Shank / Aluminium Handle	7.37 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 7.34 mm Max. Handle Height (H): 22.61 mm Max. Handle Diameter (J): 20.32 mm Min. Handle Diameter (J): 18.29 mm Pull Out Strength: 80.00 Kg Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0254-BT-S4 Pins - 6.35 mm x 25.4 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $37.86 AUD Regular price Sale price $37.86 AUD Unit price per Each
BLP-064-0254-BT-S4 --- Pins - 6.35 mm x 25.4 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-064-0254-BT-S4 --- Pins - 6.35 mm x 25.4 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $37.86 AUD Regular price Sale price $37.86 AUD Unit price per Out of stock! Backorder Now
6.35 mm	38.10 mm	304 Stainless Steel Shank / Aluminium Handle	7.37 mm	7.34 mm	22.61 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 20.32 mm Min. Handle Diameter (J): 18.29 mm Pull Out Strength: 80.00 Kg Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0381-BT-S4 Pins - 6.35 mm x 38.1 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $39.05 AUD Regular price Sale price $39.05 AUD Unit price per Each
6.35 mm	38.10 mm	304 Stainless Steel Shank / Aluminium Handle	7.37 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 7.34 mm Max. Handle Height (H): 22.61 mm Max. Handle Diameter (J): 20.32 mm Min. Handle Diameter (J): 18.29 mm Pull Out Strength: 80.00 Kg Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0381-BT-S4 Pins - 6.35 mm x 38.1 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $39.05 AUD Regular price Sale price $39.05 AUD Unit price per Each
BLP-064-0381-BT-S4 --- Pins - 6.35 mm x 38.1 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-064-0381-BT-S4 --- Pins - 6.35 mm x 38.1 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $39.05 AUD Regular price Sale price $39.05 AUD Unit price per Out of stock! Backorder Now
6.35 mm	50.80 mm	304 Stainless Steel Shank / Aluminium Handle	7.37 mm	7.34 mm	22.61 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 20.32 mm Min. Handle Diameter (J): 18.29 mm Pull Out Strength: 80.00 Kg Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0508-BT-S4 Pins - 6.35 mm x 50.8 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $29.77 AUD Regular price Sale price $29.77 AUD Unit price per Each
6.35 mm	50.80 mm	304 Stainless Steel Shank / Aluminium Handle	7.37 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 7.34 mm Max. Handle Height (H): 22.61 mm Max. Handle Diameter (J): 20.32 mm Min. Handle Diameter (J): 18.29 mm Pull Out Strength: 80.00 Kg Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0508-BT-S4 Pins - 6.35 mm x 50.8 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $29.77 AUD Regular price Sale price $29.77 AUD Unit price per Each
BLP-064-0508-BT-S4 --- Pins - 6.35 mm x 50.8 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-064-0508-BT-S4 --- Pins - 6.35 mm x 50.8 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $29.77 AUD Regular price Sale price $29.77 AUD Unit price per Out of stock! Backorder Now
6.35 mm	63.50 mm	304 Stainless Steel Shank / Aluminium Handle	7.37 mm	7.34 mm	22.61 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 20.32 mm Min. Handle Diameter (J): 18.29 mm Pull Out Strength: 80.00 Kg Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0635-BT-S4 Pins - 6.35 mm x 63.5 mm 304 Stainless Steel Shank / Aluminium Handle 2 Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $50.14 AUD Regular price Sale price $50.14 AUD Unit price per Each
6.35 mm	63.50 mm	304 Stainless Steel Shank / Aluminium Handle	7.37 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 7.34 mm Max. Handle Height (H): 22.61 mm Max. Handle Diameter (J): 20.32 mm Min. Handle Diameter (J): 18.29 mm Pull Out Strength: 80.00 Kg Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0635-BT-S4 Pins - 6.35 mm x 63.5 mm 304 Stainless Steel Shank / Aluminium Handle 2 Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $50.14 AUD Regular price Sale price $50.14 AUD Unit price per Each
BLP-064-0635-BT-S4 --- Pins - 6.35 mm x 63.5 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-064-0635-BT-S4 --- Pins - 6.35 mm x 63.5 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $50.14 AUD Regular price Sale price $50.14 AUD Unit price per 2 Available Now
6.35 mm	76.20 mm	304 Stainless Steel Shank / Aluminium Handle	7.37 mm	7.34 mm	22.61 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 20.32 mm Min. Handle Diameter (J): 18.29 mm Pull Out Strength: 80.00 Kg Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0762-BT-S4 Pins - 6.35 mm x 76.2 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $32.59 AUD Regular price Sale price $32.59 AUD Unit price per Each
6.35 mm	76.20 mm	304 Stainless Steel Shank / Aluminium Handle	7.37 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 7.34 mm Max. Handle Height (H): 22.61 mm Max. Handle Diameter (J): 20.32 mm Min. Handle Diameter (J): 18.29 mm Pull Out Strength: 80.00 Kg Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0762-BT-S4 Pins - 6.35 mm x 76.2 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $32.59 AUD Regular price Sale price $32.59 AUD Unit price per Each
BLP-064-0762-BT-S4 --- Pins - 6.35 mm x 76.2 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-064-0762-BT-S4 --- Pins - 6.35 mm x 76.2 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $32.59 AUD Regular price Sale price $32.59 AUD Unit price per Out of stock! Backorder Now
6.35 mm	88.90 mm	304 Stainless Steel Shank / Aluminium Handle	7.37 mm	7.34 mm	22.61 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 20.32 mm Min. Handle Diameter (J): 18.29 mm Pull Out Strength: 80.00 Kg Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0889-BT-S4 Pins - 6.35 mm x 88.9 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $45.50 AUD Regular price Sale price $45.50 AUD Unit price per Each
6.35 mm	88.90 mm	304 Stainless Steel Shank / Aluminium Handle	7.37 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 7.34 mm Max. Handle Height (H): 22.61 mm Max. Handle Diameter (J): 20.32 mm Min. Handle Diameter (J): 18.29 mm Pull Out Strength: 80.00 Kg Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-0889-BT-S4 Pins - 6.35 mm x 88.9 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $45.50 AUD Regular price Sale price $45.50 AUD Unit price per Each
BLP-064-0889-BT-S4 --- Pins - 6.35 mm x 88.9 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-064-0889-BT-S4 --- Pins - 6.35 mm x 88.9 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $45.50 AUD Regular price Sale price $45.50 AUD Unit price per Out of stock! Backorder Now
6.35 mm	101.60 mm	304 Stainless Steel Shank / Aluminium Handle	7.37 mm	7.34 mm	22.61 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 20.32 mm Min. Handle Diameter (J): 18.29 mm Pull Out Strength: 80.00 Kg Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-1016-BT-S4 Pins - 6.35 mm x 101.6 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $34.50 AUD Regular price Sale price $34.50 AUD Unit price per Each
6.35 mm	101.60 mm	304 Stainless Steel Shank / Aluminium Handle	7.37 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 7.34 mm Max. Handle Height (H): 22.61 mm Max. Handle Diameter (J): 20.32 mm Min. Handle Diameter (J): 18.29 mm Pull Out Strength: 80.00 Kg Calc. Double Shear Strength: 980 Kg
Part Number: BLP-064-1016-BT-S4 Pins - 6.35 mm x 101.6 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $34.50 AUD Regular price Sale price $34.50 AUD Unit price per Each
BLP-064-1016-BT-S4 --- Pins - 6.35 mm x 101.6 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-064-1016-BT-S4 --- Pins - 6.35 mm x 101.6 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $34.50 AUD Regular price Sale price $34.50 AUD Unit price per Out of stock! Backorder Now
7.94 mm	25.40 mm	304 Stainless Steel Shank / Aluminium Handle	8.38 mm	9.53 mm	23.62 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 20.57 mm Pull Out Strength: 178.00 Kg Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-0254-BT-S4 Pins - 7.94 mm x 25.4 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $31.59 AUD Regular price Sale price $31.59 AUD Unit price per Each
7.94 mm	25.40 mm	304 Stainless Steel Shank / Aluminium Handle	8.38 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 9.53 mm Max. Handle Height (H): 23.62 mm Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 20.57 mm Pull Out Strength: 178.00 Kg Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-0254-BT-S4 Pins - 7.94 mm x 25.4 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $31.59 AUD Regular price Sale price $31.59 AUD Unit price per Each
BLP-079-0254-BT-S4 --- Pins - 7.94 mm x 25.4 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-079-0254-BT-S4 --- Pins - 7.94 mm x 25.4 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $31.59 AUD Regular price Sale price $31.59 AUD Unit price per Out of stock! Backorder Now
7.94 mm	38.10 mm	304 Stainless Steel Shank / Aluminium Handle	8.38 mm	9.53 mm	23.62 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 20.57 mm Pull Out Strength: 178.00 Kg Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-0381-BT-S4 Pins - 7.94 mm x 38.1 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $34.23 AUD Regular price Sale price $34.23 AUD Unit price per Each
7.94 mm	38.10 mm	304 Stainless Steel Shank / Aluminium Handle	8.38 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 9.53 mm Max. Handle Height (H): 23.62 mm Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 20.57 mm Pull Out Strength: 178.00 Kg Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-0381-BT-S4 Pins - 7.94 mm x 38.1 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $34.23 AUD Regular price Sale price $34.23 AUD Unit price per Each
BLP-079-0381-BT-S4 --- Pins - 7.94 mm x 38.1 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-079-0381-BT-S4 --- Pins - 7.94 mm x 38.1 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $34.23 AUD Regular price Sale price $34.23 AUD Unit price per Out of stock! Backorder Now
7.94 mm	50.80 mm	304 Stainless Steel Shank / Aluminium Handle	8.38 mm	9.53 mm	23.62 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 20.57 mm Pull Out Strength: 178.00 Kg Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-0508-BT-S4 Pins - 7.94 mm x 50.8 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $46.23 AUD Regular price Sale price $46.23 AUD Unit price per Each
7.94 mm	50.80 mm	304 Stainless Steel Shank / Aluminium Handle	8.38 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 9.53 mm Max. Handle Height (H): 23.62 mm Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 20.57 mm Pull Out Strength: 178.00 Kg Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-0508-BT-S4 Pins - 7.94 mm x 50.8 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $46.23 AUD Regular price Sale price $46.23 AUD Unit price per Each
BLP-079-0508-BT-S4 --- Pins - 7.94 mm x 50.8 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-079-0508-BT-S4 --- Pins - 7.94 mm x 50.8 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $46.23 AUD Regular price Sale price $46.23 AUD Unit price per Out of stock! Backorder Now
7.94 mm	63.50 mm	304 Stainless Steel Shank / Aluminium Handle	8.38 mm	9.53 mm	23.62 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 20.57 mm Pull Out Strength: 178.00 Kg Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-0635-BT-S4 Pins - 7.94 mm x 63.5 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $38.68 AUD Regular price Sale price $38.68 AUD Unit price per Each
7.94 mm	63.50 mm	304 Stainless Steel Shank / Aluminium Handle	8.38 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 9.53 mm Max. Handle Height (H): 23.62 mm Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 20.57 mm Pull Out Strength: 178.00 Kg Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-0635-BT-S4 Pins - 7.94 mm x 63.5 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $38.68 AUD Regular price Sale price $38.68 AUD Unit price per Each
BLP-079-0635-BT-S4 --- Pins - 7.94 mm x 63.5 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-079-0635-BT-S4 --- Pins - 7.94 mm x 63.5 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $38.68 AUD Regular price Sale price $38.68 AUD Unit price per Out of stock! Backorder Now
7.94 mm	76.20 mm	304 Stainless Steel Shank / Aluminium Handle	8.38 mm	9.53 mm	23.62 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 20.57 mm Pull Out Strength: 178.00 Kg Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-0762-BT-S4 Pins - 7.94 mm x 76.2 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $41.77 AUD Regular price Sale price $41.77 AUD Unit price per Each
7.94 mm	76.20 mm	304 Stainless Steel Shank / Aluminium Handle	8.38 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 9.53 mm Max. Handle Height (H): 23.62 mm Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 20.57 mm Pull Out Strength: 178.00 Kg Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-0762-BT-S4 Pins - 7.94 mm x 76.2 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $41.77 AUD Regular price Sale price $41.77 AUD Unit price per Each
BLP-079-0762-BT-S4 --- Pins - 7.94 mm x 76.2 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-079-0762-BT-S4 --- Pins - 7.94 mm x 76.2 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $41.77 AUD Regular price Sale price $41.77 AUD Unit price per Out of stock! Backorder Now
7.94 mm	88.90 mm	304 Stainless Steel Shank / Aluminium Handle	8.38 mm	9.53 mm	23.62 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 20.57 mm Pull Out Strength: 178.00 Kg Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-0889-BT-S4 Pins - 7.94 mm x 88.9 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $51.32 AUD Regular price Sale price $51.32 AUD Unit price per Each
7.94 mm	88.90 mm	304 Stainless Steel Shank / Aluminium Handle	8.38 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 9.53 mm Max. Handle Height (H): 23.62 mm Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 20.57 mm Pull Out Strength: 178.00 Kg Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-0889-BT-S4 Pins - 7.94 mm x 88.9 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $51.32 AUD Regular price Sale price $51.32 AUD Unit price per Each
BLP-079-0889-BT-S4 --- Pins - 7.94 mm x 88.9 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-079-0889-BT-S4 --- Pins - 7.94 mm x 88.9 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $51.32 AUD Regular price Sale price $51.32 AUD Unit price per Out of stock! Backorder Now
7.94 mm	101.60 mm	304 Stainless Steel Shank / Aluminium Handle	8.38 mm	9.53 mm	23.62 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 20.57 mm Pull Out Strength: 178.00 Kg Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-1016-BT-S4 Pins - 7.94 mm x 101.6 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $45.77 AUD Regular price Sale price $45.77 AUD Unit price per Each
7.94 mm	101.60 mm	304 Stainless Steel Shank / Aluminium Handle	8.38 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 9.53 mm Max. Handle Height (H): 23.62 mm Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 20.57 mm Pull Out Strength: 178.00 Kg Calc. Double Shear Strength: 1560 Kg
Part Number: BLP-079-1016-BT-S4 Pins - 7.94 mm x 101.6 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $45.77 AUD Regular price Sale price $45.77 AUD Unit price per Each
BLP-079-1016-BT-S4 --- Pins - 7.94 mm x 101.6 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-079-1016-BT-S4 --- Pins - 7.94 mm x 101.6 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $45.77 AUD Regular price Sale price $45.77 AUD Unit price per Out of stock! Backorder Now
9.53 mm	12.70 mm	304 Stainless Steel Shank / Aluminium Handle	9.27 mm	11.18 mm	26.42 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 22.23 mm Pull Out Strength: 200.00 Kg Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0127-BT-S4 Pins - 9.53 mm x 12.7 mm 304 Stainless Steel Shank / Aluminium Handle 2 Available \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $46.50 AUD Regular price Sale price $46.50 AUD Unit price per Each
9.53 mm	12.70 mm	304 Stainless Steel Shank / Aluminium Handle	9.27 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 11.18 mm Max. Handle Height (H): 26.42 mm Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 22.23 mm Pull Out Strength: 200.00 Kg Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0127-BT-S4 Pins - 9.53 mm x 12.7 mm 304 Stainless Steel Shank / Aluminium Handle 2 Available \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $46.50 AUD Regular price Sale price $46.50 AUD Unit price per Each
BLP-095-0127-BT-S4 --- Pins - 9.53 mm x 12.7 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-095-0127-BT-S4 --- Pins - 9.53 mm x 12.7 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $46.50 AUD Regular price Sale price $46.50 AUD Unit price per 2 Available Now
9.53 mm	25.40 mm	304 Stainless Steel Shank / Aluminium Handle	9.27 mm	11.18 mm	26.42 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 22.23 mm Pull Out Strength: 200.00 Kg Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0254-BT-S4 Pins - 9.53 mm x 25.4 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $34.23 AUD Regular price Sale price $34.23 AUD Unit price per Each
9.53 mm	25.40 mm	304 Stainless Steel Shank / Aluminium Handle	9.27 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 11.18 mm Max. Handle Height (H): 26.42 mm Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 22.23 mm Pull Out Strength: 200.00 Kg Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0254-BT-S4 Pins - 9.53 mm x 25.4 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $34.23 AUD Regular price Sale price $34.23 AUD Unit price per Each
BLP-095-0254-BT-S4 --- Pins - 9.53 mm x 25.4 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-095-0254-BT-S4 --- Pins - 9.53 mm x 25.4 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $34.23 AUD Regular price Sale price $34.23 AUD Unit price per Out of stock! Backorder Now
9.53 mm	38.10 mm	304 Stainless Steel Shank / Aluminium Handle	9.27 mm	11.18 mm	26.42 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 22.23 mm Pull Out Strength: 200.00 Kg Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0381-BT-S4 Pins - 9.53 mm x 38.1 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $41.86 AUD Regular price Sale price $41.86 AUD Unit price per Each
9.53 mm	38.10 mm	304 Stainless Steel Shank / Aluminium Handle	9.27 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 11.18 mm Max. Handle Height (H): 26.42 mm Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 22.23 mm Pull Out Strength: 200.00 Kg Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0381-BT-S4 Pins - 9.53 mm x 38.1 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $41.86 AUD Regular price Sale price $41.86 AUD Unit price per Each
BLP-095-0381-BT-S4 --- Pins - 9.53 mm x 38.1 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-095-0381-BT-S4 --- Pins - 9.53 mm x 38.1 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $41.86 AUD Regular price Sale price $41.86 AUD Unit price per Out of stock! Backorder Now
9.53 mm	50.80 mm	304 Stainless Steel Shank / Aluminium Handle	9.27 mm	11.18 mm	26.42 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 22.23 mm Pull Out Strength: 200.00 Kg Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0508-BT-S4 Pins - 9.53 mm x 50.8 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $39.41 AUD Regular price Sale price $39.41 AUD Unit price per Each
9.53 mm	50.80 mm	304 Stainless Steel Shank / Aluminium Handle	9.27 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 11.18 mm Max. Handle Height (H): 26.42 mm Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 22.23 mm Pull Out Strength: 200.00 Kg Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0508-BT-S4 Pins - 9.53 mm x 50.8 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $39.41 AUD Regular price Sale price $39.41 AUD Unit price per Each
BLP-095-0508-BT-S4 --- Pins - 9.53 mm x 50.8 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-095-0508-BT-S4 --- Pins - 9.53 mm x 50.8 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $39.41 AUD Regular price Sale price $39.41 AUD Unit price per Out of stock! Backorder Now
9.53 mm	63.50 mm	304 Stainless Steel Shank / Aluminium Handle	9.27 mm	11.18 mm	26.42 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 22.23 mm Pull Out Strength: 200.00 Kg Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0635-BT-S4 Pins - 9.53 mm x 63.5 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $61.23 AUD Regular price Sale price $61.23 AUD Unit price per Each
9.53 mm	63.50 mm	304 Stainless Steel Shank / Aluminium Handle	9.27 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 11.18 mm Max. Handle Height (H): 26.42 mm Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 22.23 mm Pull Out Strength: 200.00 Kg Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0635-BT-S4 Pins - 9.53 mm x 63.5 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $61.23 AUD Regular price Sale price $61.23 AUD Unit price per Each
BLP-095-0635-BT-S4 --- Pins - 9.53 mm x 63.5 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-095-0635-BT-S4 --- Pins - 9.53 mm x 63.5 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $61.23 AUD Regular price Sale price $61.23 AUD Unit price per Out of stock! Backorder Now
9.53 mm	76.20 mm	304 Stainless Steel Shank / Aluminium Handle	9.27 mm	11.18 mm	26.42 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 22.23 mm Pull Out Strength: 200.00 Kg Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0762-BT-S4 Pins - 9.53 mm x 76.2 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $62.32 AUD Regular price Sale price $62.32 AUD Unit price per Each
9.53 mm	76.20 mm	304 Stainless Steel Shank / Aluminium Handle	9.27 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 11.18 mm Max. Handle Height (H): 26.42 mm Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 22.23 mm Pull Out Strength: 200.00 Kg Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0762-BT-S4 Pins - 9.53 mm x 76.2 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $62.32 AUD Regular price Sale price $62.32 AUD Unit price per Each
BLP-095-0762-BT-S4 --- Pins - 9.53 mm x 76.2 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-095-0762-BT-S4 --- Pins - 9.53 mm x 76.2 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $62.32 AUD Regular price Sale price $62.32 AUD Unit price per Out of stock! Backorder Now
9.53 mm	88.90 mm	304 Stainless Steel Shank / Aluminium Handle	9.27 mm	11.18 mm	26.42 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 22.23 mm Pull Out Strength: 200.00 Kg Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0889-BT-S4 Pins - 9.53 mm x 88.9 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $66.05 AUD Regular price Sale price $66.05 AUD Unit price per Each
9.53 mm	88.90 mm	304 Stainless Steel Shank / Aluminium Handle	9.27 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 11.18 mm Max. Handle Height (H): 26.42 mm Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 22.23 mm Pull Out Strength: 200.00 Kg Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-0889-BT-S4 Pins - 9.53 mm x 88.9 mm 304 Stainless Steel Shank / Aluminium Handle Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $66.05 AUD Regular price Sale price $66.05 AUD Unit price per Each
BLP-095-0889-BT-S4 --- Pins - 9.53 mm x 88.9 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-095-0889-BT-S4 --- Pins - 9.53 mm x 88.9 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $66.05 AUD Regular price Sale price $66.05 AUD Unit price per Out of stock! Backorder Now
9.53 mm	101.60 mm	304 Stainless Steel Shank / Aluminium Handle	9.27 mm	11.18 mm	26.42 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 22.23 mm Pull Out Strength: 200.00 Kg Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-1016-BT-S4 Pins - 9.53 mm x 101.6 mm 304 Stainless Steel Shank / Aluminium Handle 2 Available \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $72.14 AUD Regular price Sale price $72.14 AUD Unit price per Each
9.53 mm	101.60 mm	304 Stainless Steel Shank / Aluminium Handle	9.27 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 11.18 mm Max. Handle Height (H): 26.42 mm Max. Handle Diameter (J): 28.83 mm Min. Handle Diameter (J): 22.23 mm Pull Out Strength: 200.00 Kg Calc. Double Shear Strength: 2000 Kg
Part Number: BLP-095-1016-BT-S4 Pins - 9.53 mm x 101.6 mm 304 Stainless Steel Shank / Aluminium Handle 2 Available \| \| Backorders for more can be expected around Sat, Mar 01, 2025 Regular price $72.14 AUD Regular price Sale price $72.14 AUD Unit price per Each
BLP-095-1016-BT-S4 --- Pins - 9.53 mm x 101.6 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-095-1016-BT-S4 --- Pins - 9.53 mm x 101.6 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $72.14 AUD Regular price Sale price $72.14 AUD Unit price per 2 Available Now
12.70 mm	12.70 mm	304 Stainless Steel Shank / Aluminium Handle	11.68 mm	15.09 mm	30.23 mm
Material: Stainless 304 Grade with Aluminium Handle Max. Handle Diameter (J): 35.56 mm Min. Handle Diameter (J): 33.02 mm Pull Out Strength: 400.00 Kg Calc. Double Shear Strength: 5100 Kg
Part Number: BLP-127-0127-BT-S4 Pins - 12.7 mm x 12.7 mm 304 Stainless Steel Shank / Aluminium Handle 1 Available \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $55.23 AUD Regular price Sale price $55.23 AUD Unit price per Each
12.70 mm	12.70 mm	304 Stainless Steel Shank / Aluminium Handle	11.68 mm
Material: Stainless 304 Grade with Aluminium Handle Open Ball Distance (B): 15.09 mm Max. Handle Height (H): 30.23 mm Max. Handle Diameter (J): 35.56 mm Min. Handle Diameter (J): 33.02 mm Pull Out Strength: 400.00 Kg Calc. Double Shear Strength: 5100 Kg
Part Number: BLP-127-0127-BT-S4 Pins - 12.7 mm x 12.7 mm 304 Stainless Steel Shank / Aluminium Handle 1 Available \| \| Backorders for more can be expected around Sat, Jan 18, 2025 Regular price $55.23 AUD Regular price Sale price $55.23 AUD Unit price per Each
BLP-127-0127-BT-S4 --- Pins - 12.7 mm x 12.7 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle BLP-127-0127-BT-S4 --- Pins - 12.7 mm x 12.7 mm 304 Stainless Steel Shank / Aluminium Handle Stainless 304 Grade with Aluminium Handle Regular price $55.23 AUD Regular price Sale price $55.23 AUD Unit price per 1 Available Now

Country/region

Language

Collection: Pins - Ball Lock - Button Handle - Commercial - 304 Stainless

Filter

Filter

SUBSCRIBE TO OUR EMAILS
