CNG-00635-CZ (PK-100)

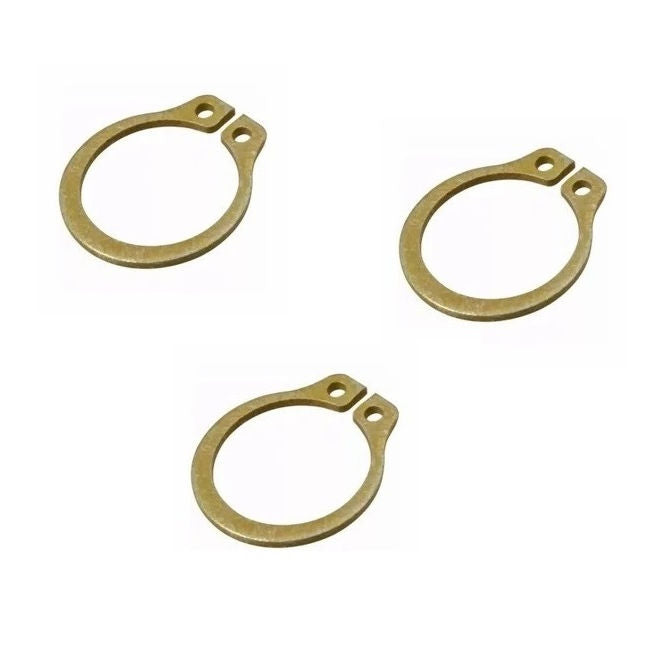

External Retaining Rings - 6.35x0.89 - - Circlips - Carbon Steel Zinc Plated Yellow Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 100 (5000 pcs)
for $36.37 AUD per 100 pack
1/4 inch Circlip - 6.35x0.89 - - External Retaining Rings - Carbon Steel Zinc Plated Yellow - Sold per pack of 100:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Grooveless
Product Details
Additional stock available from USA subject to Prior Sale = 1402

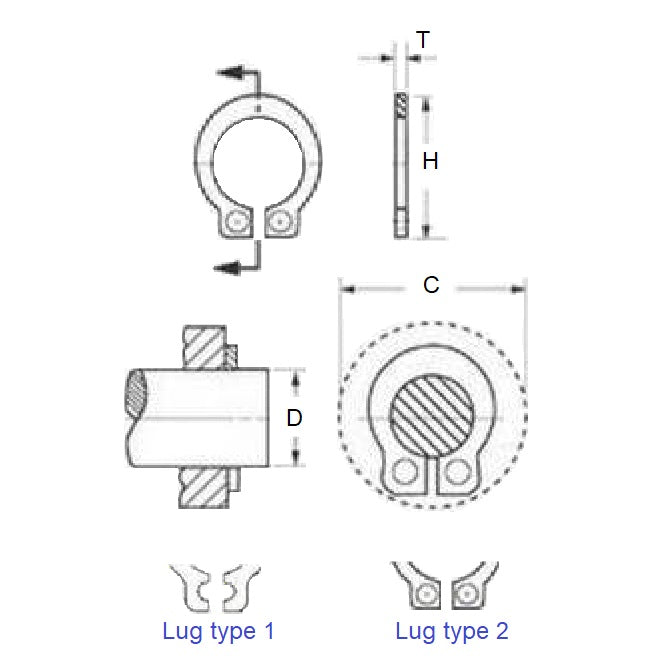

Shaft Diameter (Ds): 6.35mm
(6.35mm is 0.25 in.)
Carbon Steel Zinc Plated Yellow
- Shaft Diameter (Ds): 6.35mm
(6.35mm is 0.25 in.)
- Clip Thickness (T): 0.89mm
(0.89mm is 0.035 in.)
- Groove Dia. (Dg): -mm
- Approx. Loose Circlip ID (A): 6.000mm
- Assemb. Clearance on Shaft (C): 12.45
- Allowable Load: 142N
- Lug Type: 2 (Closed)mm
- Tool: PRS-E047-X
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® SHF-025-ZD
- NoCor® SHF-025-ZD
- SHF025ZD
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CNG00635CZ, CNG00635
