Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

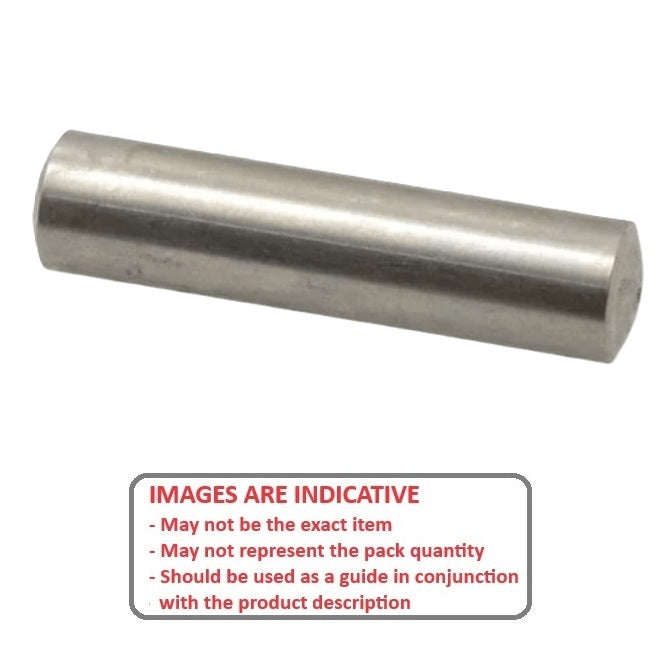

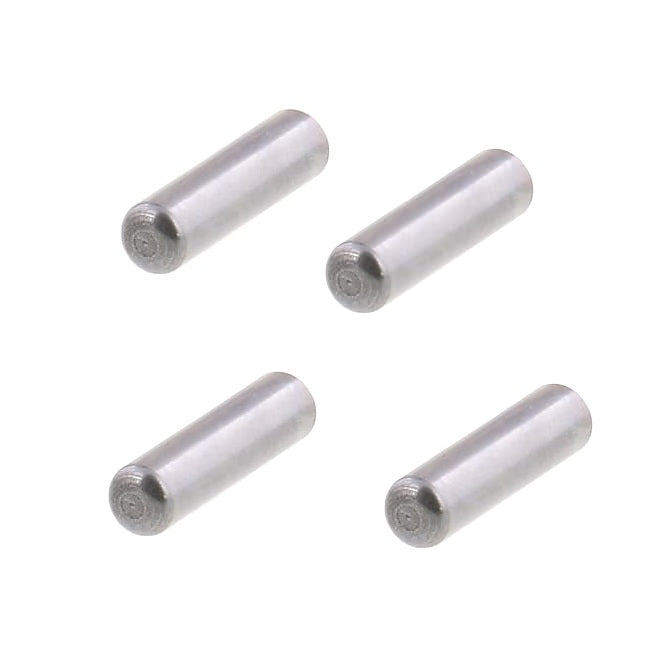

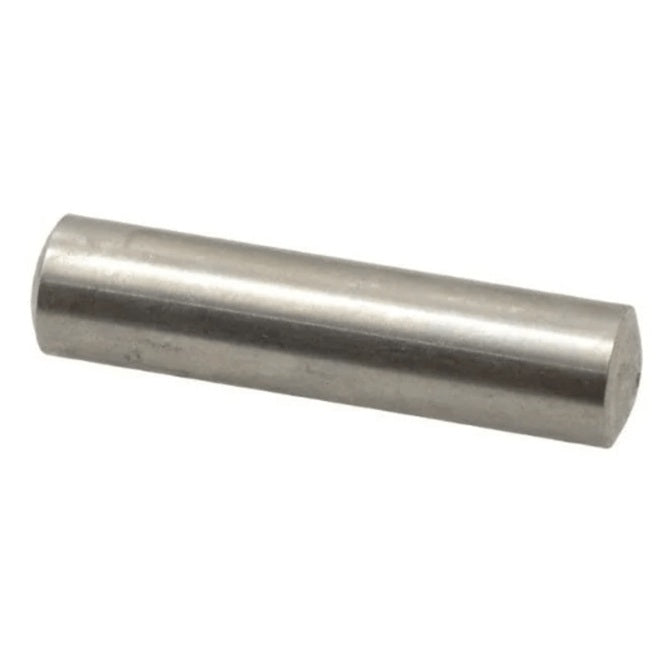

Dowel Pins - 5 mm x 20 mm x 21.5 mm
DP050-020-C-3 (5 Pcs)

NoCor

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$15.59 AUD
$15.59 AUD
per 5
Out Of Stock
Order 50 or more (250 pcs) for $14.03 AUD per 5
Pre-Order now! Backorders for more than the stock quantity are expected before Mar 27, 2025

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Rounded Ends - Unhardened Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 835

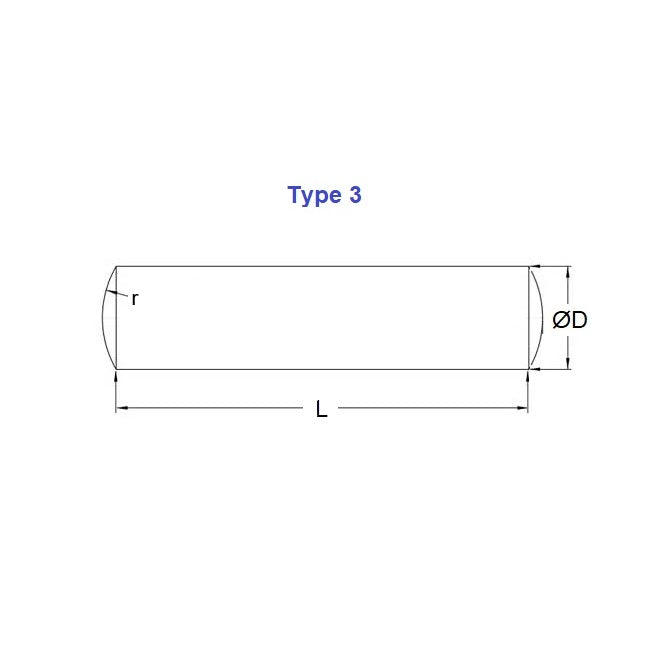

Diameter (D): 5.000mm
+ 0.004 / + 0.012

Carbon Steel Unhardened
  • Length (L): 20.00mm
    +/- 0.420
  • Approx. Overall Length: 21.50mm
    +/ - 0.420
  • Type: 3 (Rounded Ends)
  • Standard: Based on DIN 7

Brand: NoCor
Country of Origin: US

Alternatives: DOWM-050-020

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
