CCE-05500H-C (4 Pcs)

External Retaining Rings - 55x3x52 mm - Carbon Steel

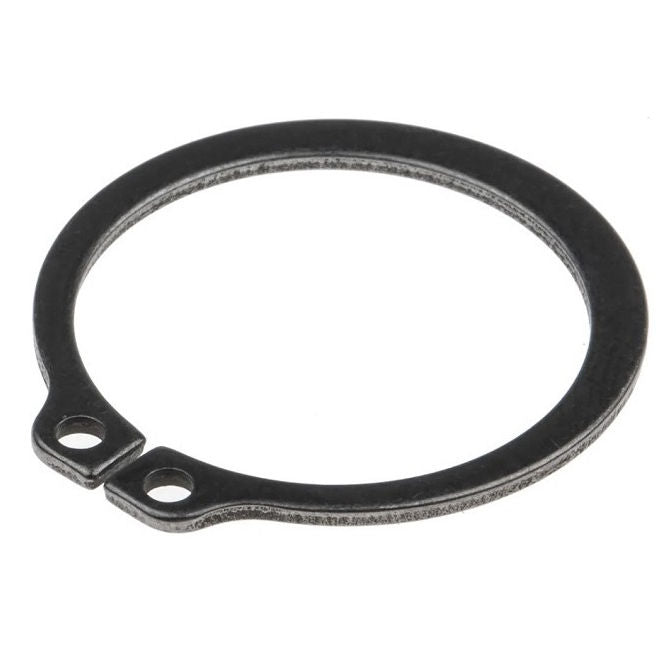

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Price:
$14.23 AUD
$17.07 AUD $14.23 AUD
per 4
Out Of Stock
Order 50 or more (200 pcs) for $12.81 AUD per 4
Pre-Order now! Backorders for more than the stock quantity are expected before Jun 19, 2025

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Circlips - Standard - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 442


Shaft Diameter (Ds): 55.00mm
(55.00mm is 2.165 in.)

Carbon Steel
  • Clip Thickness (T): 3.00mm
    + 0.00 / - 0.30
    (3.00mm is 0.118 in.)
  • Groove Dia. (Dg): 52.00mm
    + 0.00 / - 0.08
    (52.00mm is 2.047 in.)
  • Approx. Loose Circlip ID (A): 50.80mm
  • Groove Width (W): 3.15mm
  • Clearance on Shaft (C1): 73.00mm
  • Clearance in Groove (C1): 69.00mm
  • Min. Lug Diameter (h): 2.50mm
  • Min. Extension (n): 4.50
  • Standard: Heavy Duty Variation DIN471 table 2

Brand: MBA
Country of Origin: US

Alternative Parts Include: 90030A131, BN821-055, BN821055, AS055, AS55X3, AS-055, D1460055, D1460-055, D14600550, D1460-0550, D14600550APP, D1460-0550APP, 14600550APP, 14600550, 1460-0550APP, 1460-0550, EXT055, EXT-055, ALTPART, Seeger, Bossard, Ellison

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
