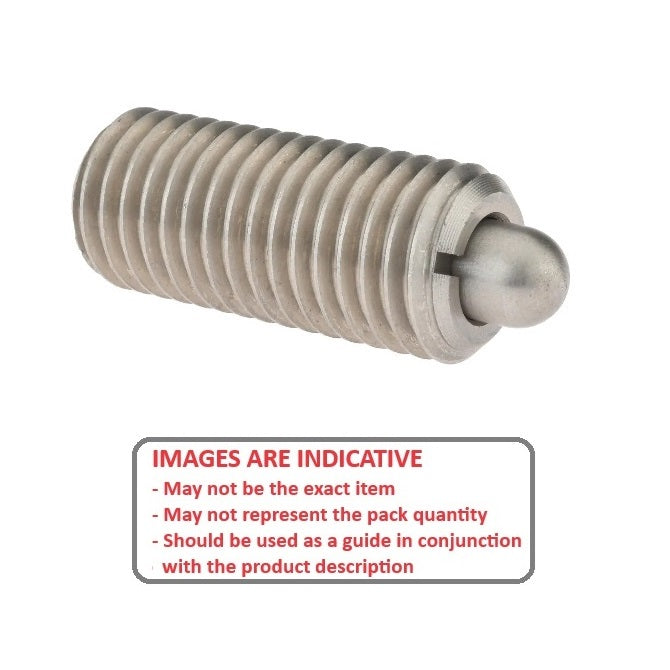

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
Skip to product information
1 of 3

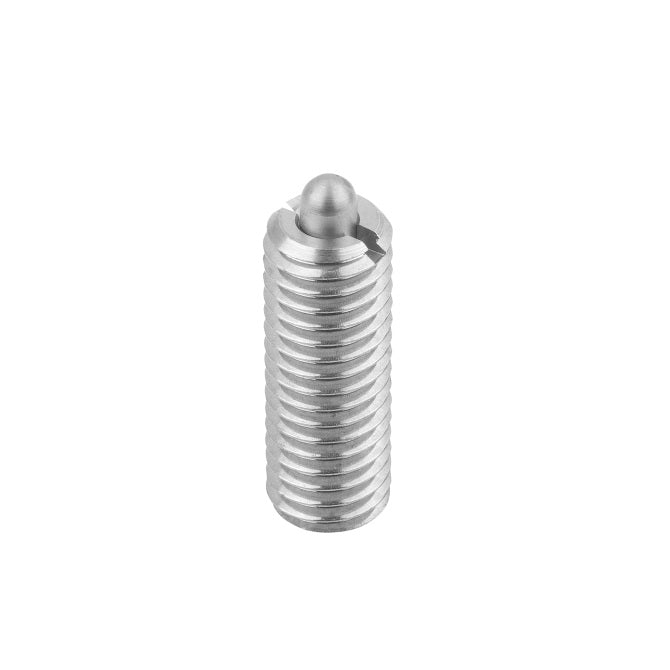

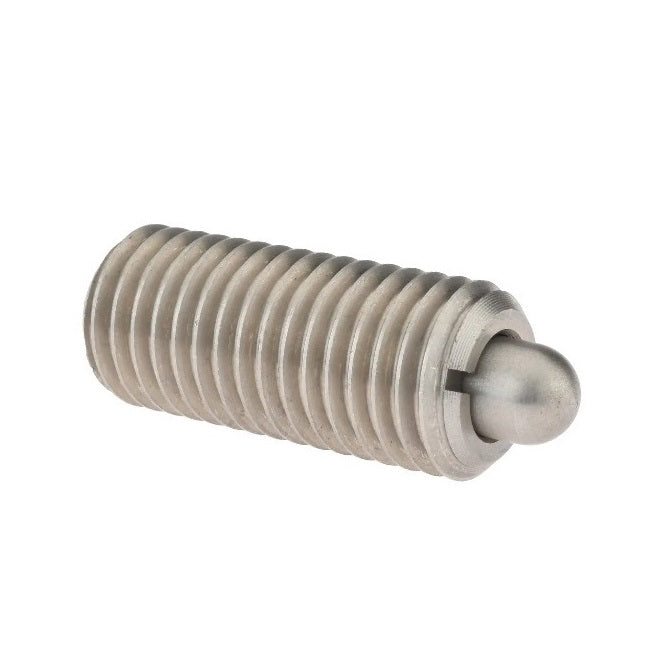

Plungers - 5/8-11 UNC (15.875mm) x 25 mm x 40 N
PLBT-159C-250-CS-080

MBA

Additional resources:
Spring Plungers
Push Fit Ball Plungers
Price:
Regular price $15.68 AUD
Regular price Sale price $15.68 AUD
Each
Out Of Stock
Order 50 or more for $14.11 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Dec 22, 2024

Base Category: Plungers - Ball Threaded

Top Level Category: Plungers - Ball Threaded - Steel Body - Stainless Ball

Product Details:

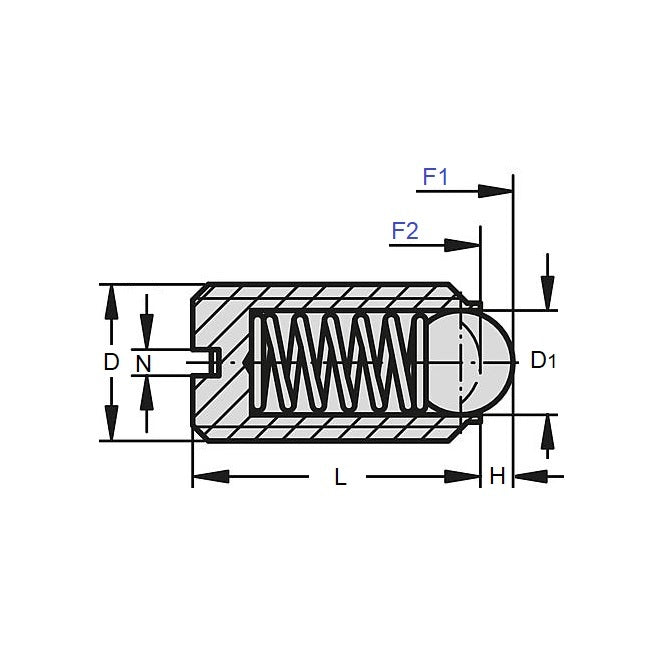

Thread Size (D): 5/8-11 UNC (15.875mm)mm
Steel Body with Stainless Ball
  • Body Length (L): 25.0mm
  • Initial Pressure (F1): 40.0N
  • Final Pressure (F2): 80.1N
  • Tip Diameter (D1): 9.5mm
  • Tip Length (H): 2.4mm
  • Drive: Slotted

Brand: MBA
Country of Origin: US

Alternatives: 3408A87, W-10

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
