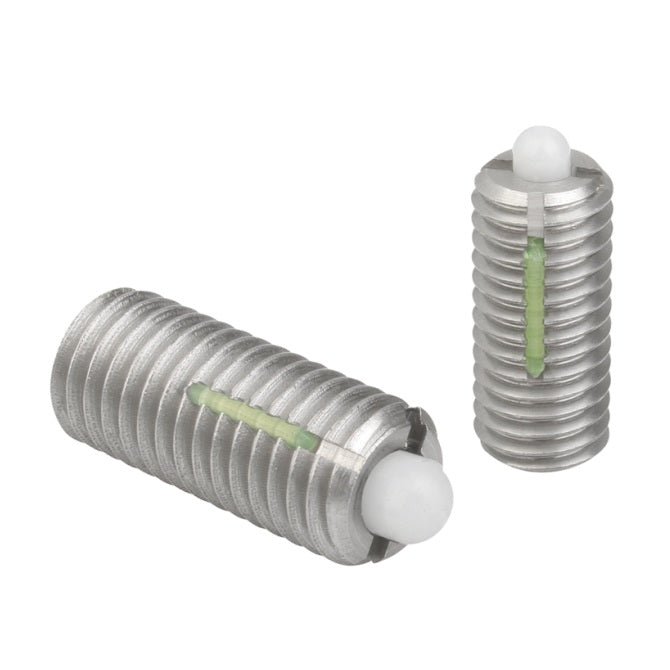

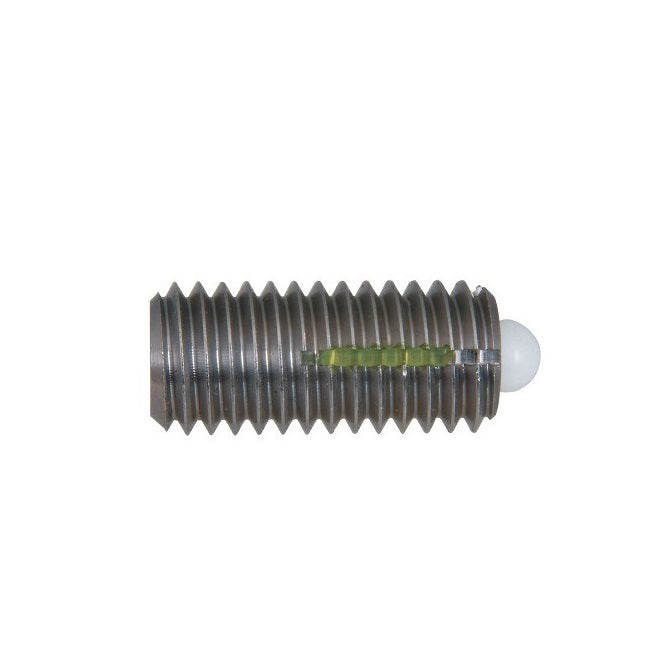

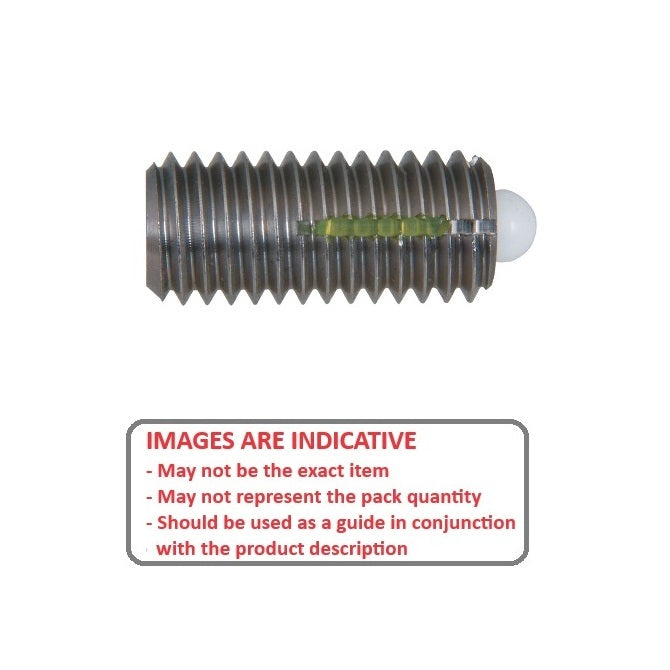

Plungers - 5/8-11 UNC (15.875mm) x 27 mm x 20 N
PLST-159C-270-AC-149 (125 Pcs)

MBA

Additional resources:
Threaded Ball Plungers
Push Fit Ball Plungers
Price:
Regular price $4,783.41 AUD
Regular price Sale price $4,783.41 AUD
per 125
Out Of Stock
Order 50 or more (6250 pcs) for $4,305.07 AUD per 125
Pre-Order now! Backorders for more than the stock quantity are expected before Dec 23, 2024

Base Category: Plungers - Spring

Top Level Category: Plungers - Spring - Threaded - Steel and Acetal

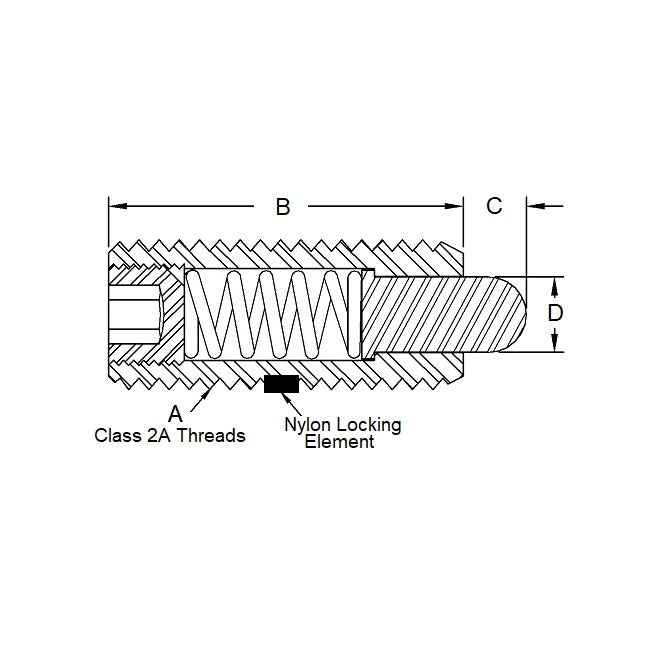

Product Details:

Thread Size (A): 5/8-11 UNC (15.875mm)
Steel Body with Acetal Nose
  • Body Length (B): 27.0mm
  • Initial Pressure (F1): 20.0N
  • Final Pressure (F2): 149.0N
  • Tip Diameter (D): 7.9mm
  • Tip Length (C): 7.9mm
  • Drive: Slotted

Brand: MBA
Country of Origin: US

Alternatives: 8499A881, NSP-16

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
