WRE-0470-LS (500 Pcs)

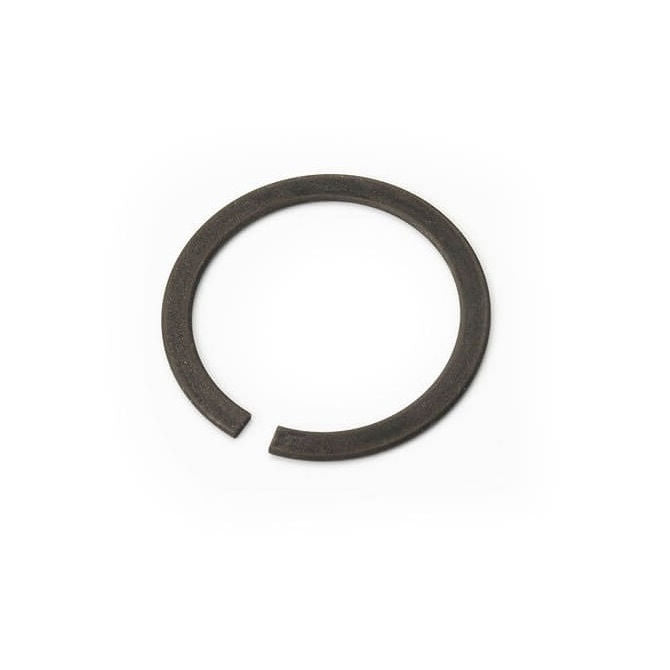

External Retaining Rings - 47x1.5x45.5 mm - Carbon Spring Steel

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Snap Rings and Spiral Rings PDF
Price:
$661.50 AUD
$793.80 AUD $661.50 AUD
per 500
Backorder
Order 50 or more (25000 pcs) for $595.35 AUD per 500
Backorder now! Backorders for more than the stock quantity are expected before Sep 13, 2025

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Snap Rings - Carbon Steel

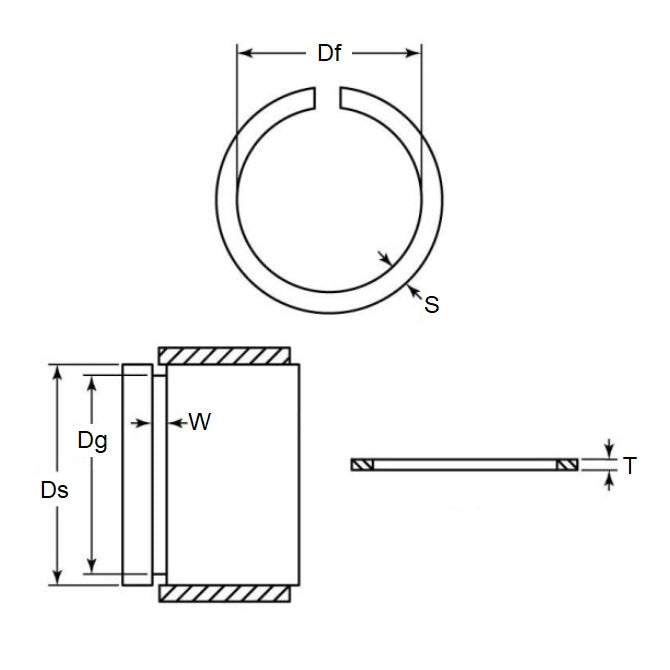

Product Details:

Shaft or Bearing OD (d1): 47.00mm
(47.00mm is 1.85 in.)

Carbon Spring Steel
  • Clip Thickness (T): 1.50mm
    + 0 / - 0.10
    (1.50mm is 0.059 in.)
  • Groove Dia. (Dg): 45.50mm
    + 0 / - 0.16
    (45.50mm is 1.791 in.)
  • Approx. Loose Circlip ID (A): 44.80mm
  • Radial Wall (S) min/max: 2.30mm
    + 0 / - 0.10
  • Groove Width (W): 1.60mm
  • Approx. Loose Clip OD: 49.4
  • Section Profile: Rectangular with Square Edge

Brand: MBA
Country of Origin: USA

Alternative Parts Include: WRE0470SQ, SW47, SW47A501-S, SW47A501S, DSW-047, DSW047, M24000470APP, M2400-0470APP, NoCor, Seeger

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
