MBA

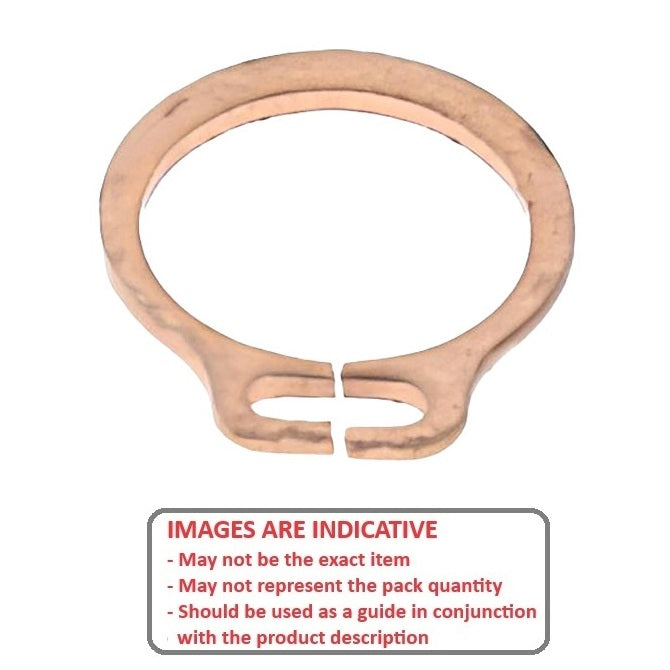

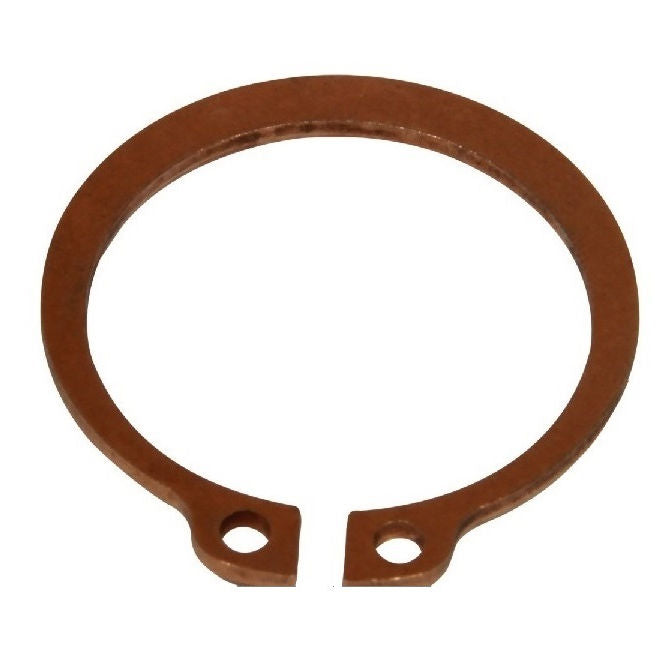

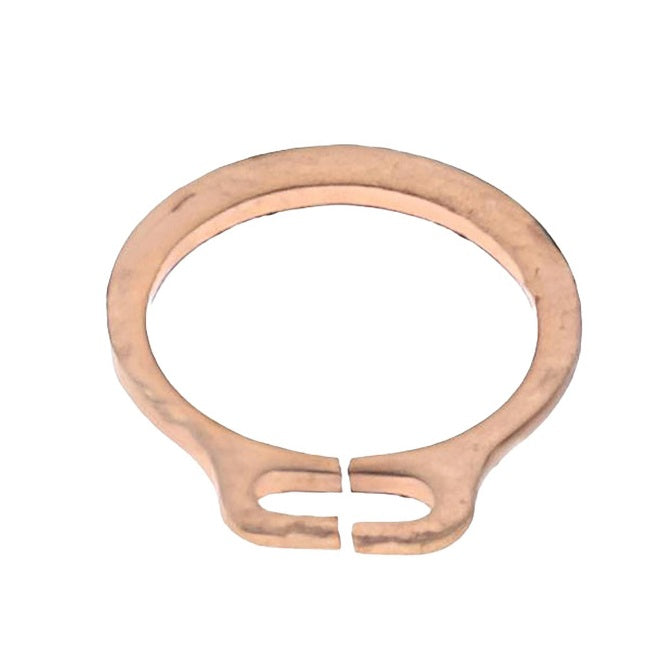

External Circlip 4.78 x 0.38 mm - Beryllium Copper - 4.78 Shaft - MBA (Pack of 20)

External Circlip 4.78 x 0.38 mm - Beryllium Copper - 4.78 Shaft - MBA (Pack of 20)

20 packs available now

Regular price $11.77 AUD
Regular price Sale price $11.77 AUD
Sale Sold out
Shipping calculated at checkout.
Price does not include taxes or shipping

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout.

Backorders for more than the stock quantity are expected before Sep 27, 2024

Product Details:

Item is a descriptive link for MBACCE00478B

External Circlip

Sub Category: Circlips - External - Standard - Berryllium Copper

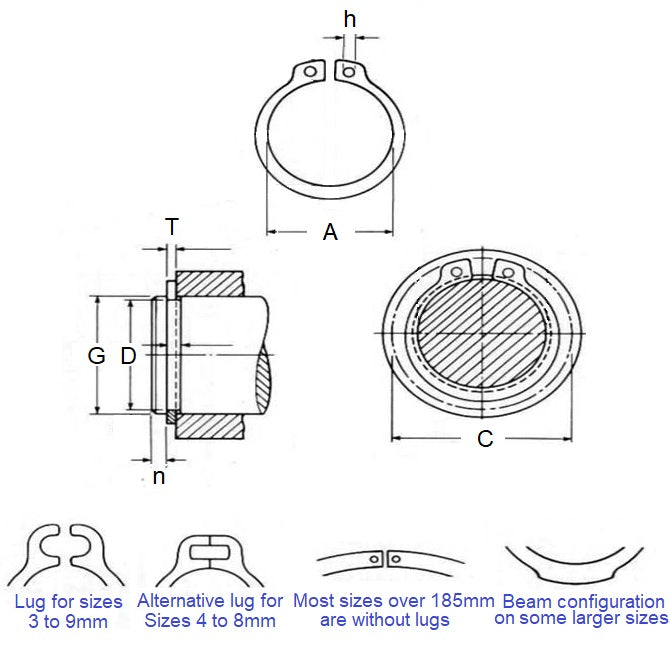

4.78 x 0.38mm

Shaft Diameter (Ds): 4.78mm
Clip Thickness (T): 0.38mm
+/-0.038

Groove Dia. (Dg): 4.45mm
+/-0.051

Loose Circlip ID (A): 4.27mm
Min. Extension (n): 0.56mm
Groove Width (W): 0.46mm
Clearance on Shaft (C1): 7.62mm
Clearance in Groove (C1): 7.26mm
Min. Lug Diameter (h): 0.58mm
Material: Beryllium Copper
Standard: MIL-16624

Brand: MBA
Country of Origin: USA

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
