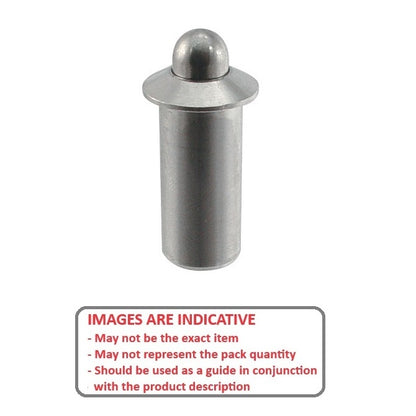

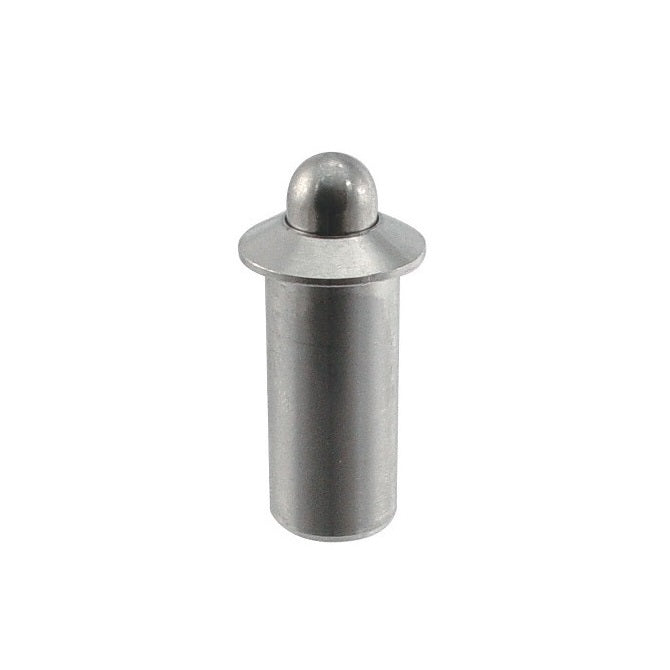

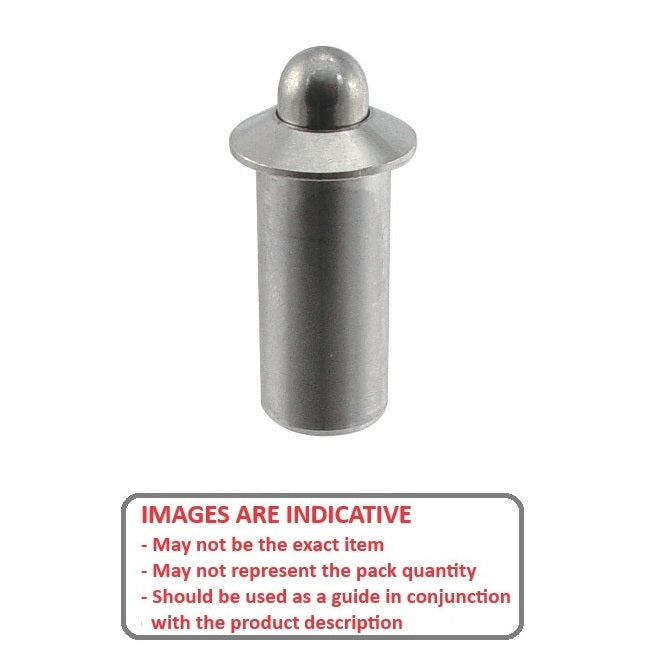

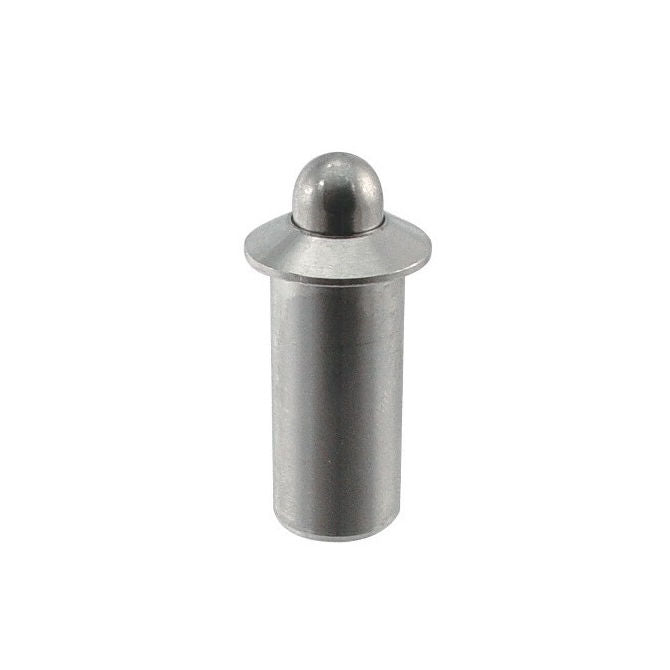

PLSP-040-100-S3-002 (Each)
Spring Push Fit Plungers - 4x10 mm - 0.6 N - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Plunger
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Threaded Ball Plungers
Push Fit Ball Plungers
Order 50 or more
for $4.55 AUD Each
5/32 inch Plunger - 4x10 mm - 0.6 N Spring Push Fit Plungers - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 - Sold per Each:
Base Category: Plungers - Spring Push Fit
Top Level Category: Plungers - Spring Push Fit - Stainless - Stainless Nose
Product Details

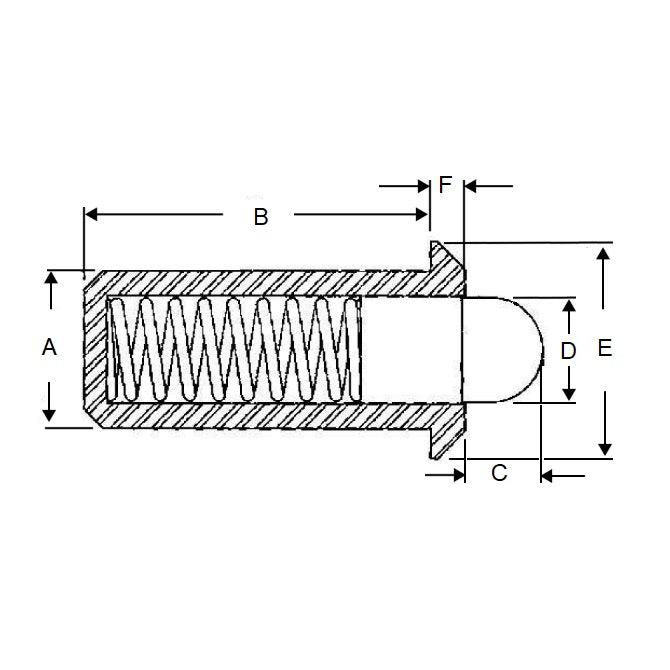

Body Diameter (A): 4.00mm+ 0.10 / - 0.00
(4.00mm is 0.157 in.)
Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
- Body Diameter (A): 4.00mm
+ 0.10 / - 0.00
(4.00mm is 0.157 in.)
- Body Length (B): 10.0mm
+ 0.00 / - 0.10
(10.0mm is 0.394 in.)
- Initial Pressure (F1): 0.60N
+ 0.00 / - 0.12 - Final Pressure (F2): 1.50N
- Tip Diameter (D): 3.00mm
- Tip Length (C): 3.00mm
- Spring Material: 304 Stainless
- Body Material: 303 Stainless
- Tip Shape: Flat head
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- Misumi® C-MPFS4-3
- Misumi® C-MPJS4-3
- CMPFS43
- CMPJS43
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PLSP040100S3002, PLSP040100
