KW-030-037-097-C (PK-10)

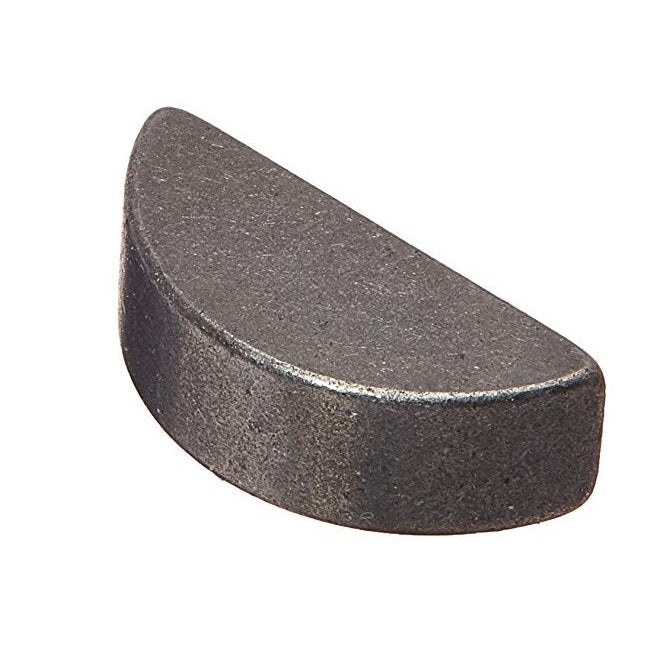

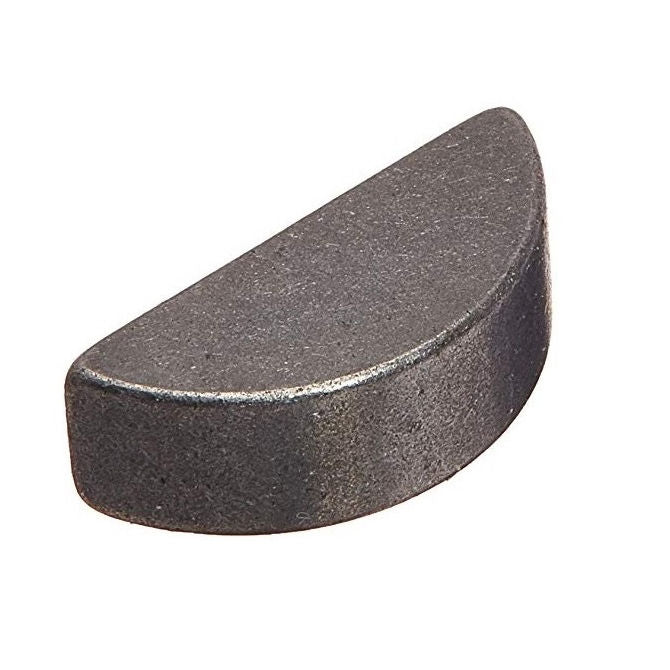

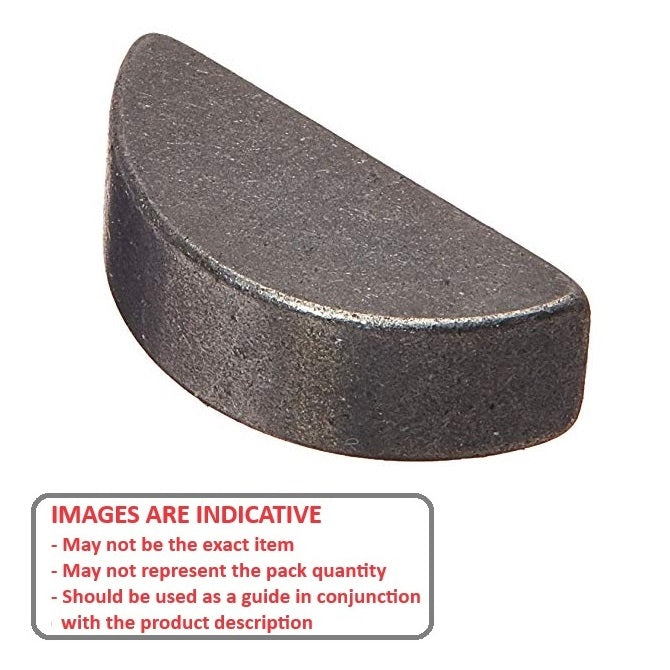

Woodruff Keys - 3x3.7x9.66 mm Plain - Carbon Steel C45 Key
ExaktKey
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportKeysteel Catalogue PDF
Order 50 or more packs of 10 (500 pcs)
for $7.25 AUD per 10 pack
Couldn't load pickup availability
3x3.7x9.66 mm Woodruff Keys - Carbon Steel C45 - Sold per pack of 10:
Base Category: Keys - Woodruff
Top Level Category: Keys - Woodruff - Plain
Product Details
Additional stock available from USA subject to Prior Sale = 2688

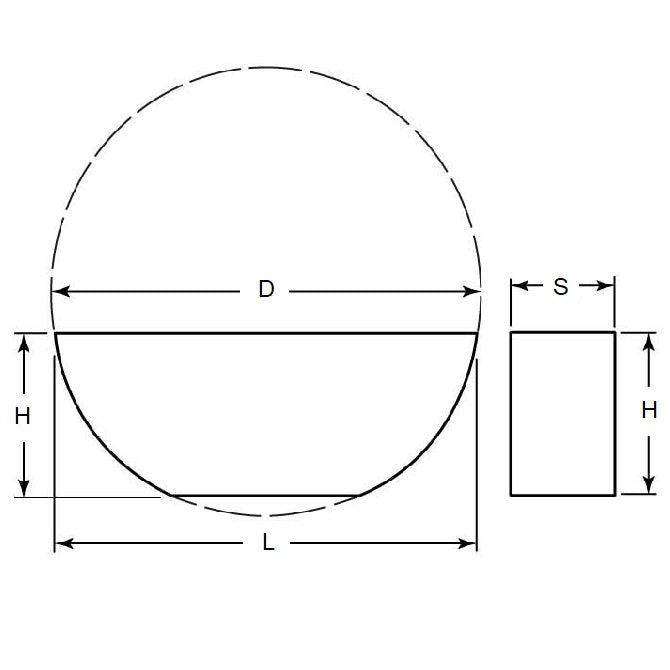

Thickness (S): 3.00mm
+/- 0.025
(3.00mm is 0.118 in.)
Carbon Steel C45
- Thickness (S): 3.00mm
+/- 0.025
(3.00mm is 0.118 in.)
- Approx. Height (H): 3.7mm
+/- 0.250
(3.7mm is 0.146 in.)
- Approx. Length (L): 9.66mm
(9.66mm is 0.38 in.)
- Basis Diameter (D): 10.00mm
- Finish: Plain
- Hardness: HRB 80
Brand: ExaktKey
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 98490A160
- NoCor® KU310
- Huyett® WKMC-030037
- NoCor® WKMC030037
- KW030100C
- KU3-10
- A9C49M03010
Used for
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
KW030037097C, KW030037
