KW-030-037-097-C - Datasheet

ExaktKey

Product Data

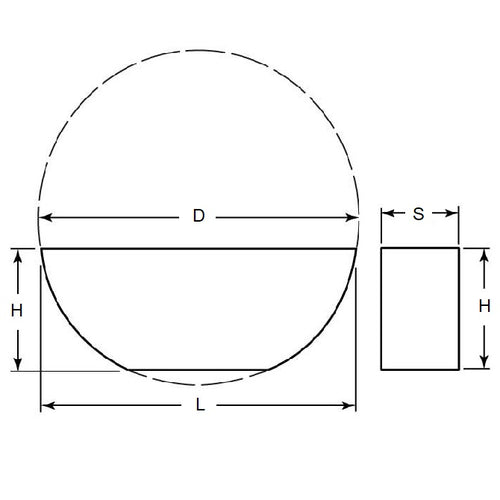

• Thickness (S) : 3.00 mm _{+/- 0.025}
  (Equiv. 0.118 in.)
• Approx. Height (H) 3.7 mm _{+/- 0.250}
  (Equiv. 0.146 in.)
• Approx. Length (L) 9.66 mm
• Basis Diameter (D) 10.00 mm
• Finish Plain
• Hardness HRB 80
• Material Carbon Steel C45

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Keysteel Catalogue PDF


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 98490A160
• NoCor® KU310
• Huyett® WKMC-030037
• NoCor® WKMC030037
• KW030100C
• KU3-10
• A9C49M03010
