MVI-0318-C2 (Each)

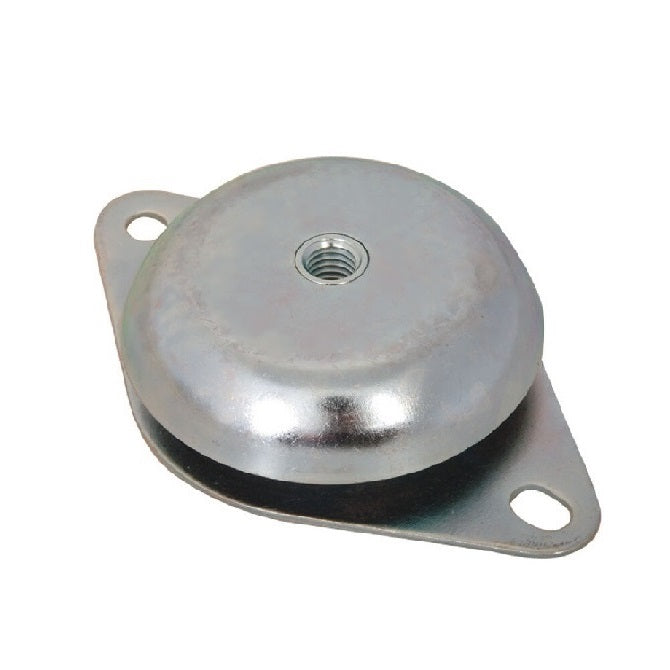

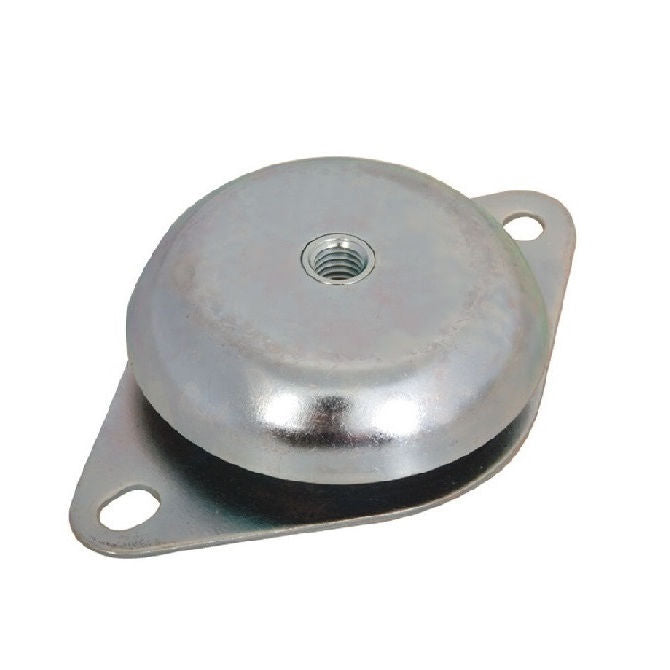

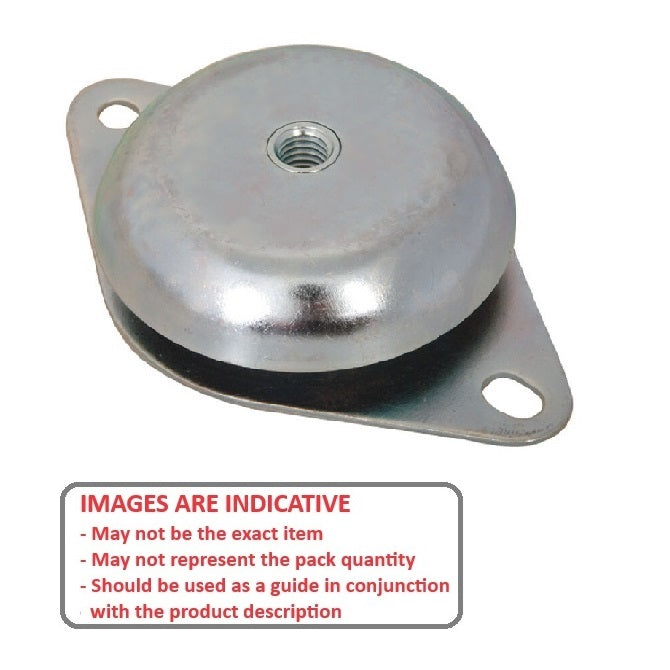

Vibration Isolation Mounts - 317 Kg - 204.1 Kg - 92.08 mm Cup Style 2 - Steel Mount
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Cylindrical Bobbin Mounts PDF Quick Guide
Order 50 or more
for $198.86 AUD Each
317 Kg - 204.1 Kg - 92.08 mm Vibration Isolation Mounts - Steel - Sold per Each:
Base Category: Mounts - Vibration Isolation
Top Level Category: Mounts - Vibration Isolation - Cup Style 2
Product Details

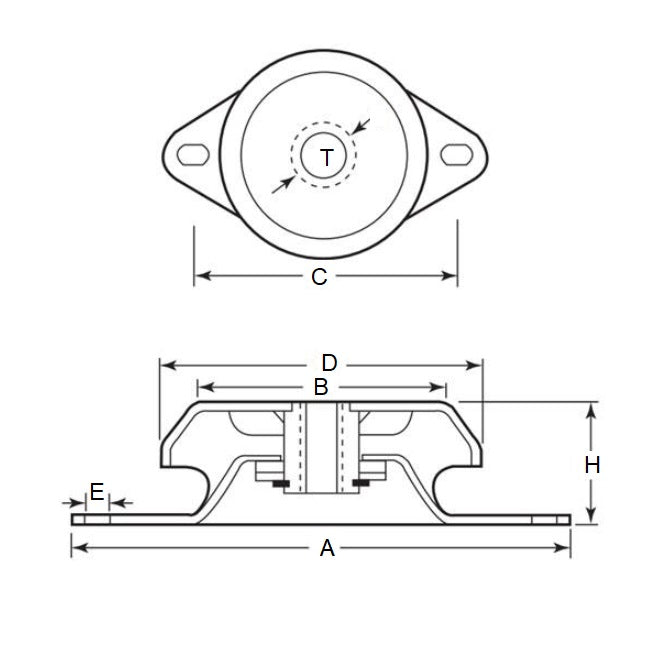

Non-Impact Load: 317KgSteel
- Non-Impact Load: 317Kg
- Impact Load: 204.1Kg
- Mount Diameter (D): 92.08mm
(92.08mm is 3.625 in.)
- Height (H): 34.93mm
- Thread Size: 1/2-13 UNC (12.70)
- Plate Diameter (B): 69.85mm
- Bolt Centres (C): 127.00mm
- Flange Length (A): 152.40mm
- Bolt Hole (E): 9.91mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® VP-42
- VP42
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
MVI0318C2, MVI0318
