Collection: Mounts - Vibration Isolation - Cup Style 2

Mounts (With Images)

Mounts - Vibration Isolation

Mounts - Vibration Isolation - Cup Style 2

4 Products in this selection

Industrial cupmounts provide excellent protection against severe impact shock, vibration and noise.
High vibration dampening. Fail safe, rugged interlocking metal and neoprene construction.
Metal cupmount is cold rolled steel. Low profile compact design. Metal top plate is domed shape to guard against oil contamination.
High grade neoprene elastomer provides resistance to ozone and oils.

Additional resources:
Cylindrical Bobbin Mounts PDF Quick Guide

Load Non-Impact Machinery	Load Impact Machinery	Mount Diameter (D)	Height (H)	Thread Size
181 Kg	113.4 Kg	92.08 mm	34.93 mm	1/2-13 UNC (12.70)
Material: Steel Plate Diameter (B): 69.85 mm Bolt Centres (C): 127.00 mm Flange Length (A): 152.40 mm Bolt Hole (E): 9.91 mm
Part Number: MVI-0181-C2 Mounts - 181 Kg x 113.4 Kg x 92.08 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Dec 21, 2024 Regular price $196.14 AUD Regular price Sale price $196.14 AUD Unit price per Each

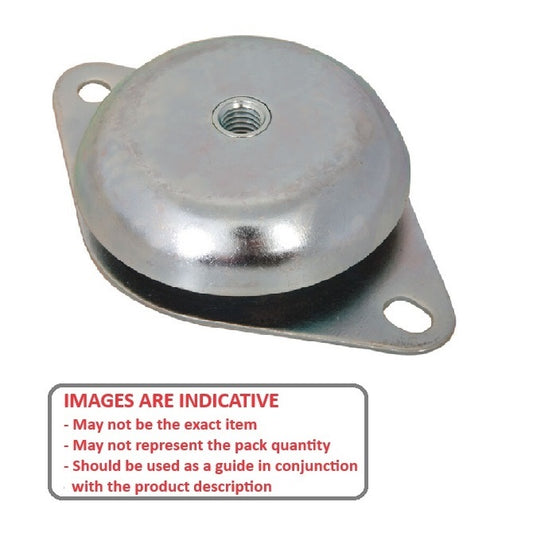

Load Non-Impact Machinery	Load Impact Machinery	Mount Diameter (D)	Height (H)	Indicative Image
181 Kg	113.4 Kg	92.08 mm	34.93 mm
Material: Steel Thread Size: 1/2-13 UNC (12.70) Plate Diameter (B): 69.85 mm Bolt Centres (C): 127.00 mm Flange Length (A): 152.40 mm Bolt Hole (E): 9.91 mm
Part Number: MVI-0181-C2 Mounts - 181 Kg x 113.4 Kg x 92.08 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Dec 21, 2024 Regular price $196.14 AUD Regular price Sale price $196.14 AUD Unit price per Each
MVI-0181-C2 --- Mounts - 181 Kg x 113.4 Kg x 92.08 mm Steel MVI-0181-C2 --- Mounts - 181 Kg x 113.4 Kg x 92.08 mm Steel Regular price $196.14 AUD Regular price Sale price $196.14 AUD Unit price per Out of stock! Backorder Now
317 Kg	204.1 Kg	92.08 mm	34.93 mm	1/2-13 UNC (12.70)
Material: Steel Plate Diameter (B): 69.85 mm Bolt Centres (C): 127.00 mm Flange Length (A): 152.40 mm Bolt Hole (E): 9.91 mm
Part Number: MVI-0318-C2 Mounts - 317 Kg x 204.1 Kg x 92.08 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Dec 21, 2024 Regular price $198.14 AUD Regular price Sale price $198.14 AUD Unit price per Each
317 Kg	204.1 Kg	92.08 mm	34.93 mm
Material: Steel Thread Size: 1/2-13 UNC (12.70) Plate Diameter (B): 69.85 mm Bolt Centres (C): 127.00 mm Flange Length (A): 152.40 mm Bolt Hole (E): 9.91 mm
Part Number: MVI-0318-C2 Mounts - 317 Kg x 204.1 Kg x 92.08 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Dec 21, 2024 Regular price $198.14 AUD Regular price Sale price $198.14 AUD Unit price per Each
MVI-0318-C2 --- Mounts - 317 Kg x 204.1 Kg x 92.08 mm Steel MVI-0318-C2 --- Mounts - 317 Kg x 204.1 Kg x 92.08 mm Steel Regular price $198.14 AUD Regular price Sale price $198.14 AUD Unit price per Out of stock! Backorder Now
635 Kg	408.2 Kg	131.76 mm	42.86 mm	5/8-11 UNC (15.88mm)
Material: Steel Plate Diameter (B): 101.60 mm Bolt Centres (C): 161.93 mm Flange Length (A): 195.26 mm Bolt Hole (E): 13.97 mm
Part Number: MVI-0635-C2 Mounts - 635 Kg x 408.2 Kg x 131.76 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Dec 21, 2024 Regular price $296.50 AUD Regular price Sale price $296.50 AUD Unit price per Each
635 Kg	408.2 Kg	131.76 mm	42.86 mm
Material: Steel Thread Size: 5/8-11 UNC (15.88mm) Plate Diameter (B): 101.60 mm Bolt Centres (C): 161.93 mm Flange Length (A): 195.26 mm Bolt Hole (E): 13.97 mm
Part Number: MVI-0635-C2 Mounts - 635 Kg x 408.2 Kg x 131.76 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Dec 21, 2024 Regular price $296.50 AUD Regular price Sale price $296.50 AUD Unit price per Each
MVI-0635-C2 --- Mounts - 635 Kg x 408.2 Kg x 131.76 mm Steel MVI-0635-C2 --- Mounts - 635 Kg x 408.2 Kg x 131.76 mm Steel Regular price $296.50 AUD Regular price Sale price $296.50 AUD Unit price per Out of stock! Backorder Now
1179 Kg	771.1 Kg	131.76 mm	42.86 mm	5/8-11 UNC (15.88mm)
Material: Steel Plate Diameter (B): 101.60 mm Bolt Centres (C): 161.93 mm Flange Length (A): 195.26 mm Bolt Hole (E): 13.97 mm
Part Number: MVI-1179-C2 Mounts - 1179 Kg x 771.1 Kg x 131.76 mm Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Dec 21, 2024 Regular price $271.23 AUD Regular price Sale price $271.23 AUD Unit price per Each
1179 Kg	771.1 Kg	131.76 mm	42.86 mm
Material: Steel Thread Size: 5/8-11 UNC (15.88mm) Plate Diameter (B): 101.60 mm Bolt Centres (C): 161.93 mm Flange Length (A): 195.26 mm Bolt Hole (E): 13.97 mm
Part Number: MVI-1179-C2 Mounts - 1179 Kg x 771.1 Kg x 131.76 mm Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Dec 21, 2024 Regular price $271.23 AUD Regular price Sale price $271.23 AUD Unit price per Each
MVI-1179-C2 --- Mounts - 1179 Kg x 771.1 Kg x 131.76 mm Steel MVI-1179-C2 --- Mounts - 1179 Kg x 771.1 Kg x 131.76 mm Steel Regular price $271.23 AUD Regular price Sale price $271.23 AUD Unit price per Out of stock! Backorder Now
