CCE-03016-CZY (PK-200)

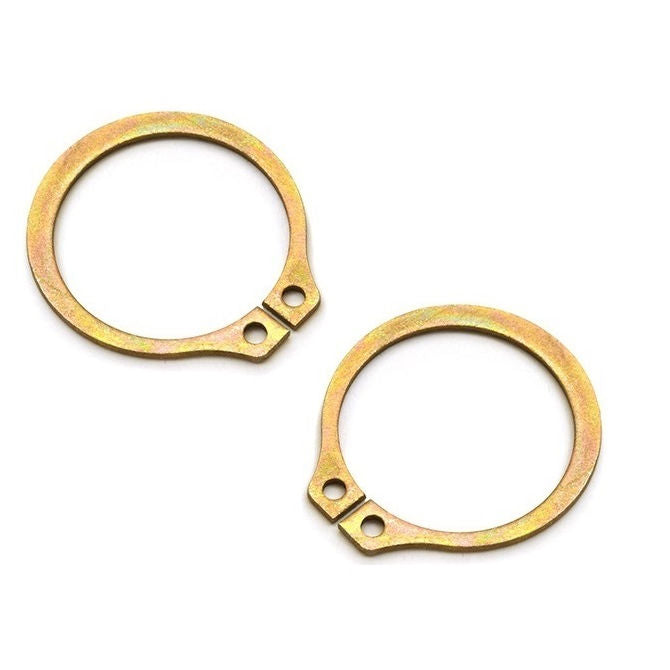

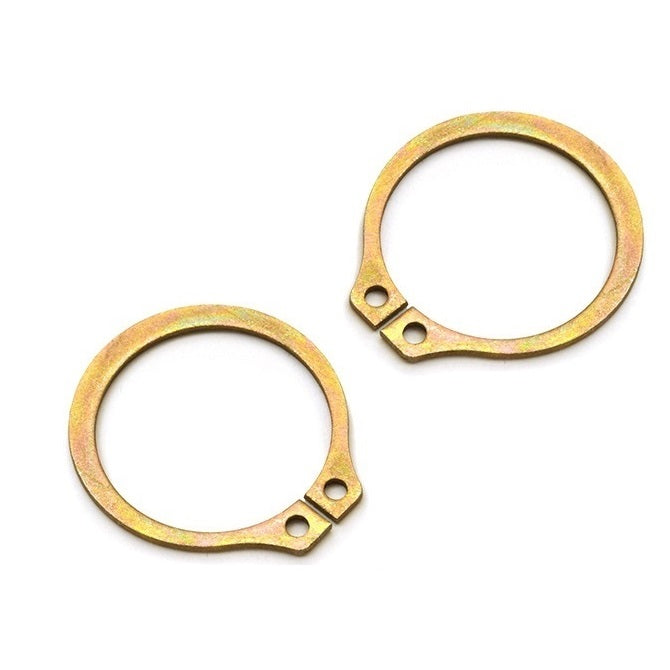

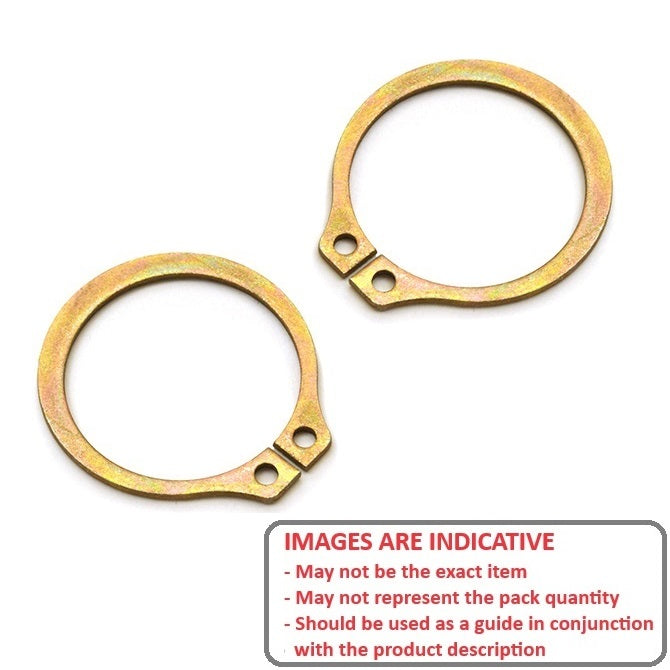

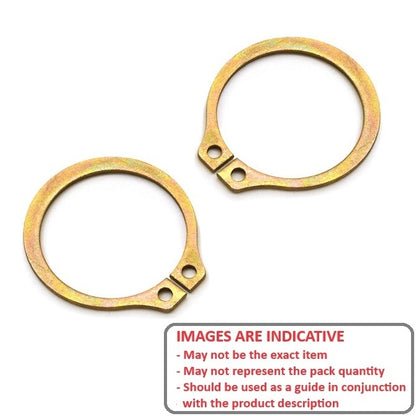

External Retaining Rings - 30.16x1.27x28.4 mm Circlips - Carbon Steel Zinc Plated Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 200 (10000 pcs)
for $237.65 AUD per 200 pack
1-3/16 inch Circlip - 30.16x1.27x28.4 mm External Retaining Rings - Carbon Steel Zinc Plated - Sold per pack of 200:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Zinc Plated
Product Details
Additional stock available from USA subject to Prior Sale = 2577
Shaft Diameter (Ds): 30.16mm
(30.16mm is 1.187 in.)
Carbon Steel Zinc Plated
- Shaft Diameter (Ds): 30.16mm
(30.16mm is 1.187 in.)
- Clip Thickness (T): 1.27mm
+/- 0.051
(1.27mm is 0.05 in.)
- Groove Dia. (Dg): 28.40mm
+/- 0.102
(28.40mm is 1.118 in.)
- Approx. Loose Circlip ID (A): 27.90mm
- Groove Width (W): 1.40mm
- Standard: MIL-16624
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 98410A144
- Huyett® SH-118-ZD
- NoCor® SH-118-ZD
- SH118ZD
- N14000118AZD
- N1400-0118AZD
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCE03016CZY, CCE03016
