Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

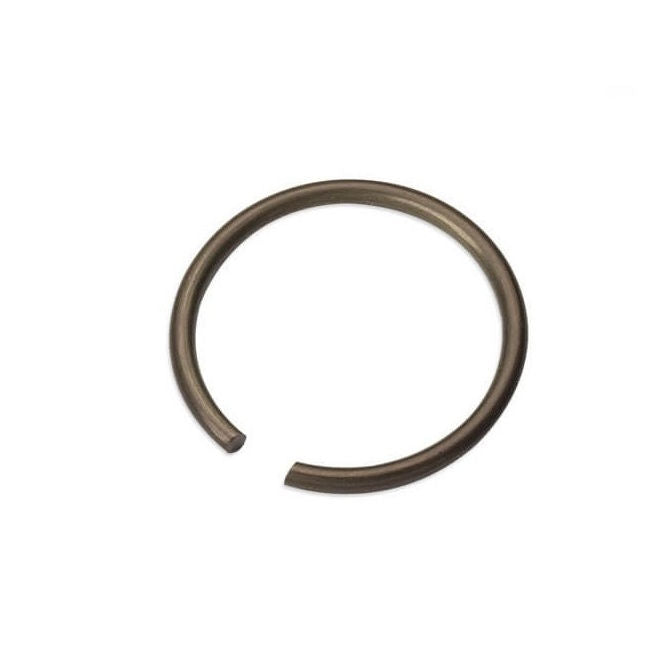

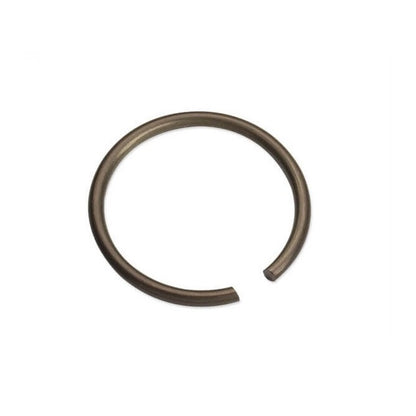

Circlips - 26 mm x 2 mm x 23.7 mm
WRE-0260-RD (50 Pcs)

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Snap Rings
Price:
$16.77 AUD
$16.77 AUD
per 50
Out Of Stock
Order 50 or more (2500 pcs) for $15.09 AUD per 50
Pre-Order now! Backorders for more than the stock quantity are expected before Jan 18, 2025

Base Category: Wire Rings - External

Top Level Category: Wire Rings - External - Round Section

Product Details:

Additional stock available from USA subject to Prior Sale = 255

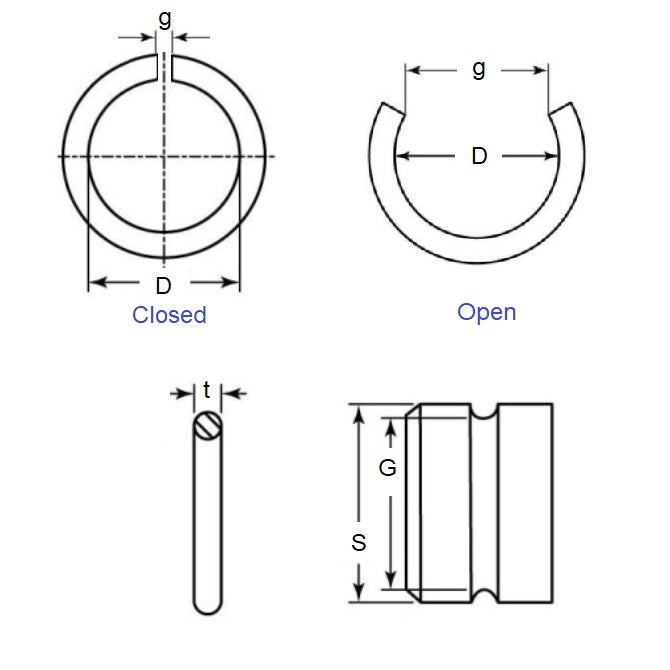

Shaft Diameter (Ds): 26.00mm
Spring Steel
  • Wire Thickness (t): 2.00mm
  • Free Inside Diameter (D): 23.7mm
    +0/-0.50
  • Free Outside Dia (Dr): 27.7mm
  • Groove Dia. (G): 24.0mm
    +/-0.10
  • Groove Width (W): 2.2
    Min.
  • Section Profile: Round Section

Brand: MBA
Country of Origin: USA

Alternatives: DRP-026, WRE0260RD

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
