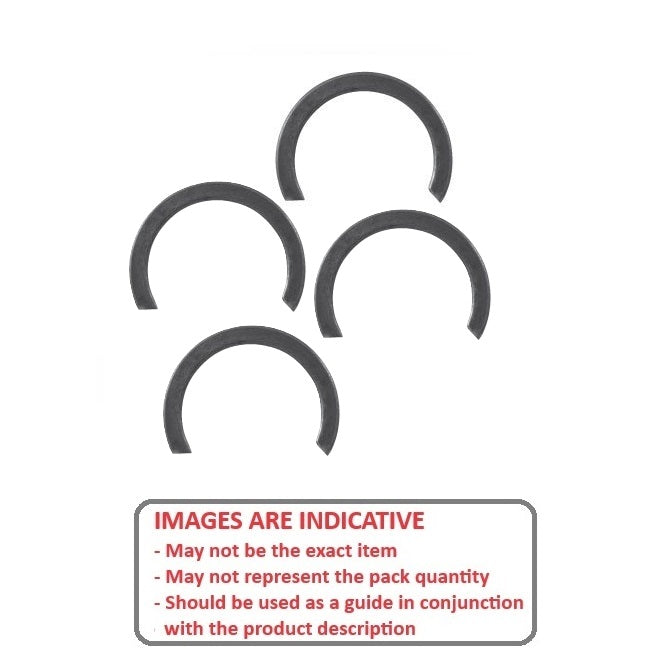

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 1

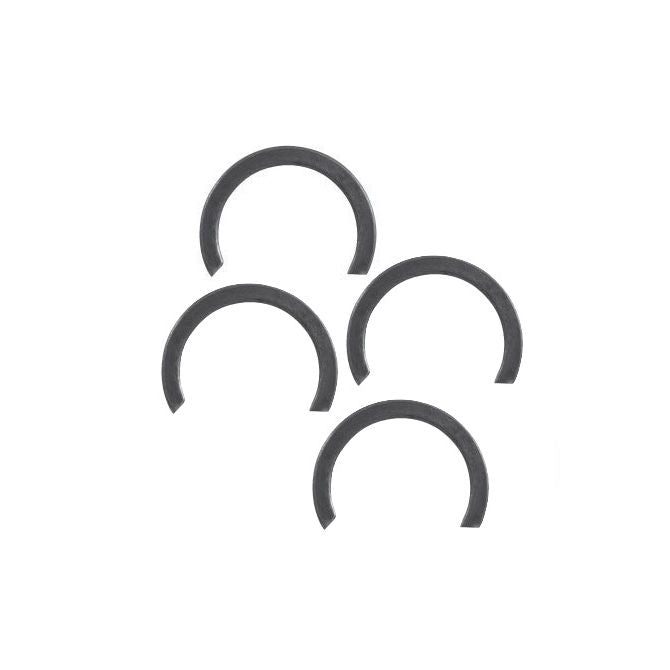

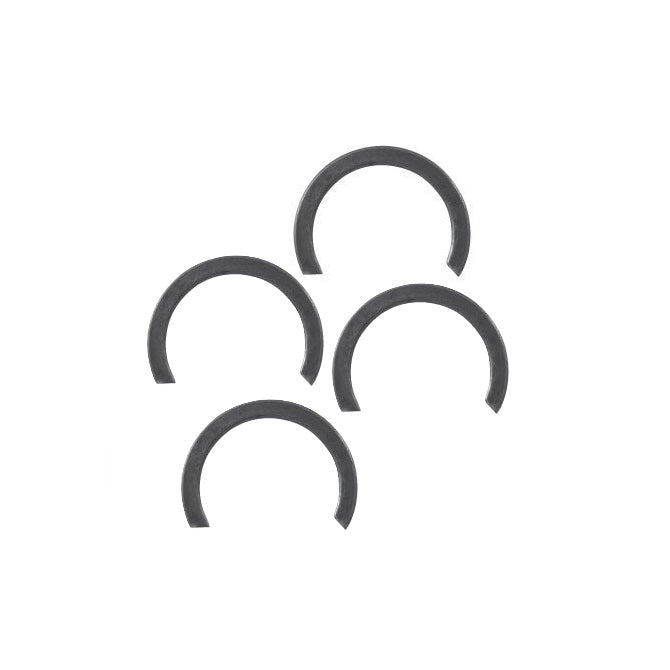

Ring - 25.4 mm x 3.18 mm x 29.96 mm
WRE-0254-SQ-HO (50 Pcs)

MBA

Additional resources:
Spiral Rings
Wire Rings
Snap Rings and Spiral Rings PDF
Price:
$83.50 AUD
$83.50 AUD
per 50
Out Of Stock
Order 50 or more (2500 pcs) for $75.15 AUD per 50
Pre-Order now! Backorders for more than the stock quantity are expected before Jan 03, 2025

Base Category: Snap Rings - External

Top Level Category: Snap Rings - External - Basic - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 3850

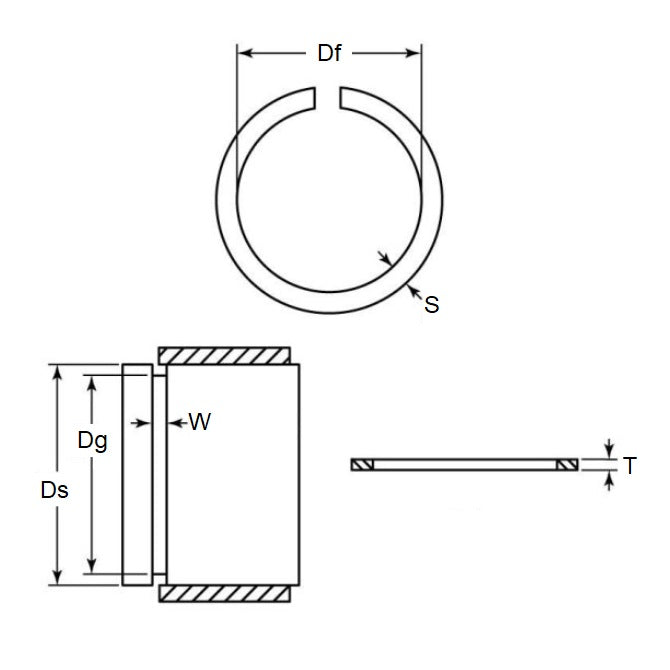

Shaft or Bearing OD (d1): 25.40mm
Spring Steel
  • Clip Thickness (s): 3.18mm
    +/-0.05
  • Approx. Free OD: 29.96mm
  • Free ID Max (d3): 23.60mm
    +0.00/-0.90
  • Section (b): 3.18mm
    +/-0.05
  • Groove Dia. (d2): 23.83mm
    +0.08/-0.00
  • Groove Width (m): 3.38
    +/-0.05
  • Spring Steel
  • Info: Radial Assembly - Open Gap
  • Section Profile: Square Section

Brand: MBA
Country of Origin: DE

Alternatives: 400-239, A0600-239, CSO-239, WRE0254SQHO, XSO-239

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
