CSN-0254-025 (Each)

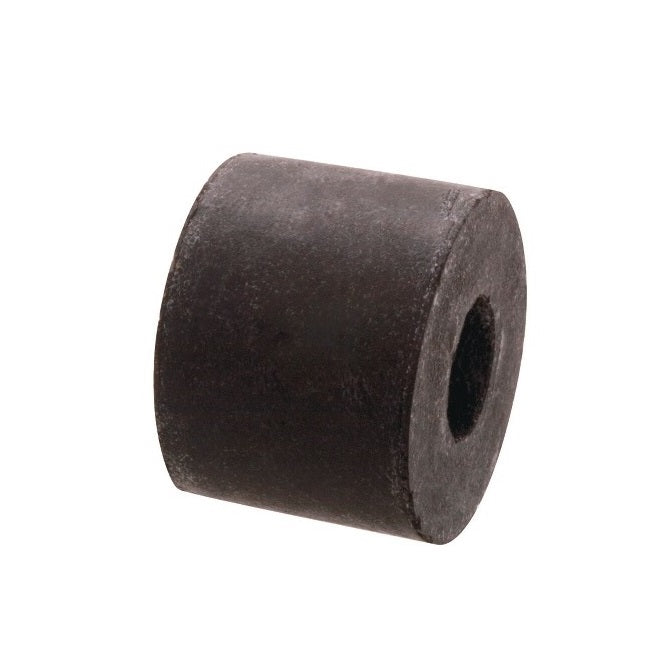

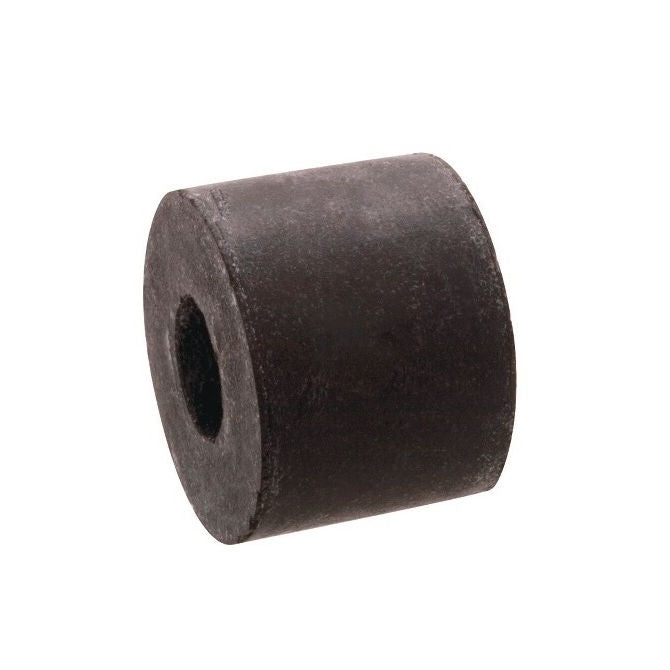

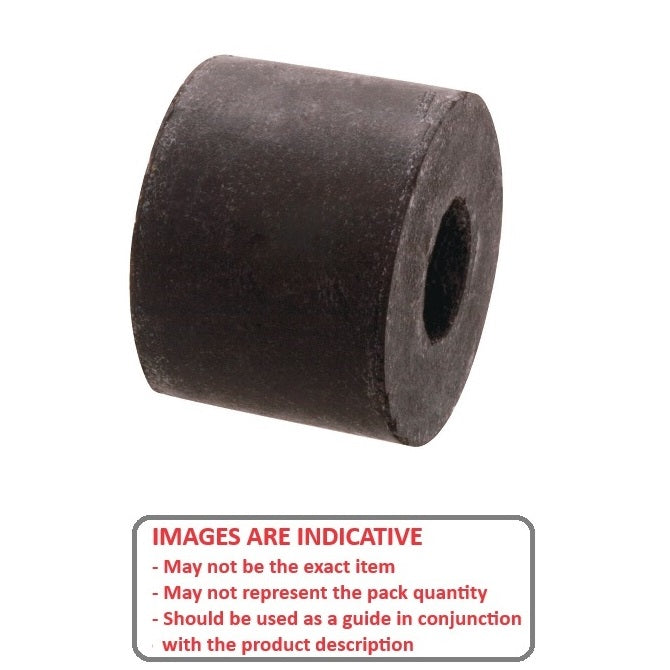

Bumpers Mounts - 25.4x10.4x25.4 mm Neoprene Springs - Neoprene Rubber Spring
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportSpings Catalogue PDF
Order 50 or more
for $32.11 AUD Each
1x1 inch Spring - 25.4x10.4x25.4 mm Bumpers Mounts - Neoprene Rubber - Sold per Each:
Base Category: Mounts - Bumpers
Top Level Category: Mounts - Bumpers - Neoprene Springs
Product Details

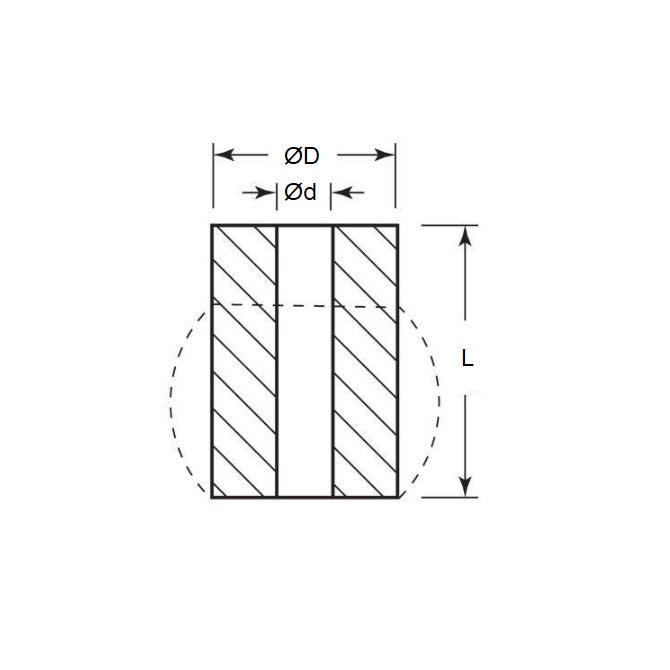

Outside Diameter (A): 25.40mm(25.40mm is 1 in.)
Neoprene Rubber
- Outside Diameter (A): 25.40mm
(25.40mm is 1 in.)
- Inside Diameter (B): 10.4mm
(10.4mm is 0.409 in.)
- Free Length (L): 25.4mm
(25.4mm is 1 in.)
- Spring Rate: 104.7N/mm Deflection
+/- 20 Perc
- Max. Rec. Deflection: 8.89mm
- Approx. Load at Max Deflection: 78.0Kg
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® BES-3521
- BES3521
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
