Mounts - Bumpers - Neoprene Springs

Mounts -> Bumpers -> Neoprene Springs

There are 25 products in the sub-categories of Mounts - Bumpers - Neoprene Springs. Scroll down or follow the link to Mounts - Bumpers - Neoprene Springs in the products table to see all these items combined into a handy table with filters.

Category Details

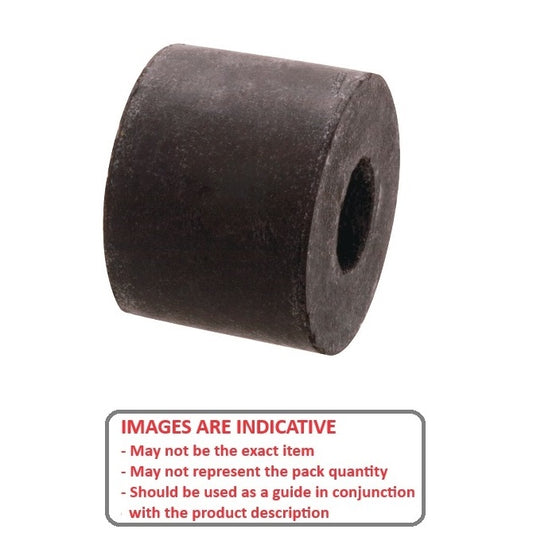

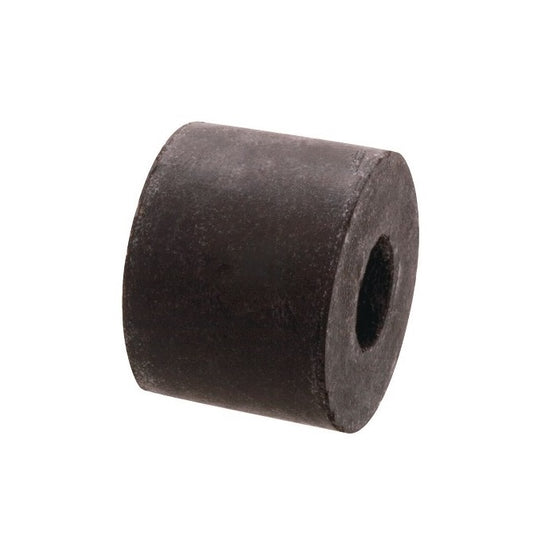

A selection of Neoprene Springs Bumpers Mounts. Neoprene elastomer springs have proven to be the safest, most efficient material for punching, stamping and drawing dies.

  • An expanded range may be available on special order. Please enquire.
  • Major advantages include high loads, increased durability, better performance, no maintenance and long life.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Bumpers - Neoprene Springs category on the Small Parts & Bearings online store.
Outside Diameter (A) Inside Diameter (B) Free Length (L) Spring Rate Max. Rec. Deflection Approx. Load at Max Deflection Indicative
Bumpers Mounts - 16x6.4x11.9 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
16.00
mm

(Equiv. 0.63 in.)
Inside Diameter (B)
6.4
mm

(Equiv. 0.252 in.)
Free Length (L)
11.9
mm

(Equiv. 0.469 in.)
Spring Rate
76.4
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
4.32
mm
Approx. Load at Max Deflection
26.9
Kg
Bumpers Mounts - 16x6.4x11.9 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0160-012 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$35.32 AUD
$42.38 AUD $35.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Outside Diameter (A) Inside Diameter (B) Free Length (L) Spring Rate Indicative
Bumpers Mounts - 16x6.4x11.9 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
16.00
mm

(Equiv. 0.63 in.)
Inside Diameter (B)
6.4
mm

(Equiv. 0.252 in.)
Free Length (L)
11.9
mm

(Equiv. 0.469 in.)
Spring Rate
76.4
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 16x6.4x11.9 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 4.32 mm    Approx. Load at Max Deflection: 26.9 Kg
Part Number: CSN-0160-012 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$35.32 AUD
$42.38 AUD $35.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 16x6.4x15.9 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
16.00
mm

(Equiv. 0.63 in.)
Inside Diameter (B)
6.4
mm

(Equiv. 0.252 in.)
Free Length (L)
15.9
mm

(Equiv. 0.626 in.)
Spring Rate
61.8
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
5.59
mm
Approx. Load at Max Deflection
28.7
Kg
Bumpers Mounts - 16x6.4x15.9 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0160-016 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$39.77 AUD
$47.73 AUD $39.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 16x6.4x15.9 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
16.00
mm

(Equiv. 0.63 in.)
Inside Diameter (B)
6.4
mm

(Equiv. 0.252 in.)
Free Length (L)
15.9
mm

(Equiv. 0.626 in.)
Spring Rate
61.8
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 16x6.4x15.9 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 5.59 mm    Approx. Load at Max Deflection: 28.7 Kg
Part Number: CSN-0160-016 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$39.77 AUD
$47.73 AUD $39.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 16x6.4x19.8 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
16.00
mm

(Equiv. 0.63 in.)
Inside Diameter (B)
6.4
mm

(Equiv. 0.252 in.)
Free Length (L)
19.8
mm

(Equiv. 0.78 in.)
Spring Rate
51.1
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
6.86
mm
Approx. Load at Max Deflection
29.9
Kg
Bumpers Mounts - 16x6.4x19.8 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0160-020 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$48.32 AUD
$57.98 AUD $48.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 16x6.4x19.8 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
16.00
mm

(Equiv. 0.63 in.)
Inside Diameter (B)
6.4
mm

(Equiv. 0.252 in.)
Free Length (L)
19.8
mm

(Equiv. 0.78 in.)
Spring Rate
51.1
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 16x6.4x19.8 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 6.86 mm    Approx. Load at Max Deflection: 29.9 Kg
Part Number: CSN-0160-020 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$48.32 AUD
$57.98 AUD $48.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 16x6.4x25.4 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
16.00
mm

(Equiv. 0.63 in.)
Inside Diameter (B)
6.4
mm

(Equiv. 0.252 in.)
Free Length (L)
25.4
mm

(Equiv. 1 in.)
Spring Rate
41.3
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
8.64
mm
Approx. Load at Max Deflection
31.0
Kg
Bumpers Mounts - 16x6.4x25.4 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0160-025 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$46.50 AUD
$55.80 AUD $46.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 16x6.4x25.4 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
16.00
mm

(Equiv. 0.63 in.)
Inside Diameter (B)
6.4
mm

(Equiv. 0.252 in.)
Free Length (L)
25.4
mm

(Equiv. 1 in.)
Spring Rate
41.3
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 16x6.4x25.4 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 8.64 mm    Approx. Load at Max Deflection: 31.0 Kg
Part Number: CSN-0160-025 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$46.50 AUD
$55.80 AUD $46.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 20x8.4x15.9 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
20.00
mm

(Equiv. 0.787 in.)
Inside Diameter (B)
8.4
mm

(Equiv. 0.331 in.)
Free Length (L)
15.9
mm

(Equiv. 0.626 in.)
Spring Rate
106.8
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
5.59
mm
Approx. Load at Max Deflection
49.6
Kg
Bumpers Mounts - 20x8.4x15.9 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0200-016 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$42.50 AUD
$51.00 AUD $42.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 20x8.4x15.9 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
20.00
mm

(Equiv. 0.787 in.)
Inside Diameter (B)
8.4
mm

(Equiv. 0.331 in.)
Free Length (L)
15.9
mm

(Equiv. 0.626 in.)
Spring Rate
106.8
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 20x8.4x15.9 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 5.59 mm    Approx. Load at Max Deflection: 49.6 Kg
Part Number: CSN-0200-016 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$42.50 AUD
$51.00 AUD $42.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 20x8.4x19.8 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
20.00
mm

(Equiv. 0.787 in.)
Inside Diameter (B)
8.4
mm

(Equiv. 0.331 in.)
Free Length (L)
19.8
mm

(Equiv. 0.78 in.)
Spring Rate
84.4
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
7.11
mm
Approx. Load at Max Deflection
49.3
Kg
Bumpers Mounts - 20x8.4x19.8 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0200-020 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$56.95 AUD
$68.35 AUD $56.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 20x8.4x19.8 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
20.00
mm

(Equiv. 0.787 in.)
Inside Diameter (B)
8.4
mm

(Equiv. 0.331 in.)
Free Length (L)
19.8
mm

(Equiv. 0.78 in.)
Spring Rate
84.4
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 20x8.4x19.8 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 7.11 mm    Approx. Load at Max Deflection: 49.3 Kg
Part Number: CSN-0200-020 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$56.95 AUD
$68.35 AUD $56.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 20x8.4x25.4 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
20.00
mm

(Equiv. 0.787 in.)
Inside Diameter (B)
8.4
mm

(Equiv. 0.331 in.)
Free Length (L)
25.4
mm

(Equiv. 1 in.)
Spring Rate
66.7
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
8.89
mm
Approx. Load at Max Deflection
49.6
Kg
Bumpers Mounts - 20x8.4x25.4 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0200-025 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$47.50 AUD
$57.00 AUD $47.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 20x8.4x25.4 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
20.00
mm

(Equiv. 0.787 in.)
Inside Diameter (B)
8.4
mm

(Equiv. 0.331 in.)
Free Length (L)
25.4
mm

(Equiv. 1 in.)
Spring Rate
66.7
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 20x8.4x25.4 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 8.89 mm    Approx. Load at Max Deflection: 49.6 Kg
Part Number: CSN-0200-025 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$47.50 AUD
$57.00 AUD $47.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 20x8.4x31.8 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
20.00
mm

(Equiv. 0.787 in.)
Inside Diameter (B)
8.4
mm

(Equiv. 0.331 in.)
Free Length (L)
31.8
mm

(Equiv. 1.252 in.)
Spring Rate
50.3
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
11.18
mm
Approx. Load at Max Deflection
47.0
Kg
Bumpers Mounts - 20x8.4x31.8 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0200-032 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$45.86 AUD
$55.04 AUD $45.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 20x8.4x31.8 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
20.00
mm

(Equiv. 0.787 in.)
Inside Diameter (B)
8.4
mm

(Equiv. 0.331 in.)
Free Length (L)
31.8
mm

(Equiv. 1.252 in.)
Spring Rate
50.3
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 20x8.4x31.8 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 11.18 mm    Approx. Load at Max Deflection: 47.0 Kg
Part Number: CSN-0200-032 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$45.86 AUD
$55.04 AUD $45.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 25.4x2.5x31.8 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
25.40
mm

(Equiv. 1 in.)
Inside Diameter (B)
2.5
mm

(Equiv. 0.098 in.)
Free Length (L)
31.8
mm

(Equiv. 1.252 in.)
Spring Rate
91.8
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
11.18
mm
Approx. Load at Max Deflection
85.5
Kg
Bumpers Mounts - 25.4x2.5x31.8 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0254-032 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$56.41 AUD
$67.69 AUD $56.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 25.4x2.5x31.8 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
25.40
mm

(Equiv. 1 in.)
Inside Diameter (B)
2.5
mm

(Equiv. 0.098 in.)
Free Length (L)
31.8
mm

(Equiv. 1.252 in.)
Spring Rate
91.8
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 25.4x2.5x31.8 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 11.18 mm    Approx. Load at Max Deflection: 85.5 Kg
Part Number: CSN-0254-032 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$56.41 AUD
$67.69 AUD $56.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 25.4x10.4x19.8 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
25.40
mm

(Equiv. 1 in.)
Inside Diameter (B)
10.4
mm

(Equiv. 0.409 in.)
Free Length (L)
19.8
mm

(Equiv. 0.78 in.)
Spring Rate
137.8
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
7.11
mm
Approx. Load at Max Deflection
80.2
Kg
Bumpers Mounts - 25.4x10.4x19.8 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0254-020 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$53.23 AUD
$63.87 AUD $53.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 25.4x10.4x19.8 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
25.40
mm

(Equiv. 1 in.)
Inside Diameter (B)
10.4
mm

(Equiv. 0.409 in.)
Free Length (L)
19.8
mm

(Equiv. 0.78 in.)
Spring Rate
137.8
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 25.4x10.4x19.8 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 7.11 mm    Approx. Load at Max Deflection: 80.2 Kg
Part Number: CSN-0254-020 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$53.23 AUD
$63.87 AUD $53.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 25.4x10.4x25.4 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
25.40
mm

(Equiv. 1 in.)
Inside Diameter (B)
10.4
mm

(Equiv. 0.409 in.)
Free Length (L)
25.4
mm

(Equiv. 1 in.)
Spring Rate
104.7
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
8.89
mm
Approx. Load at Max Deflection
78.0
Kg
Bumpers Mounts - 25.4x10.4x25.4 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0254-025 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$57.41 AUD
$68.89 AUD $57.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 25.4x10.4x25.4 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
25.40
mm

(Equiv. 1 in.)
Inside Diameter (B)
10.4
mm

(Equiv. 0.409 in.)
Free Length (L)
25.4
mm

(Equiv. 1 in.)
Spring Rate
104.7
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 25.4x10.4x25.4 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 8.89 mm    Approx. Load at Max Deflection: 78.0 Kg
Part Number: CSN-0254-025 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$57.41 AUD
$68.89 AUD $57.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 25.4x10.4x39.7 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
25.40
mm

(Equiv. 1 in.)
Inside Diameter (B)
10.4
mm

(Equiv. 0.409 in.)
Free Length (L)
39.7
mm

(Equiv. 1.563 in.)
Spring Rate
77.1
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
13.97
mm
Approx. Load at Max Deflection
90.0
Kg
Bumpers Mounts - 25.4x10.4x39.7 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0254-040 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$61.95 AUD
$74.35 AUD $61.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 25.4x10.4x39.7 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
25.40
mm

(Equiv. 1 in.)
Inside Diameter (B)
10.4
mm

(Equiv. 0.409 in.)
Free Length (L)
39.7
mm

(Equiv. 1.563 in.)
Spring Rate
77.1
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 25.4x10.4x39.7 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 13.97 mm    Approx. Load at Max Deflection: 90.0 Kg
Part Number: CSN-0254-040 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$61.95 AUD
$74.35 AUD $61.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 31.8x13.5x31.8 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
31.80
mm

(Equiv. 1.252 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
31.8
mm

(Equiv. 1.252 in.)
Spring Rate
180.6
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
11.18
mm
Approx. Load at Max Deflection
168.3
Kg
Bumpers Mounts - 31.8x13.5x31.8 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0318-032 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$71.95 AUD
$86.35 AUD $71.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 31.8x13.5x31.8 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
31.80
mm

(Equiv. 1.252 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
31.8
mm

(Equiv. 1.252 in.)
Spring Rate
180.6
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 31.8x13.5x31.8 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 11.18 mm    Approx. Load at Max Deflection: 168.3 Kg
Part Number: CSN-0318-032 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$71.95 AUD
$86.35 AUD $71.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 31.8x13.5x40.1 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
31.80
mm

(Equiv. 1.252 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
40.1
mm

(Equiv. 1.579 in.)
Spring Rate
145.0
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
13.97
mm
Approx. Load at Max Deflection
175.8
Kg
Bumpers Mounts - 31.8x13.5x40.1 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0318-040 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$94.86 AUD
$113.84 AUD $94.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 31.8x13.5x40.1 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
31.80
mm

(Equiv. 1.252 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
40.1
mm

(Equiv. 1.579 in.)
Spring Rate
145.0
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 31.8x13.5x40.1 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 13.97 mm    Approx. Load at Max Deflection: 175.8 Kg
Part Number: CSN-0318-040 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$94.86 AUD
$113.84 AUD $94.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 31.8x13.5x50 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
31.80
mm

(Equiv. 1.252 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
50.0
mm

(Equiv. 1.969 in.)
Spring Rate
114.0
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
17.53
mm
Approx. Load at Max Deflection
170.2
Kg
Bumpers Mounts - 31.8x13.5x50 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0318-050 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$98.86 AUD
$118.64 AUD $98.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 31.8x13.5x50 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
31.80
mm

(Equiv. 1.252 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
50.0
mm

(Equiv. 1.969 in.)
Spring Rate
114.0
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 31.8x13.5x50 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 17.53 mm    Approx. Load at Max Deflection: 170.2 Kg
Part Number: CSN-0318-050 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$98.86 AUD
$118.64 AUD $98.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 31.8x13.5x63.5 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
31.80
mm

(Equiv. 1.252 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
63.5
mm

(Equiv. 2.5 in.)
Spring Rate
90.5
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
22.10
mm
Approx. Load at Max Deflection
168.7
Kg
Bumpers Mounts - 31.8x13.5x63.5 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0318-064 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$119.86 AUD
$143.84 AUD $119.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 31.8x13.5x63.5 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
31.80
mm

(Equiv. 1.252 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
63.5
mm

(Equiv. 2.5 in.)
Spring Rate
90.5
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 31.8x13.5x63.5 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 22.10 mm    Approx. Load at Max Deflection: 168.7 Kg
Part Number: CSN-0318-064 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$119.86 AUD
$143.84 AUD $119.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 39.6x13.5x31.8 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
39.60
mm

(Equiv. 1.559 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
31.8
mm

(Equiv. 1.252 in.)
Spring Rate
313.5
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
11.18
mm
Approx. Load at Max Deflection
292.2
Kg
Bumpers Mounts - 39.6x13.5x31.8 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0396-032 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$83.68 AUD
$100.42 AUD $83.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 39.6x13.5x31.8 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
39.60
mm

(Equiv. 1.559 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
31.8
mm

(Equiv. 1.252 in.)
Spring Rate
313.5
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 39.6x13.5x31.8 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 11.18 mm    Approx. Load at Max Deflection: 292.2 Kg
Part Number: CSN-0396-032 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$83.68 AUD
$100.42 AUD $83.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 39.6x13.5x40.1 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
39.60
mm

(Equiv. 1.559 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
40.1
mm

(Equiv. 1.579 in.)
Spring Rate
252.0
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
13.97
mm
Approx. Load at Max Deflection
304.6
Kg
Bumpers Mounts - 39.6x13.5x40.1 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0396-040 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$123.95 AUD
$148.75 AUD $123.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 39.6x13.5x40.1 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
39.60
mm

(Equiv. 1.559 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
40.1
mm

(Equiv. 1.579 in.)
Spring Rate
252.0
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 39.6x13.5x40.1 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 13.97 mm    Approx. Load at Max Deflection: 304.6 Kg
Part Number: CSN-0396-040 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$123.95 AUD
$148.75 AUD $123.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 39.6x13.5x50 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
39.60
mm

(Equiv. 1.559 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
50.0
mm

(Equiv. 1.969 in.)
Spring Rate
201.0
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
17.53
mm
Approx. Load at Max Deflection
300.1
Kg
Bumpers Mounts - 39.6x13.5x50 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0396-050 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$130.59 AUD
$156.71 AUD $130.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 39.6x13.5x50 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
39.60
mm

(Equiv. 1.559 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
50.0
mm

(Equiv. 1.969 in.)
Spring Rate
201.0
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 39.6x13.5x50 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 17.53 mm    Approx. Load at Max Deflection: 300.1 Kg
Part Number: CSN-0396-050 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$130.59 AUD
$156.71 AUD $130.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 39.6x13.5x63.5 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
39.60
mm

(Equiv. 1.559 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
63.5
mm

(Equiv. 2.5 in.)
Spring Rate
163.0
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
22.10
mm
Approx. Load at Max Deflection
304.2
Kg
Bumpers Mounts - 39.6x13.5x63.5 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0396-064 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$140.32 AUD
$168.38 AUD $140.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 39.6x13.5x63.5 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
39.60
mm

(Equiv. 1.559 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
63.5
mm

(Equiv. 2.5 in.)
Spring Rate
163.0
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 39.6x13.5x63.5 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 22.10 mm    Approx. Load at Max Deflection: 304.2 Kg
Part Number: CSN-0396-064 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$140.32 AUD
$168.38 AUD $140.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 39.6x13.5x80.2 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
39.60
mm

(Equiv. 1.559 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
80.2
mm

(Equiv. 3.157 in.)
Spring Rate
130.3
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
27.94
mm
Approx. Load at Max Deflection
309.8
Kg
Bumpers Mounts - 39.6x13.5x80.2 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0396-080 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$90.05 AUD
$108.05 AUD $90.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 39.6x13.5x80.2 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
39.60
mm

(Equiv. 1.559 in.)
Inside Diameter (B)
13.5
mm

(Equiv. 0.531 in.)
Free Length (L)
80.2
mm

(Equiv. 3.157 in.)
Spring Rate
130.3
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 39.6x13.5x80.2 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 27.94 mm    Approx. Load at Max Deflection: 309.8 Kg
Part Number: CSN-0396-080 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$90.05 AUD
$108.05 AUD $90.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 50.8x16.8x63.5 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
50.80
mm

(Equiv. 2 in.)
Inside Diameter (B)
16.8
mm

(Equiv. 0.661 in.)
Free Length (L)
63.5
mm

(Equiv. 2.5 in.)
Spring Rate
259.5
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
22.10
mm
Approx. Load at Max Deflection
484.1
Kg
Bumpers Mounts - 50.8x16.8x63.5 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0508-064 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$191.41 AUD
$229.69 AUD $191.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 50.8x16.8x63.5 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
50.80
mm

(Equiv. 2 in.)
Inside Diameter (B)
16.8
mm

(Equiv. 0.661 in.)
Free Length (L)
63.5
mm

(Equiv. 2.5 in.)
Spring Rate
259.5
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 50.8x16.8x63.5 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 22.10 mm    Approx. Load at Max Deflection: 484.1 Kg
Part Number: CSN-0508-064 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$191.41 AUD
$229.69 AUD $191.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 63.5x16.8x63.5 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
63.50
mm

(Equiv. 2.5 in.)
Inside Diameter (B)
16.8
mm

(Equiv. 0.661 in.)
Free Length (L)
63.5
mm

(Equiv. 2.5 in.)
Spring Rate
400.3
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
22.10
mm
Approx. Load at Max Deflection
746.5
Kg
Bumpers Mounts - 63.5x16.8x63.5 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0635-064 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$263.77 AUD
$316.53 AUD $263.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 63.5x16.8x63.5 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
63.50
mm

(Equiv. 2.5 in.)
Inside Diameter (B)
16.8
mm

(Equiv. 0.661 in.)
Free Length (L)
63.5
mm

(Equiv. 2.5 in.)
Spring Rate
400.3
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 63.5x16.8x63.5 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 22.10 mm    Approx. Load at Max Deflection: 746.5 Kg
Part Number: CSN-0635-064 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$263.77 AUD
$316.53 AUD $263.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 80x21.1x63.5 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
80.00
mm

(Equiv. 3.15 in.)
Inside Diameter (B)
21.1
mm

(Equiv. 0.831 in.)
Free Length (L)
63.5
mm

(Equiv. 2.5 in.)
Spring Rate
800.7
N/mm Deflection
+/- 20 Perc
Max. Rec. Deflection
22.10
mm
Approx. Load at Max Deflection
1493.0
Kg
Bumpers Mounts - 80x21.1x63.5 mm - Neoprene Rubber
Material: Neoprene Rubber
Part Number: CSN-0800-064 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$385.41 AUD
$462.49 AUD $385.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bumpers Mounts - 80x21.1x63.5 mm Neoprene Springs - Neoprene Rubber Spring
Outside Diameter (A)
80.00
mm

(Equiv. 3.15 in.)
Inside Diameter (B)
21.1
mm

(Equiv. 0.831 in.)
Free Length (L)
63.5
mm

(Equiv. 2.5 in.)
Spring Rate
800.7
N/mm Deflection
+/- 20 Perc
Bumpers Mounts - 80x21.1x63.5 mm - Neoprene Rubber
Material: Neoprene Rubber    Max. Rec. Deflection: 22.10 mm    Approx. Load at Max Deflection: 1493.0 Kg
Part Number: CSN-0800-064 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$385.41 AUD
$462.49 AUD $385.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
