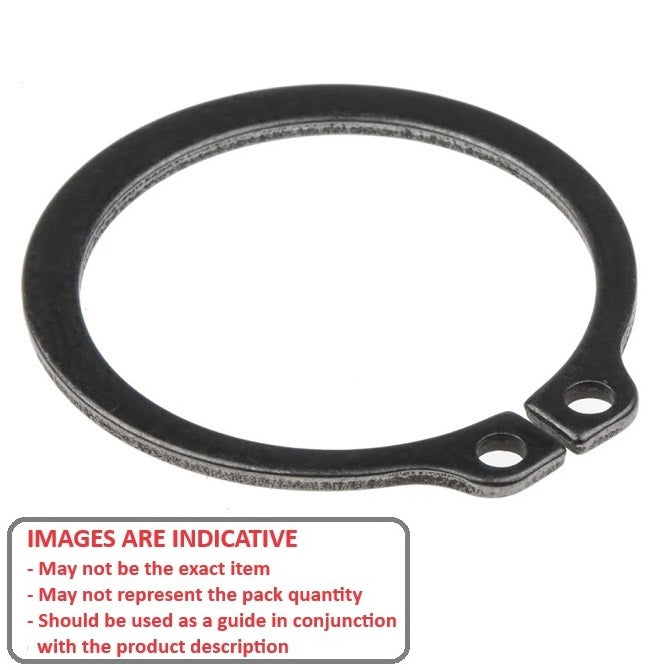

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

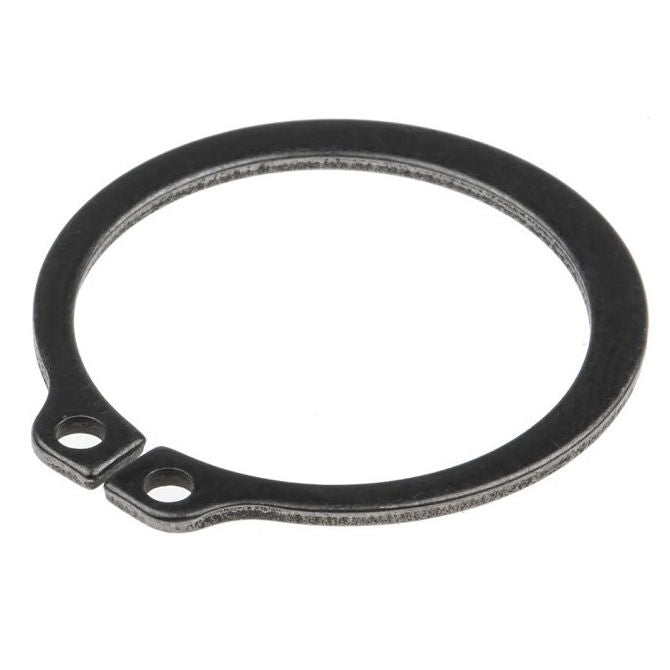

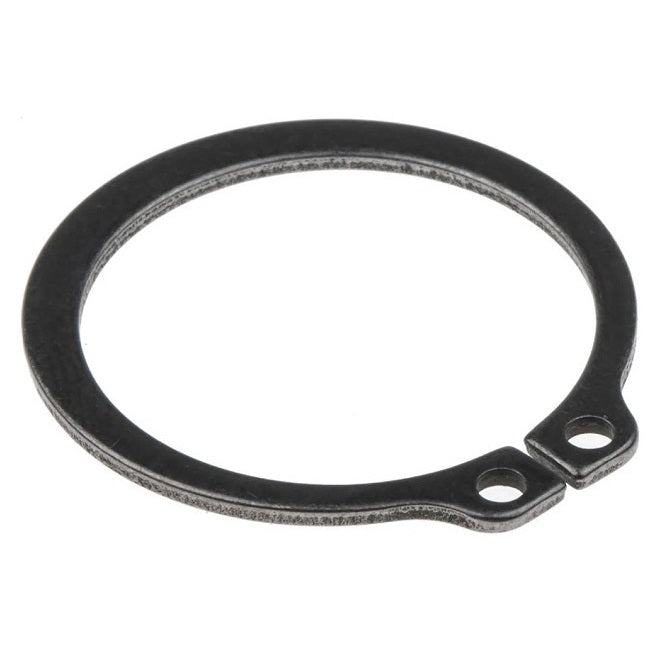

Circlips - 240 mm x 5 mm x 234 mm
CCE-24000-C

Name: 1211276 | CCE-24000-C --- Circlips - 240 mm x 5 mm x 234 mm
Brand: MBA
SKU: CCE24000C
Price: 79.50 AUD
Availability: InStock

MBA

Category: Circlips - External - Standard - Carbon Steel

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

Price:

$79.50 AUD

Each
Qty: 2 available now
Order 50 or more for $71.55 AUD Each

Similar Items

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jan 04, 2025

Quantity

Base Category: Circlips - External

Top Level Category: Circlips - External - Standard - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 48

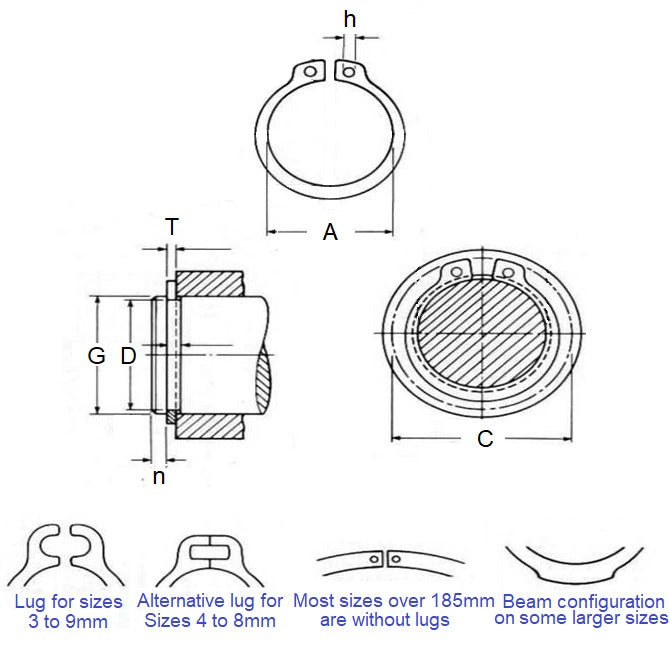

Shaft Diameter (Ds): 240.00mm
Carbon Steel

Clip Thickness (T): 5.00mm
_+0.00/-0.72
Groove Dia. (Dg): 234.00mm
_+0.00/-0.12
Loose Circlip ID (A): 228.00mm
Min. Extension (n): 9.00mm
Groove Width (W): 5.15mm
Clearance on Shaft (C1): 263.00mm
Clearance in Groove (C1): 270.00mm
Min. Lug Diameter (h): 4.00mm
Standard: DIN471

Brand: MBA
Country of Origin: US

Alternatives: 1400-2400, 98541A816, A240, A240-WAS, A240X5, D1400-2400, DSH-240, NZT.A240

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
