RST-098 (Pack of 140)
External Retaining Rings - 24.96x1.07x23.88 mm Spiral Rings - Carbon Spring Steel Spiral Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Spiral Rings and Snap Rings PDF
Order 50 or more packs of 140 (7000 pcs)
for $348.51 AUD per 140 pack
24.96x1.07x23.88 mm External Retaining Rings - Carbon Spring Steel - Sold Per 140:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty - Carbon Steel
Product Details

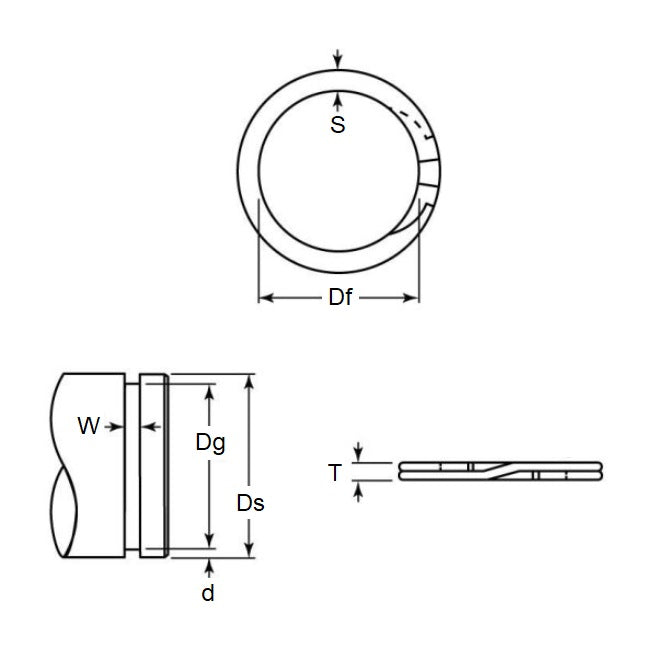

Shaft Diameter (Ds): 24.96mm(24.96mm is 0.983 in.)
Carbon Spring Steel
- Shaft Diameter (Ds): 24.96mm
(24.96mm is 0.983 in.)
- Clip Thickness (T): 1.07mm
+/- 0.05
(1.07mm is 0.042 in.)
- Groove Dia. (Dg): 23.88mm
(23.88mm is 0.94 in.)
- Approx. Loose Circlip ID (A): 23.46mm
+ 0.00 / - 0.33
- Radial Wall (S) Approx.: 1.91mm
+/- 0.11
- Groove Width (W): 1.21mm
+/- 0.07
- Approx. Loose Clip OD: 27.28
+/- 0.04
- Groove Depth (d): 0.56
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® RST-098
- Smalley® RST-098
- Spirolox® RST-098
- Smalley® WST-098
- RST098
- WST098
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RST098,
