CCE-23000-C (Each)

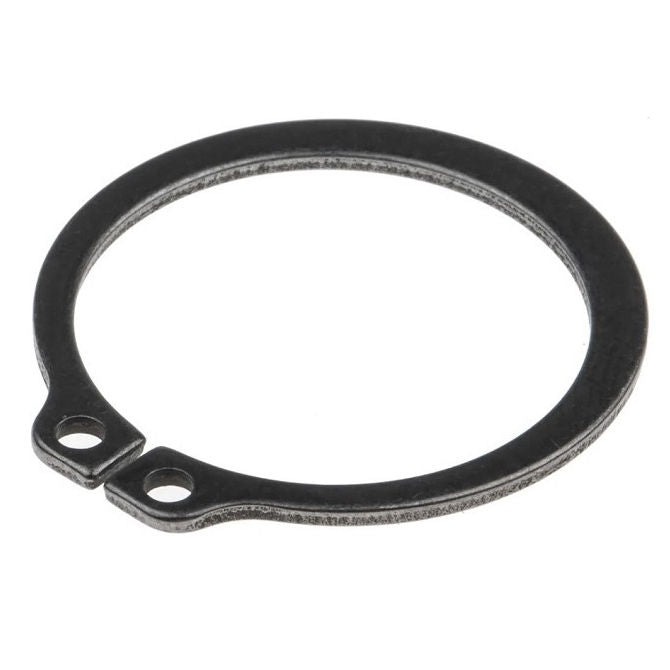

External Retaining Rings - 230x5x224 mm Circlips - Carbon Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more
for $46.51 AUD Each
230x5x224 mm External Retaining Rings - Carbon Steel - Sold per Each:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Circlips - Standard - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 38

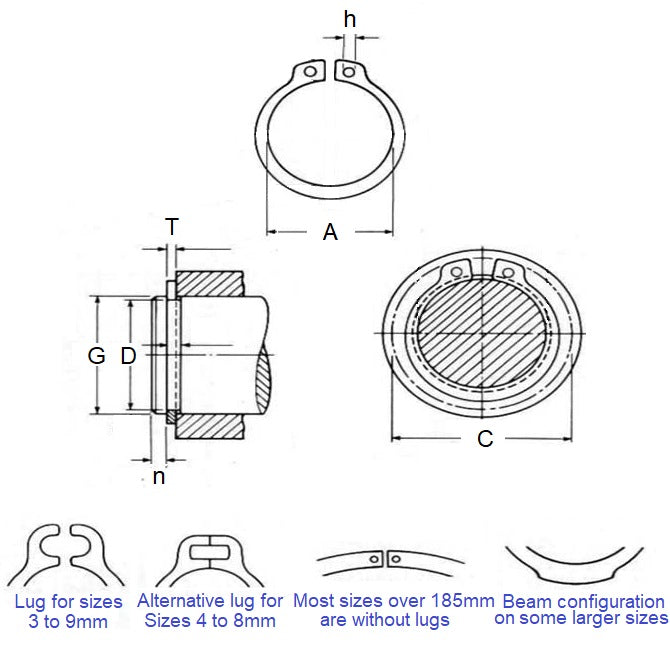

Shaft Diameter (Ds): 230.00mm
(230.00mm is 9.055 in.)
Carbon Steel
- Shaft Diameter (Ds): 230.00mm
(230.00mm is 9.055 in.)
- Clip Thickness (T): 5.00mm
+ 0.00 / - 0.12
(5.00mm is 0.197 in.)
- Groove Dia. (Dg): 224.00mm
+ 0.00 / - 0.72
(224.00mm is 8.819 in.)
- Approx. Loose Circlip ID (A): 218.00mm
- Groove Width (W): 5.15mm
- Standard: DIN471
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Ellison® 471-230
- Seeger® A-230
- Seeger® A230X5
- Bossard® BN818-230
- Waldes® D1400-230
- Huyett® DSH-230
- NoCor® DSH-230
- Rotor Clip® DSH-230
- BN818230
- D1400-2300
- D14002300
- 471230
- DSH230
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
