RR-093 (PK-40)

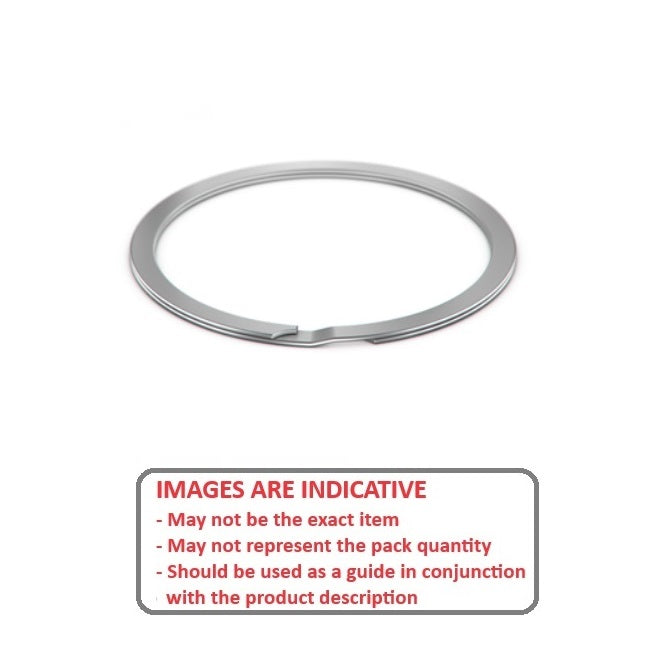

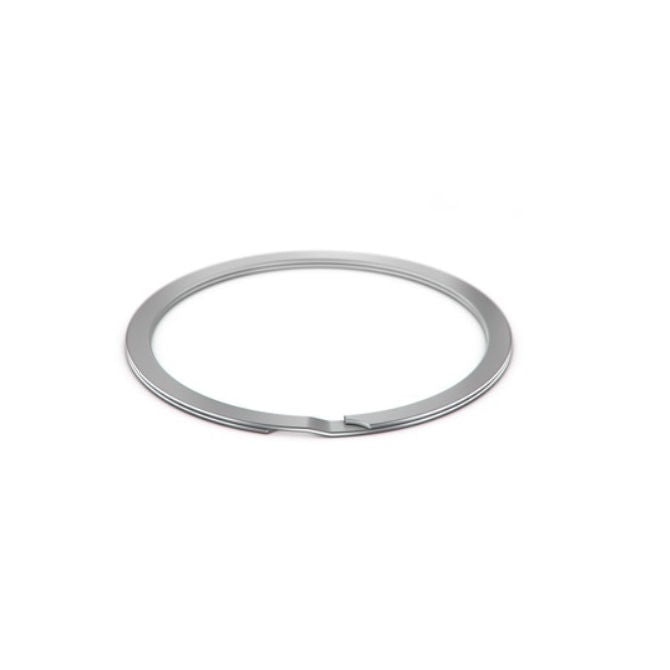

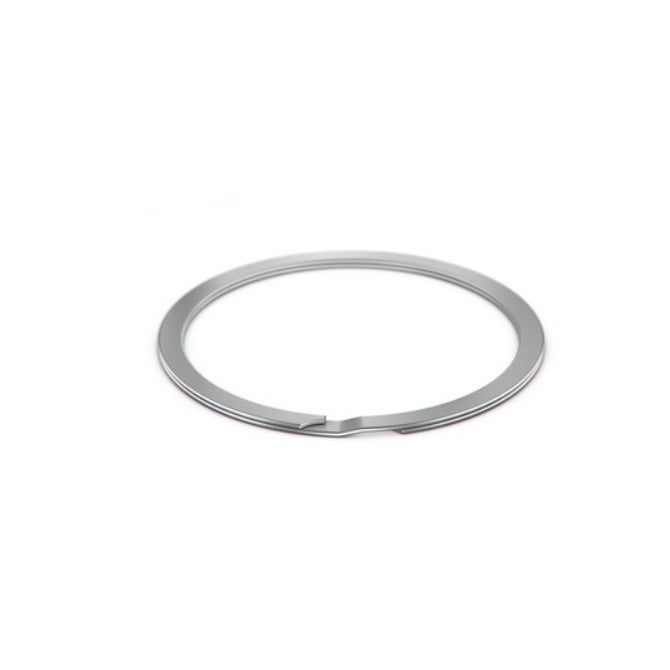

Internal Retaining Rings - 23.83x0.79x24.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Spiral Rings and Snap Rings PDF
Order 50 or more packs of 40 (2000 pcs)
for $8.31 AUD per 40 pack
15/16x1/32 inch Spiral Ring - 23.83x0.79x24.77 mm Internal Retaining Rings - Carbon Spring Steel - Sold per pack of 40:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 2682

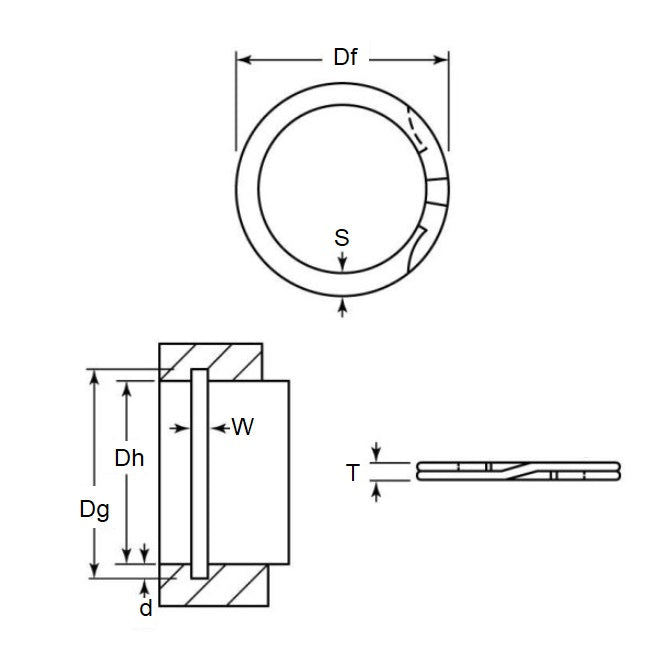

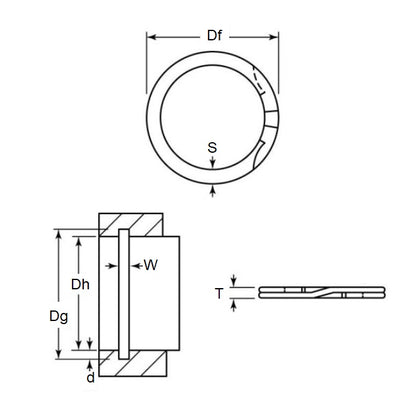

Housing Bore (B): 23.83mm
(23.83mm is 0.938 in.)
Carbon Spring Steel
- Housing Bore (B): 23.83mm
(23.83mm is 0.938 in.)
- Clip Thickness (T): 0.79mm
+/- 0.05
(0.79mm is 0.031 in.)
- Groove Dia. (Dg): 24.77mm
(24.77mm is 0.975 in.)
- Approx. Loose Circlip OD (Dr): 24.88mm
+ 0.33 / - 0.00
- Radial Wall (S) Approx.: 1.65mm
+/- 0.10
- Groove Width (W): 0.95mm
+/- 0.07
- Approx. Loose Clip ID: 21.58
+/- 0.04
- Groove Depth (d): 0.48
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Associated Spring® AI-093
- Huyett® RR-093
- Smalley® WH-093
- Spirolox® WH-093
- WH093
- AI093
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RR093,
