Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel

Retaining Rings -> Internal -> Spiral Rings -> Medium Duty -> Carbon Steel

There are 48 products in the sub-categories of Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel. Scroll down or follow the link to Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel in the products table to see all these items combined into a handy table with filters.

Category Details

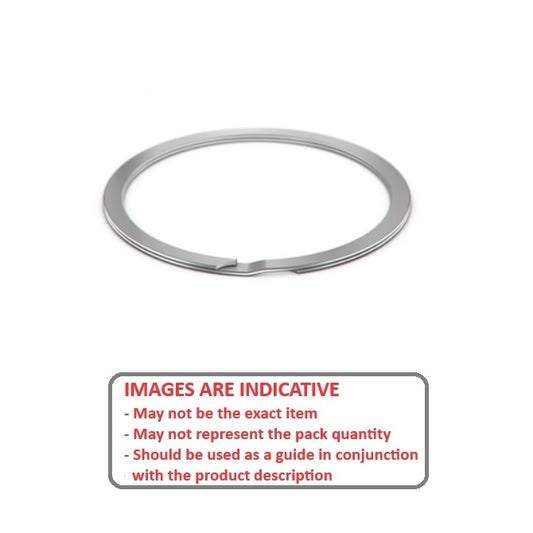

A selection of Carbon Steel Medium Duty Spiral Rings Internal Retaining Rings. Includes AI / WH / AS3217 / RR / MIL-R-27426B1 - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AI, Smalley: WH, Spirolox and Ramsey: RR, Aerospace AS3217, MIL-R-27426B1

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel category on the Small Parts & Bearings online store.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Approx. Groove Width (W) Indicative
Internal Retaining Rings - 12.7x0.64x13.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
12.70
mm
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
13.35
mm
Approx. Loose Circlip OD (Dr)
13.26
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.14
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.05
Internal Retaining Rings - 12.7x0.64x13.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Material: Carbon Spring Steel    Approx. Loose Clip ID: 10.98 +/- 0.04   Groove Depth (d): 0.33
Additional stock available from USA subject to Prior Sale = 17962
Part Number: RR-050 (PK-5)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$22.50 AUD
$22.50 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Internal Retaining Rings - 12.7x0.64x13.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
12.70
mm
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
13.35
mm
Approx. Loose Circlip OD (Dr)
13.26
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 12.7x0.64x13.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.14 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.05   Approx. Loose Clip ID: 10.98 +/- 0.04   Groove Depth (d): 0.33
Additional stock available from USA subject to Prior Sale = 17962
Part Number: RR-050 (PK-5)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$22.50 AUD
$22.50 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 14.29x0.64x14.7 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
14.29
mm
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
14.70
mm
Approx. Loose Circlip OD (Dr)
14.92
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.14
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.05
Internal Retaining Rings - 14.29x0.64x14.7 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 12.64 +/- 0.04   Groove Depth (d): 0.33
Deleted Item. Available while stocks last.
Part Number: RR-056 (PK-5)
2 units (10 pcs) Available Now | Further orders can be expected around Sat, Jul 18, 2026
$14.00 AUD
$14.00 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Internal Retaining Rings - 14.29x0.64x14.7 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
14.29
mm
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
14.70
mm
Approx. Loose Circlip OD (Dr)
14.92
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 14.29x0.64x14.7 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.14 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.05   Approx. Loose Clip ID: 12.64 +/- 0.04   Groove Depth (d): 0.33
Deleted Item. Available while stocks last.
Part Number: RR-056 (PK-5)
2 units (10 pcs) Available Now | Further orders can be expected around Sat, Jul 18, 2026
$14.00 AUD
$14.00 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

2 units (10 pcs) Available Now. Backorder if more than 2.
Internal Retaining Rings - 15.09x0.64x15.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
15.09
mm
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
15.72
mm
Approx. Loose Circlip OD (Dr)
15.75
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.14
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.05
Internal Retaining Rings - 15.09x0.64x15.72 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 13.47 +/- 0.04   Groove Depth (d): 0.33
Part Number: RR-059 (PK-50)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 30, 2026
$61.50 AUD
$73.80 AUD $61.50 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 15.09x0.64x15.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
15.09
mm
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
15.72
mm
Approx. Loose Circlip OD (Dr)
15.75
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 15.09x0.64x15.72 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.14 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.05   Approx. Loose Clip ID: 13.47 +/- 0.04   Groove Depth (d): 0.33
Part Number: RR-059 (PK-50)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 30, 2026
$61.50 AUD
$73.80 AUD $61.50 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 15.88x0.64x16.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
15.88
mm
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
16.53
mm
Approx. Loose Circlip OD (Dr)
16.58
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.14
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.05
Internal Retaining Rings - 15.88x0.64x16.53 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 14.3 +/- 0.04   Groove Depth (d): 0.33
Additional stock available from USA subject to Prior Sale = 18903
Part Number: RR-062 (PK-2)
141 units (282 pcs) Available Now | Further orders can be expected around Wed, Jul 01, 2026
$7.95 AUD
$7.95 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 141 available can be backordered.
Internal Retaining Rings - 15.88x0.64x16.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
15.88
mm
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
16.53
mm
Approx. Loose Circlip OD (Dr)
16.58
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 15.88x0.64x16.53 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.14 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.05   Approx. Loose Clip ID: 14.3 +/- 0.04   Groove Depth (d): 0.33
Additional stock available from USA subject to Prior Sale = 18903
Part Number: RR-062 (PK-2)
141 units (282 pcs) Available Now | Further orders can be expected around Wed, Jul 01, 2026
$7.95 AUD
$7.95 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

141 units (282 pcs) Available Now. Backorder if more than 141.
Internal Retaining Rings - 17.45x0.64x18.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
17.45
mm
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
18.11
mm
Approx. Loose Circlip OD (Dr)
18.22
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.14
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.05
Internal Retaining Rings - 17.45x0.64x18.11 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 15.94 +/- 0.04   Groove Depth (d): 0.41
Additional stock available from USA subject to Prior Sale = 472
Part Number: RR-068 (PK-100)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$10.14 AUD
$12.16 AUD $10.14 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 17.45x0.64x18.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
17.45
mm
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
18.11
mm
Approx. Loose Circlip OD (Dr)
18.22
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 17.45x0.64x18.11 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.14 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.05   Approx. Loose Clip ID: 15.94 +/- 0.04   Groove Depth (d): 0.41
Additional stock available from USA subject to Prior Sale = 472
Part Number: RR-068 (PK-100)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$10.14 AUD
$12.16 AUD $10.14 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22x0.79x22.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
22.00
mm
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
22.94
mm
Approx. Loose Circlip OD (Dr)
22.97
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.65
mm
+/- 0.10
Groove Width (W)
0.95
mm
+/- 0.08
Internal Retaining Rings - 22x0.79x22.94 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 19.67 +/- 0.04   Groove Depth (d): 0.48
Additional stock available from USA subject to Prior Sale = 188
Part Number: RR-086 (PK-6)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$12.32 AUD
$14.78 AUD $12.32 AUD
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22x0.79x22.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
22.00
mm
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
22.94
mm
Approx. Loose Circlip OD (Dr)
22.97
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 22x0.79x22.94 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.65 mm +/- 0.10    Groove Width (W): 0.95 mm +/- 0.08   Approx. Loose Clip ID: 19.67 +/- 0.04   Groove Depth (d): 0.48
Additional stock available from USA subject to Prior Sale = 188
Part Number: RR-086 (PK-6)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$12.32 AUD
$14.78 AUD $12.32 AUD
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.23x0.79x23.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
22.23
mm
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
23.17
mm
Approx. Loose Circlip OD (Dr)
23.21
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.65
mm
+/- 0.10
Groove Width (W)
0.95
mm
+/- 0.07
Internal Retaining Rings - 22.23x0.79x23.17 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 19.91 +/- 0.04   Groove Depth (d): 0.48
Additional stock available from USA subject to Prior Sale = 2402
Part Number: RR-087 (PK-6)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$12.32 AUD
$14.78 AUD $12.32 AUD
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 22.23x0.79x23.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
22.23
mm
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
23.17
mm
Approx. Loose Circlip OD (Dr)
23.21
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 22.23x0.79x23.17 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.65 mm +/- 0.10    Groove Width (W): 0.95 mm +/- 0.07   Approx. Loose Clip ID: 19.91 +/- 0.04   Groove Depth (d): 0.48
Additional stock available from USA subject to Prior Sale = 2402
Part Number: RR-087 (PK-6)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$12.32 AUD
$14.78 AUD $12.32 AUD
Priced, Stocked and Sold Per 6 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 23.83x0.79x24.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
23.83
mm
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
24.77
mm
Approx. Loose Circlip OD (Dr)
24.88
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.65
mm
+/- 0.10
Groove Width (W)
0.95
mm
+/- 0.07
Internal Retaining Rings - 23.83x0.79x24.77 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 21.58 +/- 0.04   Groove Depth (d): 0.48
Additional stock available from USA subject to Prior Sale = 2682
Part Number: RR-093 (PK-40)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$9.23 AUD
$11.07 AUD $9.23 AUD
Priced, Stocked and Sold Per 40 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 23.83x0.79x24.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
23.83
mm
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
24.77
mm
Approx. Loose Circlip OD (Dr)
24.88
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 23.83x0.79x24.77 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.65 mm +/- 0.10    Groove Width (W): 0.95 mm +/- 0.07   Approx. Loose Clip ID: 21.58 +/- 0.04   Groove Depth (d): 0.48
Additional stock available from USA subject to Prior Sale = 2682
Part Number: RR-093 (PK-40)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$9.23 AUD
$11.07 AUD $9.23 AUD
Priced, Stocked and Sold Per 40 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
25.40
mm
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
26.50
mm
Approx. Loose Circlip OD (Dr)
26.52
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.91
mm
+/- 0.11
Groove Width (W)
1.11
mm
+/- 0.07
Internal Retaining Rings - 25.4x0.94x26.5 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 22.7 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 25907
Part Number: RR-100 (PK-2)
96 units (192 pcs) Available Now | Further orders can be expected around Wed, Jul 01, 2026
$4.32 AUD
$4.32 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 96 available can be backordered.
Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
25.40
mm
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
26.50
mm
Approx. Loose Circlip OD (Dr)
26.52
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 25.4x0.94x26.5 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.91 mm +/- 0.11    Groove Width (W): 1.11 mm +/- 0.07   Approx. Loose Clip ID: 22.7 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 25907
Part Number: RR-100 (PK-2)
96 units (192 pcs) Available Now | Further orders can be expected around Wed, Jul 01, 2026
$4.32 AUD
$4.32 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

96 units (192 pcs) Available Now. Backorder if more than 96.
Internal Retaining Rings - 25.98x0.94x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
25.98
mm
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
27.08
mm
Approx. Loose Circlip OD (Dr)
27.12
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.91
mm
+/- 0.11
Groove Width (W)
1.11
mm
+/- 0.07
Internal Retaining Rings - 25.98x0.94x27.08 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 23.3 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 2354
Part Number: RR-102 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$11.59 AUD
$13.91 AUD $11.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 25.98x0.94x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
25.98
mm
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
27.08
mm
Approx. Loose Circlip OD (Dr)
27.12
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 25.98x0.94x27.08 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.91 mm +/- 0.11    Groove Width (W): 1.11 mm +/- 0.07   Approx. Loose Clip ID: 23.3 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 2354
Part Number: RR-102 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$11.59 AUD
$13.91 AUD $11.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 26.97x0.94x28.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
26.97
mm
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
28.04
mm
Approx. Loose Circlip OD (Dr)
28.16
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
1.91
mm
+/- 0.11
Groove Width (W)
1.11
mm
+/- 0.10
Internal Retaining Rings - 26.97x0.94x28.04 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 24.34 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 989
Part Number: RR-106 (PK-9)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$12.23 AUD
$14.67 AUD $12.23 AUD
Priced, Stocked and Sold Per 9 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 26.97x0.94x28.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
26.97
mm
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
28.04
mm
Approx. Loose Circlip OD (Dr)
28.16
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 26.97x0.94x28.04 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.91 mm +/- 0.11    Groove Width (W): 1.11 mm +/- 0.10   Approx. Loose Clip ID: 24.34 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 989
Part Number: RR-106 (PK-9)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$12.23 AUD
$14.67 AUD $12.23 AUD
Priced, Stocked and Sold Per 9 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 28.58x0.94x29.64 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
28.58
mm
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
29.64
mm
Approx. Loose Circlip OD (Dr)
29.84
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
1.91
mm
+/- 0.11
Groove Width (W)
1.11
mm
+/- 0.10
Internal Retaining Rings - 28.58x0.94x29.64 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 26.02 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 8575
Part Number: RR-112 (PK-2)
42 units (84 pcs) Available Now | Further orders can be expected around Wed, Jul 01, 2026
$1.50 AUD
$1.50 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 42 available can be backordered.
Internal Retaining Rings - 28.58x0.94x29.64 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
28.58
mm
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
29.64
mm
Approx. Loose Circlip OD (Dr)
29.84
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 28.58x0.94x29.64 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.91 mm +/- 0.11    Groove Width (W): 1.11 mm +/- 0.10   Approx. Loose Clip ID: 26.02 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 8575
Part Number: RR-112 (PK-2)
42 units (84 pcs) Available Now | Further orders can be expected around Wed, Jul 01, 2026
$1.50 AUD
$1.50 AUD
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

42 units (84 pcs) Available Now. Backorder if more than 42.
Internal Retaining Rings - 30.94x1.09x32.16 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
30.94
mm
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
32.16
mm
Approx. Loose Circlip OD (Dr)
32.30
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
2.16
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.11
Internal Retaining Rings - 30.94x1.09x32.16 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 27.98 +/- 0.05   Groove Depth (d): 0.61
Part Number: RR-121 (PK-74)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Jul 28, 2026
$224.41 AUD
$224.41 AUD
Priced, Stocked and Sold Per 74 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 30.94x1.09x32.16 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
30.94
mm
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
32.16
mm
Approx. Loose Circlip OD (Dr)
32.30
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 30.94x1.09x32.16 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.16 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.11   Approx. Loose Clip ID: 27.98 +/- 0.05   Groove Depth (d): 0.61
Part Number: RR-121 (PK-74)
Out of Stock | Backorder Now | Backorder now for delivery around Tue, Jul 28, 2026
$224.41 AUD
$224.41 AUD
Priced, Stocked and Sold Per 74 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 31.75x1.09x32.97 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
31.75
mm
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
32.97
mm
Approx. Loose Circlip OD (Dr)
33.15
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
2.16
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.10
Internal Retaining Rings - 31.75x1.09x32.97 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 28.83 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 15524
Part Number: RR-125 (PK-10)
14 units (140 pcs) Available Now | Further orders can be expected around Wed, Jul 01, 2026
$7.41 AUD
$7.41 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 14 available can be backordered.
Internal Retaining Rings - 31.75x1.09x32.97 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
31.75
mm
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
32.97
mm
Approx. Loose Circlip OD (Dr)
33.15
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 31.75x1.09x32.97 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.16 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.10   Approx. Loose Clip ID: 28.83 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 15524
Part Number: RR-125 (PK-10)
14 units (140 pcs) Available Now | Further orders can be expected around Wed, Jul 01, 2026
$7.41 AUD
$7.41 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

14 units (140 pcs) Available Now. Backorder if more than 14.
Internal Retaining Rings - 33.34x1.09x34.54 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
33.34
mm
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
34.54
mm
Approx. Loose Circlip OD (Dr)
34.81
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
2.16
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.10
Internal Retaining Rings - 33.34x1.09x34.54 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 30.49 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 21971
Part Number: RR-131 (PK-5)
10 units (50 pcs) Available Now | Further orders can be expected around Wed, Jul 01, 2026
$3.32 AUD
$3.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 10 available can be backordered.
Internal Retaining Rings - 33.34x1.09x34.54 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
33.34
mm
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
34.54
mm
Approx. Loose Circlip OD (Dr)
34.81
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 33.34x1.09x34.54 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.16 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.10   Approx. Loose Clip ID: 30.49 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 21971
Part Number: RR-131 (PK-5)
10 units (50 pcs) Available Now | Further orders can be expected around Wed, Jul 01, 2026
$3.32 AUD
$3.32 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

10 units (50 pcs) Available Now. Backorder if more than 10.
Internal Retaining Rings - 34.8x1.09x36.24 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
34.80
mm
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
36.24
mm
Approx. Loose Circlip OD (Dr)
36.33
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
2.41
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.10
Internal Retaining Rings - 34.8x1.09x36.24 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 31.51 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 14657
Part Number: RR-137 (Each)
4871 Available Now | Further orders can be expected around Wed, Jul 01, 2026
$5.32 AUD
$5.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 4871 available can be backordered.
Internal Retaining Rings - 34.8x1.09x36.24 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
34.80
mm
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
36.24
mm
Approx. Loose Circlip OD (Dr)
36.33
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 34.8x1.09x36.24 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.41 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.10   Approx. Loose Clip ID: 31.51 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 14657
Part Number: RR-137 (Each)
4871 Available Now | Further orders can be expected around Wed, Jul 01, 2026
$5.32 AUD
$5.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4871 Available Now. Backorder if more than 4871.
Internal Retaining Rings - 36.5x1.09x37.82 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
36.50
mm
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
37.82
mm
Approx. Loose Circlip OD (Dr)
38.11
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
2.41
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.10
Internal Retaining Rings - 36.5x1.09x37.82 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 33.29 +/- 0.05   Groove Depth (d): 0.66
Deleted Item. Available while stocks last.
Part Number: RR-143 (Each)
24 Available Now | Further orders can be expected around Sat, Jul 18, 2026
$2.00 AUD
$2.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 24 available can be backordered.
Internal Retaining Rings - 36.5x1.09x37.82 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
36.50
mm
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
37.82
mm
Approx. Loose Circlip OD (Dr)
38.11
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 36.5x1.09x37.82 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.41 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.10   Approx. Loose Clip ID: 33.29 +/- 0.05   Groove Depth (d): 0.66
Deleted Item. Available while stocks last.
Part Number: RR-143 (Each)
24 Available Now | Further orders can be expected around Sat, Jul 18, 2026
$2.00 AUD
$2.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

24 Available Now. Backorder if more than 24.
Internal Retaining Rings - 41.28x1.25x42.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
41.28
mm
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
42.77
mm
Approx. Loose Circlip OD (Dr)
43.10
mm
+ 0.51 / - 0.00
Radial Wall (S) Approx.
2.74
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
Internal Retaining Rings - 41.28x1.25x42.77 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 37.62 +/- 0.05   Groove Depth (d): 0.76
Additional stock available from USA subject to Prior Sale = 74
Part Number: RR-162 (PK-5)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$20.14 AUD
$20.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 41.28x1.25x42.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
41.28
mm
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
42.77
mm
Approx. Loose Circlip OD (Dr)
43.10
mm
+ 0.51 / - 0.00
Internal Retaining Rings - 41.28x1.25x42.77 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.74 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip ID: 37.62 +/- 0.05   Groove Depth (d): 0.76
Additional stock available from USA subject to Prior Sale = 74
Part Number: RR-162 (PK-5)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$20.14 AUD
$20.14 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 42.85x1.25x44.45 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
42.85
mm
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
44.45
mm
Approx. Loose Circlip OD (Dr)
44.74
mm
+ 0.51 / - 0.00
Radial Wall (S) Approx.
3.00
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
Internal Retaining Rings - 42.85x1.25x44.45 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 38.74 +/- 0.05   Groove Depth (d): 0.79
Additional stock available from USA subject to Prior Sale = 699
Part Number: RR-168 (PK-5)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$12.59 AUD
$15.11 AUD $12.59 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 42.85x1.25x44.45 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
42.85
mm
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
44.45
mm
Approx. Loose Circlip OD (Dr)
44.74
mm
+ 0.51 / - 0.00
Internal Retaining Rings - 42.85x1.25x44.45 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.00 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip ID: 38.74 +/- 0.05   Groove Depth (d): 0.79
Additional stock available from USA subject to Prior Sale = 699
Part Number: RR-168 (PK-5)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$12.59 AUD
$15.11 AUD $12.59 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 44.45x1.25x46.05 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
44.45
mm
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
46.05
mm
Approx. Loose Circlip OD (Dr)
46.41
mm
+ 0.51 / - 0.00
Radial Wall (S) Approx.
3.00
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
Internal Retaining Rings - 44.45x1.25x46.05 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 40.41 +/- 0.05   Groove Depth (d): 0.79
Additional stock available from USA subject to Prior Sale = 25349
Part Number: RR-175 (PK-5)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$6.95 AUD
$8.35 AUD $6.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 44.45x1.25x46.05 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
44.45
mm
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
46.05
mm
Approx. Loose Circlip OD (Dr)
46.41
mm
+ 0.51 / - 0.00
Internal Retaining Rings - 44.45x1.25x46.05 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.00 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip ID: 40.41 +/- 0.05   Groove Depth (d): 0.79
Additional stock available from USA subject to Prior Sale = 25349
Part Number: RR-175 (PK-5)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$6.95 AUD
$8.35 AUD $6.95 AUD
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 50.8x1.25x52.6 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
50.80
mm
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
52.60
mm
Approx. Loose Circlip OD (Dr)
53.04
mm
+ 0.51 / - 0.00
Radial Wall (S) Approx.
3.25
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
Internal Retaining Rings - 50.8x1.25x52.6 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 46.54 +/- 0.05   Groove Depth (d): 0.89
Additional stock available from USA subject to Prior Sale = 226
Part Number: RR-200 (Each)
60 Available Now | Further orders can be expected around Wed, Jul 01, 2026
$6.68 AUD
$6.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 60 available can be backordered.
Internal Retaining Rings - 50.8x1.25x52.6 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
50.80
mm
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
52.60
mm
Approx. Loose Circlip OD (Dr)
53.04
mm
+ 0.51 / - 0.00
Internal Retaining Rings - 50.8x1.25x52.6 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.25 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip ID: 46.54 +/- 0.05   Groove Depth (d): 0.89
Additional stock available from USA subject to Prior Sale = 226
Part Number: RR-200 (Each)
60 Available Now | Further orders can be expected around Wed, Jul 01, 2026
$6.68 AUD
$6.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

60 Available Now. Backorder if more than 60.
Internal Retaining Rings - 53.98x1.25x55.75 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
53.98
mm
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
55.75
mm
Approx. Loose Circlip OD (Dr)
56.36
mm
+ 0.64 / - 0.00
Radial Wall (S) Approx.
3.25
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.15
Internal Retaining Rings - 53.98x1.25x55.75 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 49.86 +/- 0.05   Groove Depth (d): 0.89
Additional stock available from USA subject to Prior Sale = 7771
Part Number: RR-212 (PK-100)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$22.86 AUD
$27.44 AUD $22.86 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 53.98x1.25x55.75 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
53.98
mm
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
55.75
mm
Approx. Loose Circlip OD (Dr)
56.36
mm
+ 0.64 / - 0.00
Internal Retaining Rings - 53.98x1.25x55.75 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.25 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.15   Approx. Loose Clip ID: 49.86 +/- 0.05   Groove Depth (d): 0.89
Additional stock available from USA subject to Prior Sale = 7771
Part Number: RR-212 (PK-100)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$22.86 AUD
$27.44 AUD $22.86 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 57.15x1.25x59.03 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
57.15
mm
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
59.03
mm
Approx. Loose Circlip OD (Dr)
59.66
mm
+ 0.64 / - 0.00
Radial Wall (S) Approx.
3.51
mm
+/- 0.11
Groove Width (W)
1.47
mm
+/- 0.15
Internal Retaining Rings - 57.15x1.25x59.03 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 52.64 +/- 0.05   Groove Depth (d): 0.94
Additional stock available from USA subject to Prior Sale = 1749
Part Number: RR-225 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$10.05 AUD
$12.05 AUD $10.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 57.15x1.25x59.03 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
57.15
mm
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
59.03
mm
Approx. Loose Circlip OD (Dr)
59.66
mm
+ 0.64 / - 0.00
Internal Retaining Rings - 57.15x1.25x59.03 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.51 mm +/- 0.11    Groove Width (W): 1.47 mm +/- 0.15   Approx. Loose Clip ID: 52.64 +/- 0.05   Groove Depth (d): 0.94
Additional stock available from USA subject to Prior Sale = 1749
Part Number: RR-225 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Wed, Jul 01, 2026
$10.05 AUD
$12.05 AUD $10.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Internal Retaining Rings - 60.33x1.25x62.3 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
60.33
mm
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
62.30
mm
Approx. Loose Circlip OD (Dr)
62.98
mm
+ 0.64 / - 0.00
Radial Wall (S) Approx.
3.51
mm
+/- 0.11
Groove Width (W)
1.47
mm
+/- 0.15
Internal Retaining Rings - 60.33x1.25x62.3 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 55.96 +/- 0.05   Groove Depth (d): 0.99
Deleted Item. Available while stocks last.
Part Number: RR-237 (Each)
60 Available Now | Further orders can be expected around Sat, Jul 18, 2026
$6.00 AUD
$6.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 60 available can be backordered.
Internal Retaining Rings - 60.33x1.25x62.3 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Housing Bore (B)
60.33
mm
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
62.30
mm
Approx. Loose Circlip OD (Dr)
62.98
mm
+ 0.64 / - 0.00
Internal Retaining Rings - 60.33x1.25x62.3 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.51 mm +/- 0.11    Groove Width (W): 1.47 mm +/- 0.15   Approx. Loose Clip ID: 55.96 +/- 0.05   Groove Depth (d): 0.99
Deleted Item. Available while stocks last.
Part Number: RR-237 (Each)
60 Available Now | Further orders can be expected around Sat, Jul 18, 2026
$6.00 AUD
$6.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

60 Available Now. Backorder if more than 60.
