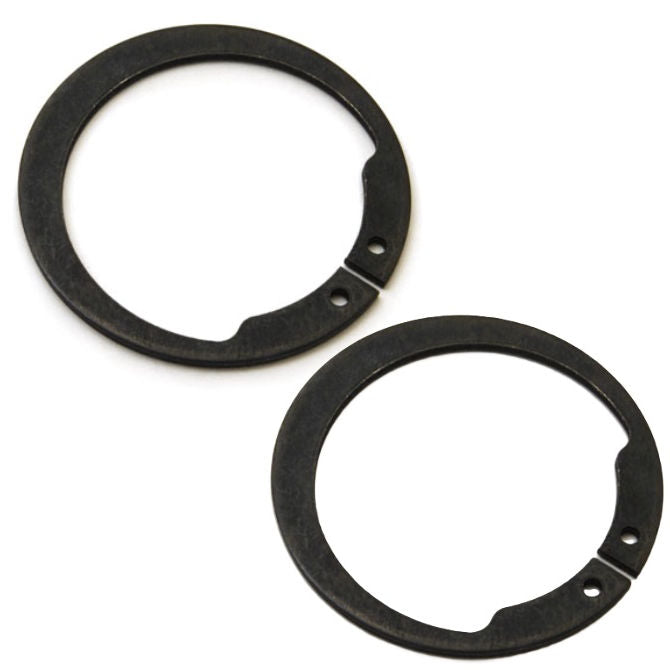

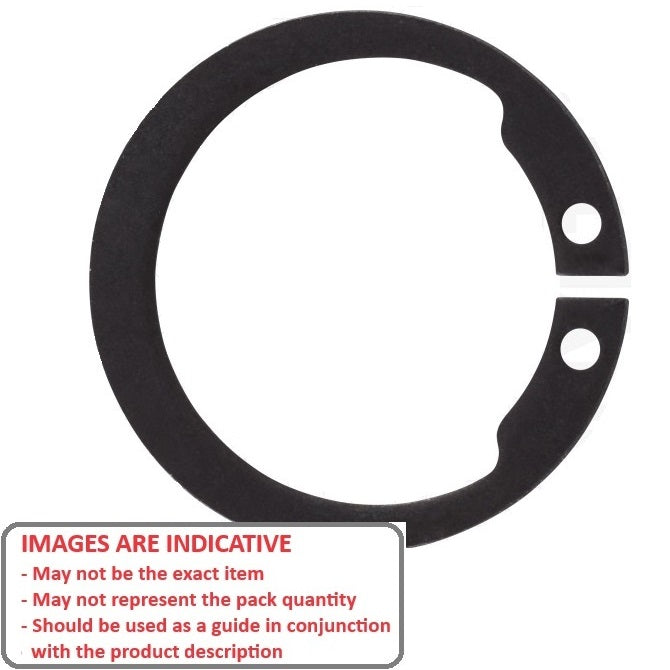

External Circlip 22.23 x 1.07 mm - Inverted Carbon Steel - 22.23 Shaft - MBA (Pack of 50)

External Circlip 22.23 x 1.07 mm - Inverted Carbon Steel - 22.23 Shaft - MBA (Pack of 50)

Out Of Stock!

Regular price $70.50 AUD
Regular price Sale price $70.50 AUD
Sale Sold out
Shipping calculated at checkout.
Price does not include taxes or shipping
Pre-Order now!

Backorders for more than the stock quantity are expected before Aug 16, 2024

Product Details:

Item is a descriptive link for MBACCE02223CV

Inverted External Circlip

Sub Category: Circlips - External - Inverted

22.23 x 1.07mm

Additional stock available from USA subject to prior sale = 7271

Shaft Diameter (Ds): 22.23mm
Clip Thickness (T): 1.07mm
+/- 0.076

Groove Dia. (Dg): 20.85mm
+/- 0.051

Loose Circlip ID (A): 20.57mm
Groove Width (W): 1.17mm

Material: Spring Steel
Radial Wall (S) min/max: 1.63mm

Brand: MBA
Country of Origin: US

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
