W0200-T-036-015-DP4 (Each)
Thrust Washers - 20x36x1.5 mm DP4 Type - DP4 Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportScrews
Order 50 or more
for $26.71 AUD Each
20x36x1.5 mm Thrust Washers - DP4 - Sold per Each:
Base Category: Washers - Thrust
Top Level Category: Washers - Thrust - DP4 Type
Product Details

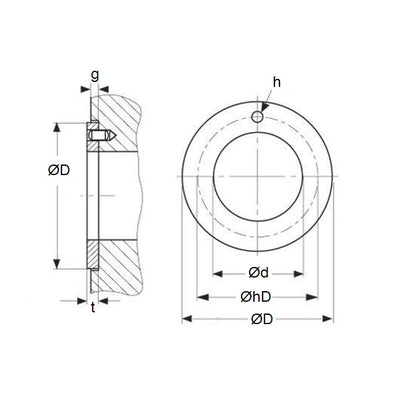

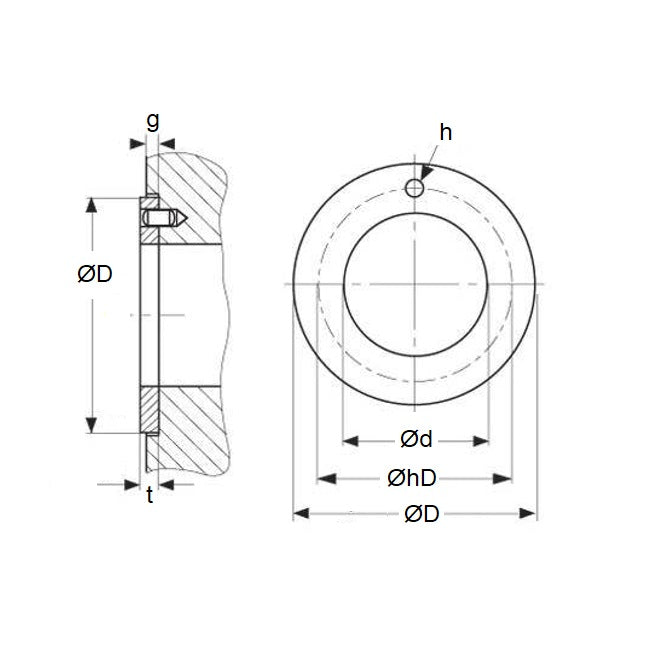

Nominal Inside Diameter (d1): 20.00mm(20.00mm is 0.787 in.)
DP4
- Nominal Inside Diameter (d1): 20.00mm
(20.00mm is 0.787 in.)
- Nominal Outside Diameter (Do): 36.00mm
(36.00mm is 1.417 in.)
- Thickness ST: 1.50mm
(1.50mm is 0.059 in.)
- Dowel Hole Dia dD: 3.000mm
- Dowel Hole PCD Dp: 28.000mm
- Recess Depth Ha: 1.000mm
- Recess Diameter: 36.000mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 1262N14
- Glacier® SF-WC20-1D
- Glacier® WC-18-DP4
- SFWC201D
- WC18DP4
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0200T036015DP4, W0200T036
