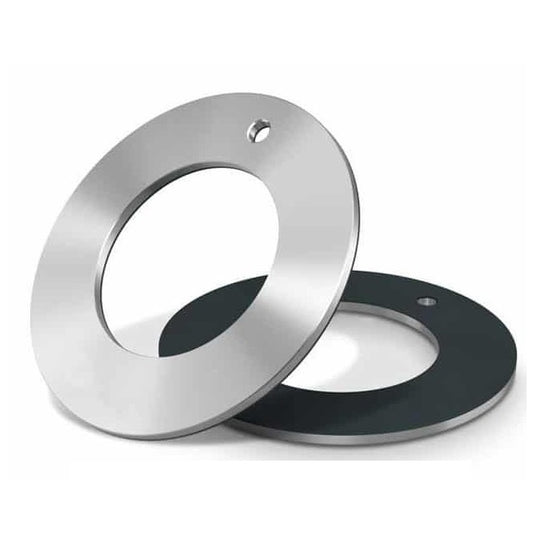

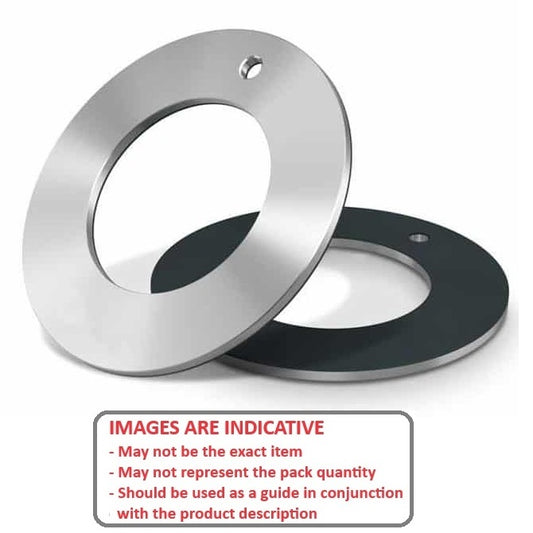

Collection: Washers - Thrust - DP4 Type

Washers (With Images)

Thrust

DP4 Type

9 Products in this selection

Wear resistant helping to prevent wear deposits in the lubricating oil after long working periods. Designed for use in oil pumps and dampers.
Operating Temperature -200^o to 280^o Celsius. Maximum load 250N per mm2.
Low static and dynamic friction coefficient, Suitable for sliding, oscillating, reiprocating and rotating applications.
High reistance to be cavitation and flow erosion damage of the polymer bearing surface by the lubricant, Excellent wear resistant.
Also suitable for use with non-lubricating fluids and in light duty unlubricated applications, Lead free.

Additional resources:
Screws

Nom. ID (D1)	Outside Dia Do	Thickness ST	Dowel Hole Dia dD	Dowel Hole PCD Dp	Recess Depth Ha
10.00 mm	20.00 mm	1.50 mm	1.500 mm	15.000 mm	1.000 mm
Material: DP4 Recess Diameter: 20.000 mm
Part Number: W0100-T-020-015-DP4 Thrust Washers - 10 mm x 20 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $24.32 AUD Regular price Sale price $24.32 AUD Unit price per Each
Nom. ID (D1)	Outside Dia Do	Thickness ST	Dowel Hole Dia dD	Indicative Image
10.00 mm	20.00 mm	1.50 mm	1.500 mm
Material: DP4 Dowel Hole PCD Dp: 15.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 20.000 mm
Part Number: W0100-T-020-015-DP4 Thrust Washers - 10 mm x 20 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $24.32 AUD Regular price Sale price $24.32 AUD Unit price per Each View the product page first if you are unsure.
W0100-T-020-015-DP4 --- Thrust Washers - 10 mm x 20 mm x 1.5 mm DP4 W0100-T-020-015-DP4 --- Thrust Washers - 10 mm x 20 mm x 1.5 mm DP4 Regular price $24.32 AUD Regular price Sale price $24.32 AUD Unit price per Out of stock! Backorder Now
12.00 mm	24.00 mm	1.50 mm	1.500 mm	18.000 mm	1.000 mm
Material: DP4 Recess Diameter: 24.000 mm
Part Number: W0120-T-024-015-DP4 Thrust Washers - 12 mm x 24 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $35.23 AUD Regular price Sale price $35.23 AUD Unit price per Each
12.00 mm	24.00 mm	1.50 mm	1.500 mm
Material: DP4 Dowel Hole PCD Dp: 18.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 24.000 mm
Part Number: W0120-T-024-015-DP4 Thrust Washers - 12 mm x 24 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $35.23 AUD Regular price Sale price $35.23 AUD Unit price per Each View the product page first if you are unsure.
W0120-T-024-015-DP4 --- Thrust Washers - 12 mm x 24 mm x 1.5 mm DP4 W0120-T-024-015-DP4 --- Thrust Washers - 12 mm x 24 mm x 1.5 mm DP4 Regular price $35.23 AUD Regular price Sale price $35.23 AUD Unit price per Out of stock! Backorder Now
18.00 mm	32.00 mm	1.50 mm	2.000 mm	25.000 mm	1.000 mm
Material: DP4 Recess Diameter: 32.000 mm
Part Number: W0180-T-032-015-DP4 Thrust Washers - 18 mm x 32 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $34.05 AUD Regular price Sale price $34.05 AUD Unit price per Each
18.00 mm	32.00 mm	1.50 mm	2.000 mm
Material: DP4 Dowel Hole PCD Dp: 25.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 32.000 mm
Part Number: W0180-T-032-015-DP4 Thrust Washers - 18 mm x 32 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $34.05 AUD Regular price Sale price $34.05 AUD Unit price per Each View the product page first if you are unsure.
W0180-T-032-015-DP4 --- Thrust Washers - 18 mm x 32 mm x 1.5 mm DP4 W0180-T-032-015-DP4 --- Thrust Washers - 18 mm x 32 mm x 1.5 mm DP4 Regular price $34.05 AUD Regular price Sale price $34.05 AUD Unit price per Out of stock! Backorder Now
20.00 mm	36.00 mm	1.50 mm	3.000 mm	28.000 mm	1.000 mm
Material: DP4 Recess Diameter: 36.000 mm
Part Number: W0200-T-036-015-DP4 Thrust Washers - 20 mm x 36 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $39.32 AUD Regular price Sale price $39.32 AUD Unit price per Each
20.00 mm	36.00 mm	1.50 mm	3.000 mm
Material: DP4 Dowel Hole PCD Dp: 28.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 36.000 mm
Part Number: W0200-T-036-015-DP4 Thrust Washers - 20 mm x 36 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $39.32 AUD Regular price Sale price $39.32 AUD Unit price per Each View the product page first if you are unsure.
W0200-T-036-015-DP4 --- Thrust Washers - 20 mm x 36 mm x 1.5 mm DP4 W0200-T-036-015-DP4 --- Thrust Washers - 20 mm x 36 mm x 1.5 mm DP4 Regular price $39.32 AUD Regular price Sale price $39.32 AUD Unit price per Out of stock! Backorder Now
26.00 mm	44.00 mm	1.50 mm	3.000 mm	35.000 mm	1.000 mm
Material: DP4 Recess Diameter: 44.000 mm
Part Number: W0260-T-044-015-DP4 Thrust Washers - 26 mm x 44 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $51.05 AUD Regular price Sale price $51.05 AUD Unit price per Each
26.00 mm	44.00 mm	1.50 mm	3.000 mm
Material: DP4 Dowel Hole PCD Dp: 35.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 44.000 mm
Part Number: W0260-T-044-015-DP4 Thrust Washers - 26 mm x 44 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $51.05 AUD Regular price Sale price $51.05 AUD Unit price per Each View the product page first if you are unsure.
W0260-T-044-015-DP4 --- Thrust Washers - 26 mm x 44 mm x 1.5 mm DP4 W0260-T-044-015-DP4 --- Thrust Washers - 26 mm x 44 mm x 1.5 mm DP4 Regular price $51.05 AUD Regular price Sale price $51.05 AUD Unit price per Out of stock! Backorder Now
28.00 mm	48.00 mm	1.50 mm	4.000 mm	38.000 mm	1.000 mm
Material: DP4 Recess Diameter: 48.000 mm
Part Number: W0280-T-048-015-DP4 Thrust Washers - 28 mm x 48 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $54.05 AUD Regular price Sale price $54.05 AUD Unit price per Each
28.00 mm	48.00 mm	1.50 mm	4.000 mm
Material: DP4 Dowel Hole PCD Dp: 38.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 48.000 mm
Part Number: W0280-T-048-015-DP4 Thrust Washers - 28 mm x 48 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $54.05 AUD Regular price Sale price $54.05 AUD Unit price per Each View the product page first if you are unsure.
W0280-T-048-015-DP4 --- Thrust Washers - 28 mm x 48 mm x 1.5 mm DP4 W0280-T-048-015-DP4 --- Thrust Washers - 28 mm x 48 mm x 1.5 mm DP4 Regular price $54.05 AUD Regular price Sale price $54.05 AUD Unit price per Out of stock! Backorder Now
32.00 mm	54.00 mm	1.50 mm	4.000 mm	43.000 mm	1.000 mm
Material: DP4 Recess Diameter: 54.000 mm
Part Number: W0320-T-054-015-DP4 Thrust Washers - 32 mm x 54 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $65.05 AUD Regular price Sale price $65.05 AUD Unit price per Each
32.00 mm	54.00 mm	1.50 mm	4.000 mm
Material: DP4 Dowel Hole PCD Dp: 43.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 54.000 mm
Part Number: W0320-T-054-015-DP4 Thrust Washers - 32 mm x 54 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $65.05 AUD Regular price Sale price $65.05 AUD Unit price per Each View the product page first if you are unsure.
W0320-T-054-015-DP4 --- Thrust Washers - 32 mm x 54 mm x 1.5 mm DP4 W0320-T-054-015-DP4 --- Thrust Washers - 32 mm x 54 mm x 1.5 mm DP4 Regular price $65.05 AUD Regular price Sale price $65.05 AUD Unit price per Out of stock! Backorder Now
38.00 mm	62.00 mm	1.50 mm	4.000 mm	50.000 mm	1.000 mm
Material: DP4 Recess Diameter: 62.000 mm
Part Number: W0380-T-062-015-DP4 Thrust Washers - 38 mm x 62 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $61.59 AUD Regular price Sale price $61.59 AUD Unit price per Each
38.00 mm	62.00 mm	1.50 mm	4.000 mm
Material: DP4 Dowel Hole PCD Dp: 50.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 62.000 mm
Part Number: W0380-T-062-015-DP4 Thrust Washers - 38 mm x 62 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $61.59 AUD Regular price Sale price $61.59 AUD Unit price per Each View the product page first if you are unsure.
W0380-T-062-015-DP4 --- Thrust Washers - 38 mm x 62 mm x 1.5 mm DP4 W0380-T-062-015-DP4 --- Thrust Washers - 38 mm x 62 mm x 1.5 mm DP4 Regular price $61.59 AUD Regular price Sale price $61.59 AUD Unit price per Out of stock! Backorder Now
42.00 mm	66.00 mm	1.50 mm	4.000 mm	54.000 mm	1.000 mm
Material: DP4 Recess Diameter: 66.000 mm
Part Number: W0420-T-066-015-DP4 Thrust Washers - 42 mm x 66 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $84.05 AUD Regular price Sale price $84.05 AUD Unit price per Each
42.00 mm	66.00 mm	1.50 mm	4.000 mm
Material: DP4 Dowel Hole PCD Dp: 54.000 mm Recess Depth Ha: 1.000 mm Recess Diameter: 66.000 mm
Part Number: W0420-T-066-015-DP4 Thrust Washers - 42 mm x 66 mm x 1.5 mm Out of Stock \| Backorder Now \| Orders can be expected around Sun, Apr 06, 2025 Regular price $84.05 AUD Regular price Sale price $84.05 AUD Unit price per Each View the product page first if you are unsure.
W0420-T-066-015-DP4 --- Thrust Washers - 42 mm x 66 mm x 1.5 mm DP4 W0420-T-066-015-DP4 --- Thrust Washers - 42 mm x 66 mm x 1.5 mm DP4 Regular price $84.05 AUD Regular price Sale price $84.05 AUD Unit price per Out of stock! Backorder Now
