W0200-ALN-CB (Each)
Self Aligning Washers - 20x23.2x36 mm Components - Carbon Steel - Hardened Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Self Aligning Washer Sets
Screws
Couldn't load pickup availability
20x23.2x36 mm Self Aligning Washers - Carbon Steel - Hardened - Sold per Each:
Base Category: Washers - Self Aligning
Top Level Category: Washers - Self Aligning - Components - Hardened Steel
Product Details
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Suitable Shaft or Bolt Size: 20.00mm
(20.00mm is 0.787 in.)
Carbon Steel - Hardened
- Suitable Shaft or Bolt Size: 20.00mm
(20.00mm is 0.787 in.)

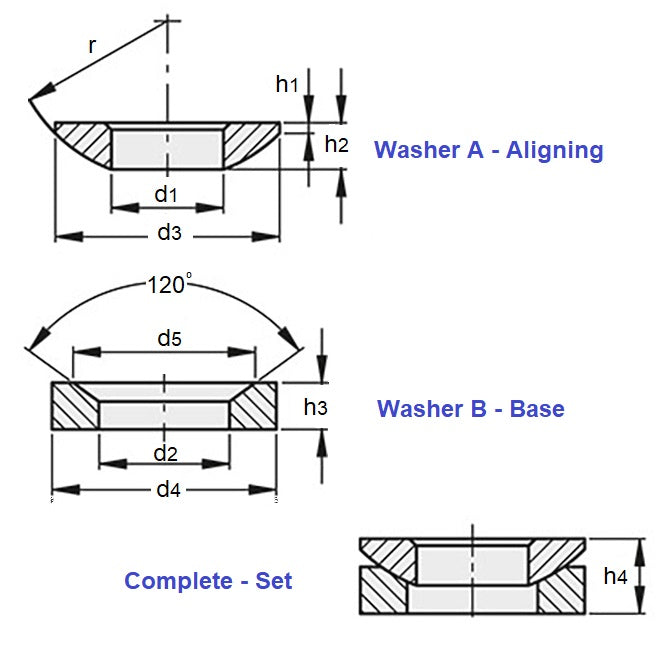

- Bore Size (d1 or d2): 23.2mm
(23.2mm is 0.913 in.)
- OD (d3): 36.00mm
(36.00mm is 1.417 in.)
- Thickness (h2 or h3): 7.5mm
- Overall Thickness (h4): 11.5mm
- Static Load Rating: 117Max. kN
- Type: Washer B (Base)
- Actual ID (Ref): 20mm
- Standard: DIN 6319D
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Product Compliance and Data
Similar to
- Reid Tool® AMF-198
- D23.2X36
- AMF198
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0200ALNCB, W0200ALN
