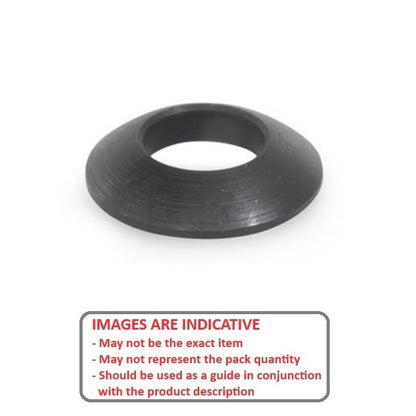

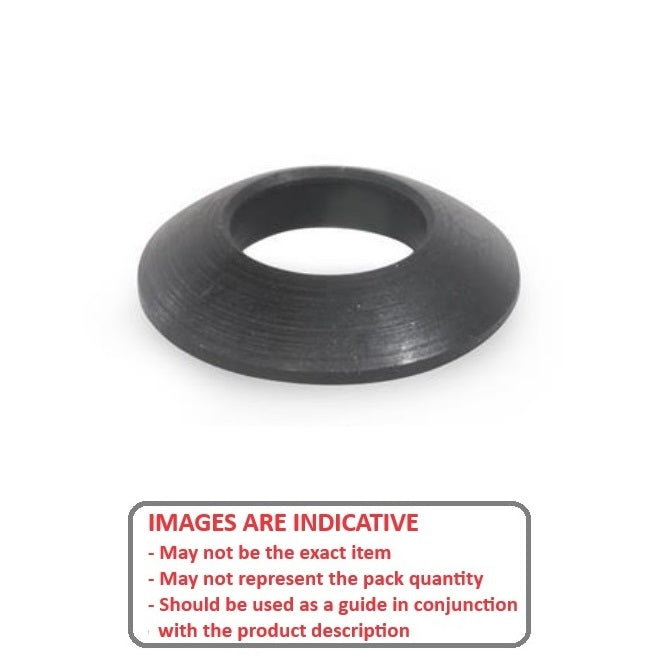

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

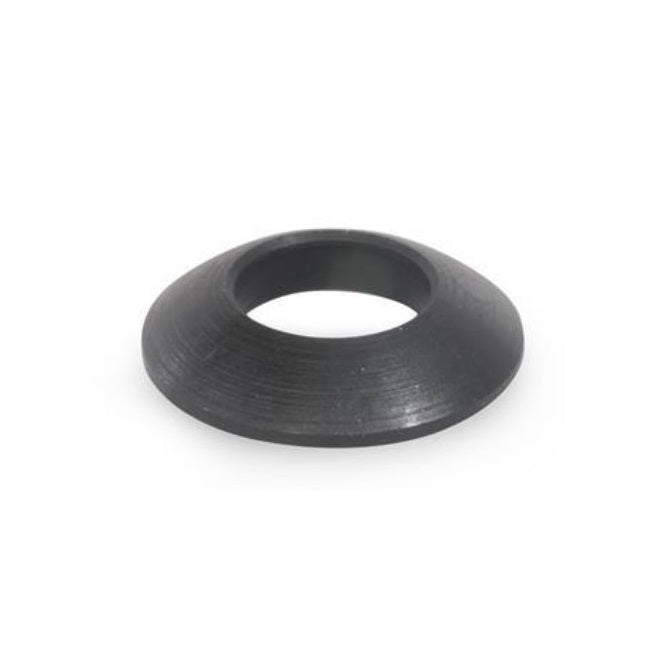

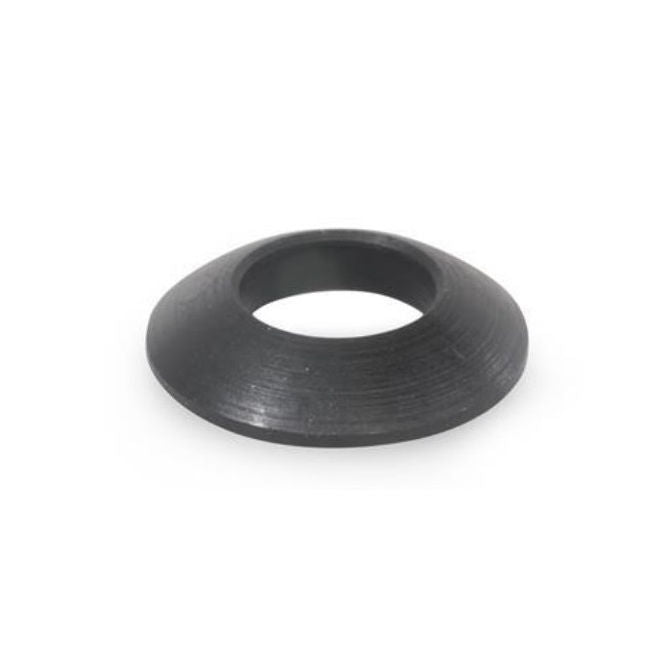

Washers - 20 mm x 21 mm x 36 mm
W0200-ALN-CA

MBA

Additional resources:
Screws
Price:
$4.88 AUD
$4.88 AUD
Each
Qty: 5 available now
Only 5 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Washers - Self Aligning

Top Level Category: Washers - Self Aligning - Components - Hardened Steel

Product Details:

Suits Shaft or Bolt Size: 20.00mm
Hardened Steel

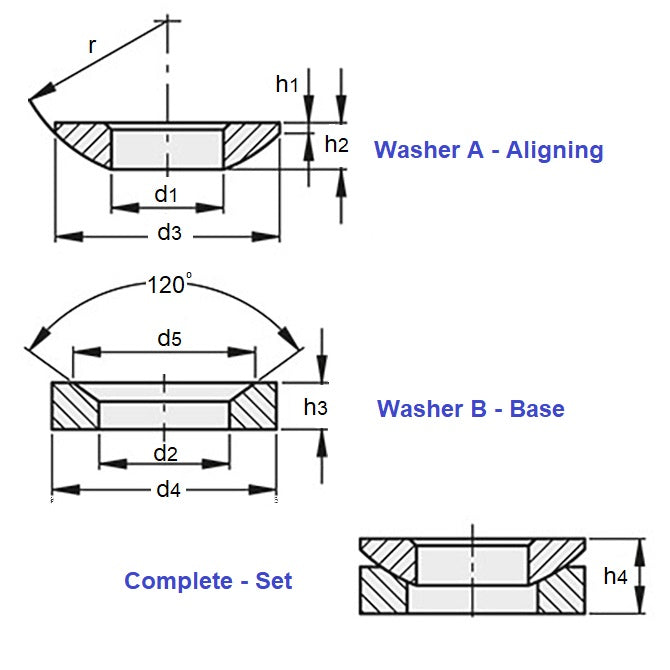

  • Bore Size (d1 or d2): 21mm
  • OD (d3): 36.00mm
  • Thickness (h2 or h3): 6.3mm
  • Overall Thickness (h4): 11.5mm
  • Radius (r): 27.0mm
  • Static Load Rating: 117Max. kN
  • Type: Washer A (Aligning)
  • Actual ID (Ref): 20mm
  • Standard: DIN 6319C

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternatives: AMF-191, C21X36

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
