ECL-0161-0191-S15-KR (Each)

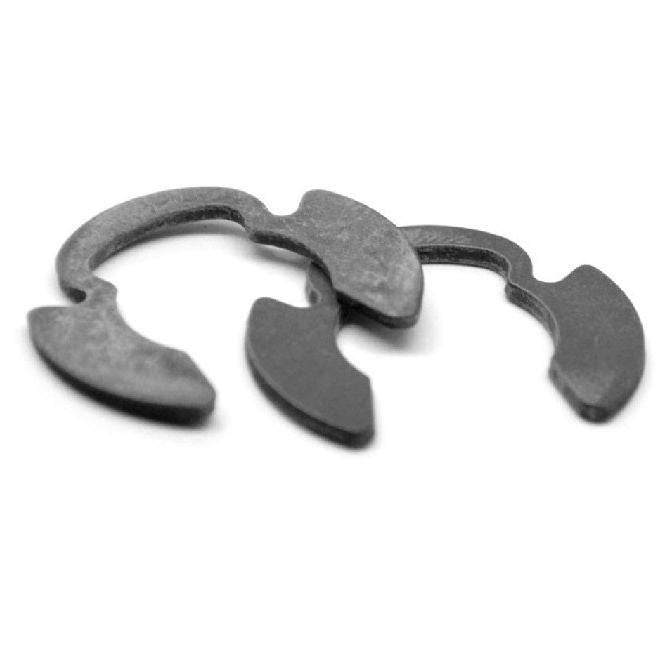

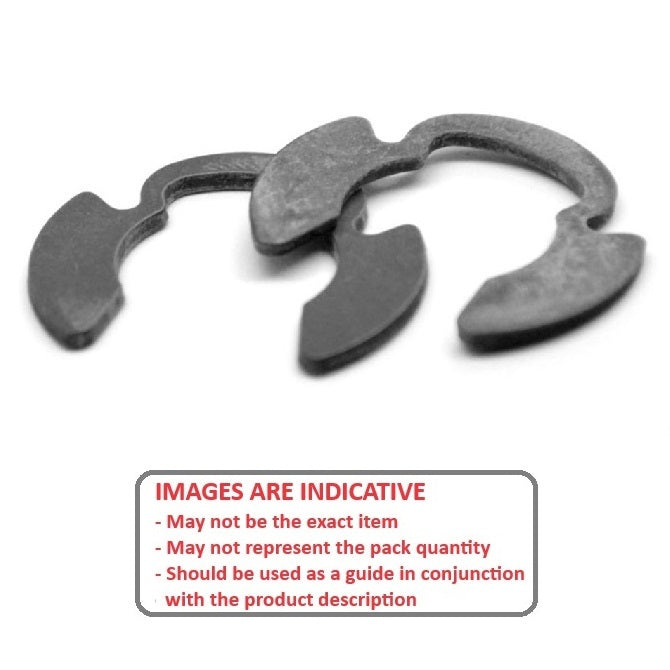

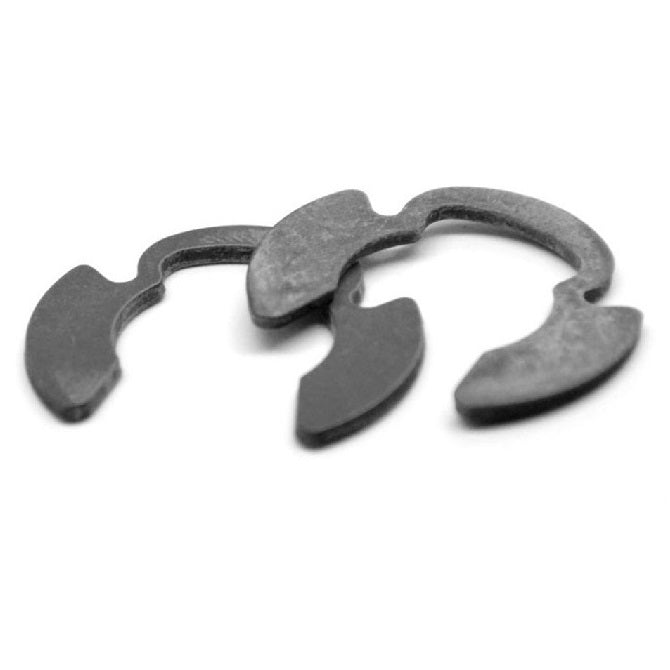

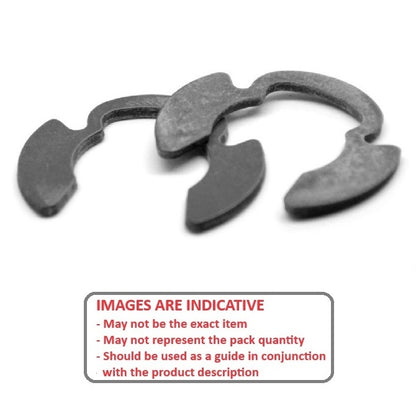

E-Clips Retaining Rings - 19.05x16.05x1.58 mm Klipring - Stainless Steel Grade PH15-7 Mo E-Clip
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportAssortment Kits
Order 50 or more
for $3.07 AUD Each
Couldn't load pickup availability
3/4x1/16 inch E-Clip - 19.05x16.05x1.58 mm E-Clips Retaining Rings - Stainless Steel Grade PH15-7 Mo - Sold per Each:
Base Category: Retaining Rings - E-Clips
Top Level Category: Retaining Rings - E-Clips - Klipring
Product Details
Additional stock available from USA subject to Prior Sale = 3231

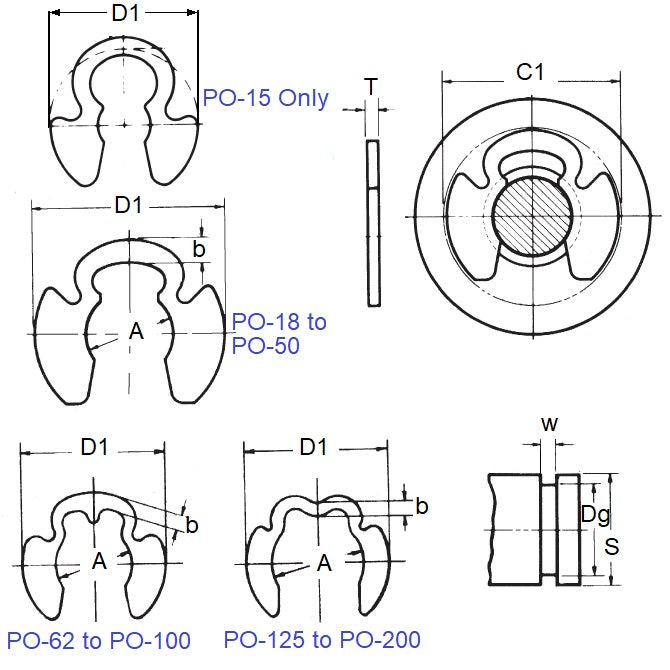

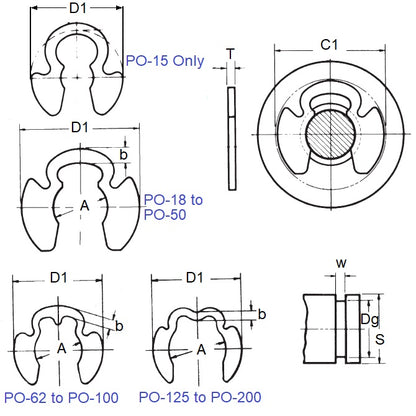

Minimum Rec. Shaft Dia (S): 19.05mm
+ 3.05 / - 0.00
(19.05mm is 0.75 in.)
Stainless Steel Grade PH15-7 Mo
- Minimum Rec. Shaft Dia (S): 19.05mm
+ 3.05 / - 0.00
(19.05mm is 0.75 in.)
- Groove Dia. (Dg): 16.05mm
+/- 0.252
(16.05mm is 0.632 in.)
- Clip Thickness (T): 1.58mm
+/- 0.076
(1.58mm is 0.062 in.)
- Clip OD Loose (D1): 15.09mm
- Groove Width (W): 1.73mm
- Maximum Rec. Shaft Dia (S): 22.10
- Clip OD in groove (C1): 29.72mm
- Min. Extension (n): 3.00
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Waldes® 5304-075-SS
- ALTPART
- 94751A778
- Huyett® PO-075-SS
- NoCor® PO-075-SS
- Rotor Clip® PO-075-SS
- PO075SS
- 5304075SS
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
ECL01610191S15KR, ECL01610191
