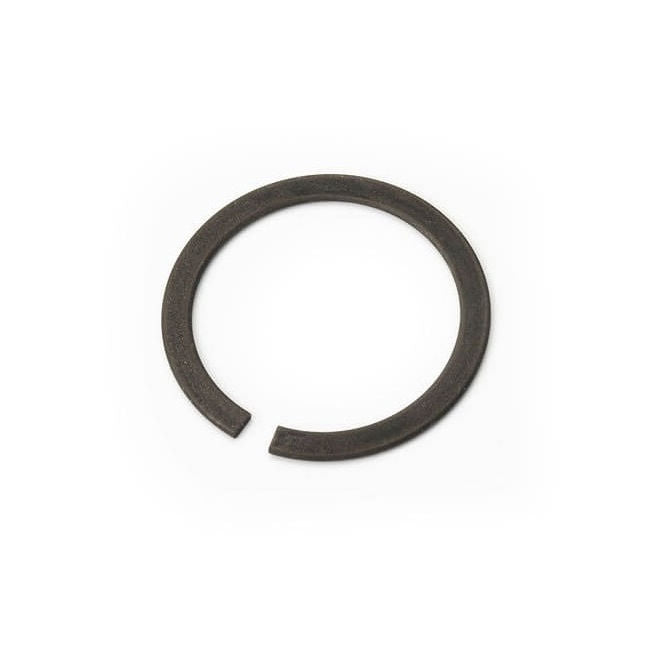

WRE-0191-SQ-C (PK-50)
External Retaining Rings - 19.05x1.58x18.24 mm Snap Rings - Carbon Spring Steel
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Snap Rings and Spiral Rings PDF
Order 50 or more packs of 50 (2500 pcs)
for $29.01 AUD per 50 pack
3/4x1/16 inch Ring - 19.05x1.58x18.24 mm External Retaining Rings - Carbon Spring Steel - Sold per pack of 50:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Snap Rings - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 8963

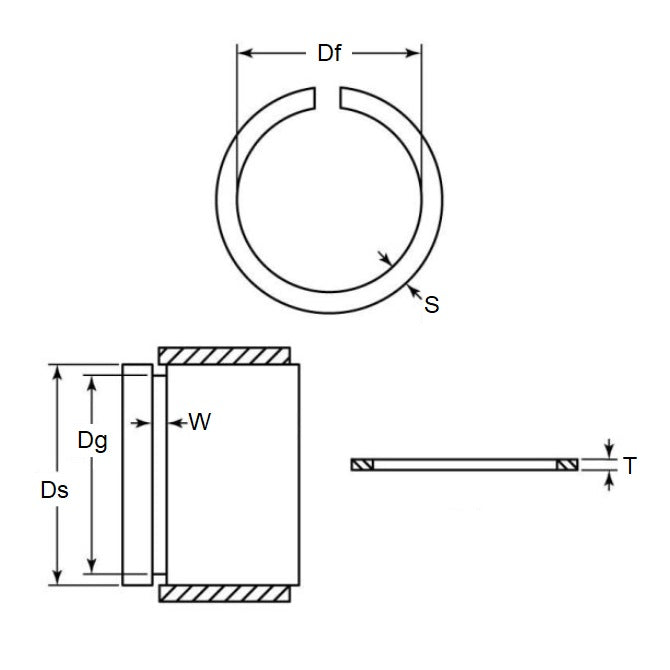

Shaft or Bearing OD (d1): 19.05mm
(19.05mm is 0.75 in.)
Carbon Spring Steel
- Shaft or Bearing OD (d1): 19.05mm
(19.05mm is 0.75 in.)
- Clip Thickness (T): 1.58mm
+/- 0.05
(1.58mm is 0.062 in.)
- Groove Dia. (Dg): 18.24mm
+ 0.08 / - 0.00
(18.24mm is 0.718 in.)
- Approx. Loose Circlip ID (A): 18.09mm
+ 0.00 / - 0.65
- Radial Wall (S) Approx.: 1.58mm
+/- 0.05
- Groove Width (W): 1.75mm
- Approx. Loose Clip OD: 21.25
- Info: Axial Assembly - Closed Gap
- Section Profile: Square Section
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Eaton 300-130
- Arcon® XSC-130
- Huyett® XSC-130
- NoCor® XSC-130
- XSC130
- A0700-130
- A0700130
- 300130
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WRE0191SQC, WRE0191
