WRE-0175-RD-C (100 Pcs)

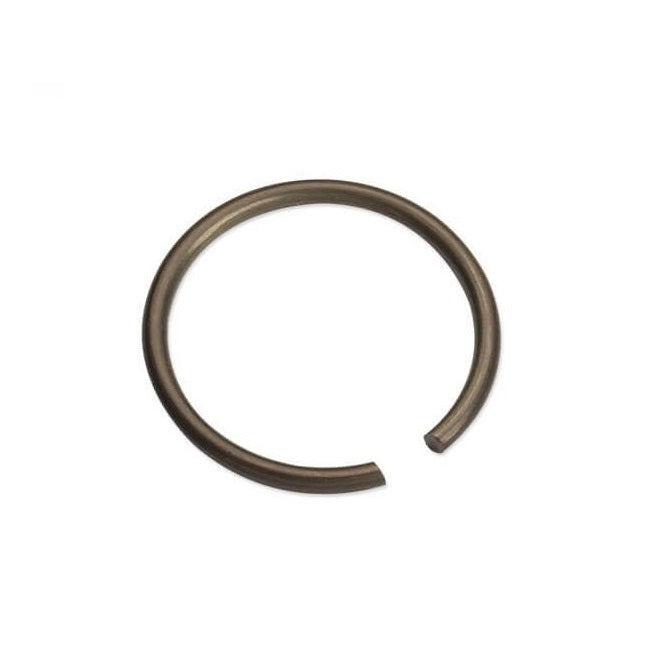

External Retaining Rings - 17.48x1.3x16.64 mm Round Wire - Carbon Spring Steel
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportAnderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Backorder
Order 50 or more pack (5000 pcs) for $7.73 AUD per 100
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Round Wire
Product Details
Additional stock available from USA subject to Prior Sale = 3153
Shaft Diameter (Ds): 17.48mm
(17.48mm is 0.688 in.)
Carbon Spring Steel
- Clip Thickness (T): 1.30mm
+/- 0.06
(1.30mm is 0.051 in.)
- Groove Dia. (Dg): 16.64mm
+ 0.08 / - 0.00
(16.64mm is 0.655 in.)
- Approx. Loose Circlip ID (A): 16.49mm
- Radial Wall (S) min/max: 16.64mm
- Groove Width (W): 0.14mm
- Free Outside Dia (Dr): 19.09
- Section Profile: Round Section
- Info: Axial Assembly - Closed Gap
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Eaton 100-328
- Arcon XRC-328
- NoCor XRC-328
- XRC328
- 100328
- A0900-328
- A0900328
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
