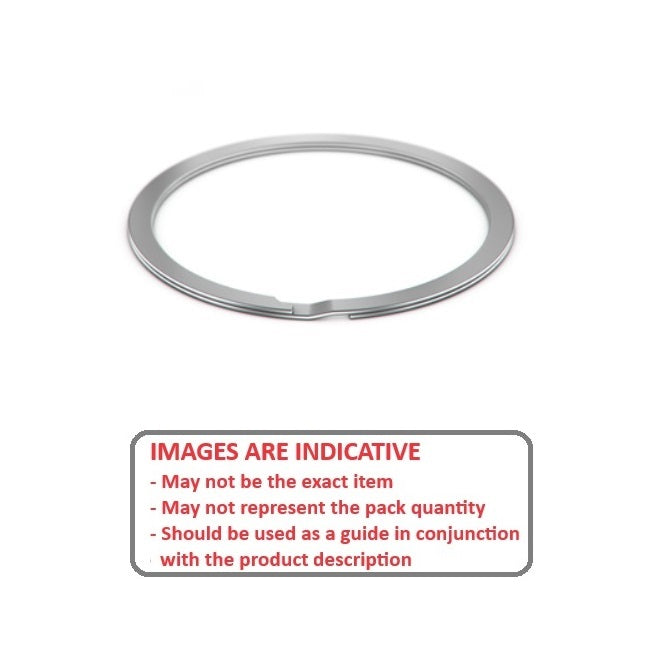

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

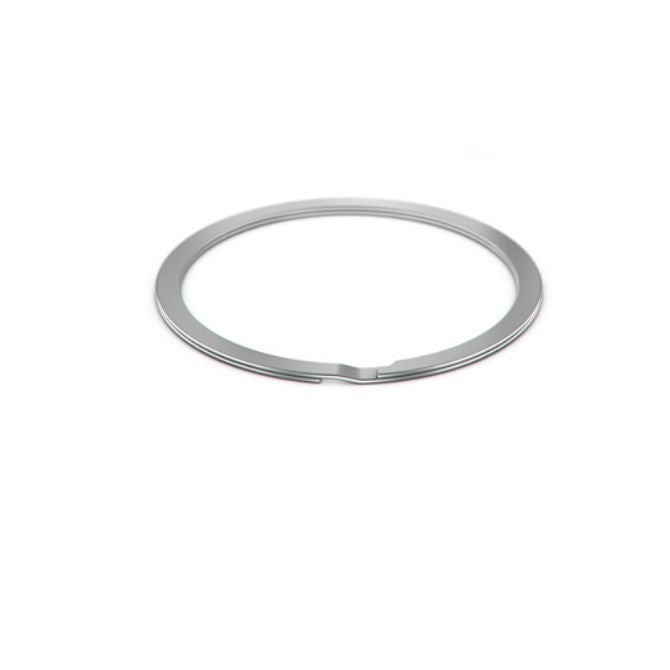

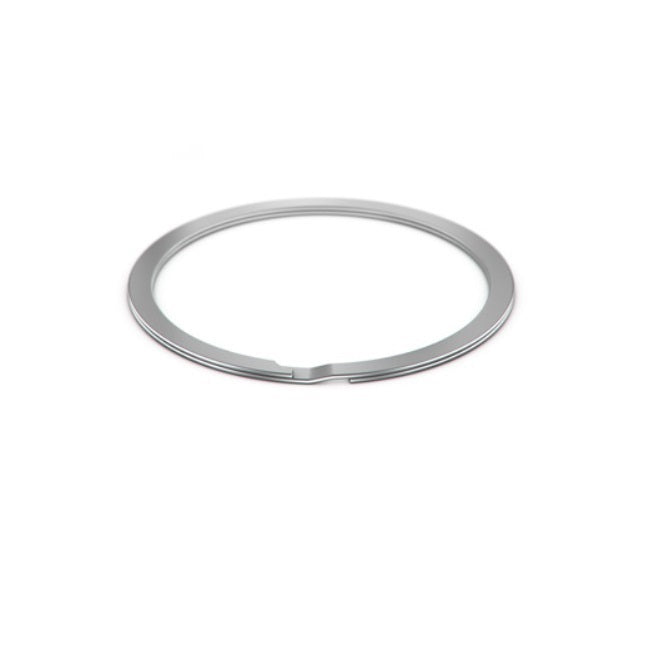

Spiral - 152.4 mm x 1.83 mm x 155.96 mm
RS-600 (5 Pcs)

Name: 1201352 | RS-600 (5 Pcs) --- Spiral - 152.4 mm x 1.83 mm x 155.96 mm
Brand: MBA
SKU: RS600
Price: 24.77 AUD
Availability: InStock

MBA

Category: Spiral Rings - External - Medium Duty - Carbon Steel

Additional resources:
Snap Rings
Spiral Rings and Snap Rings PDF

Price:

$24.77 AUD

per 5
Out Of Stock
Order 50 or more (250 pcs) for $22.29 AUD per 5

Pre-Order now! Backorders for more than the stock quantity are expected before Feb 21, 2025

Quantity

Base Category: Spiral Rings - External

Top Level Category: Spiral Rings - External - Medium Duty - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 679

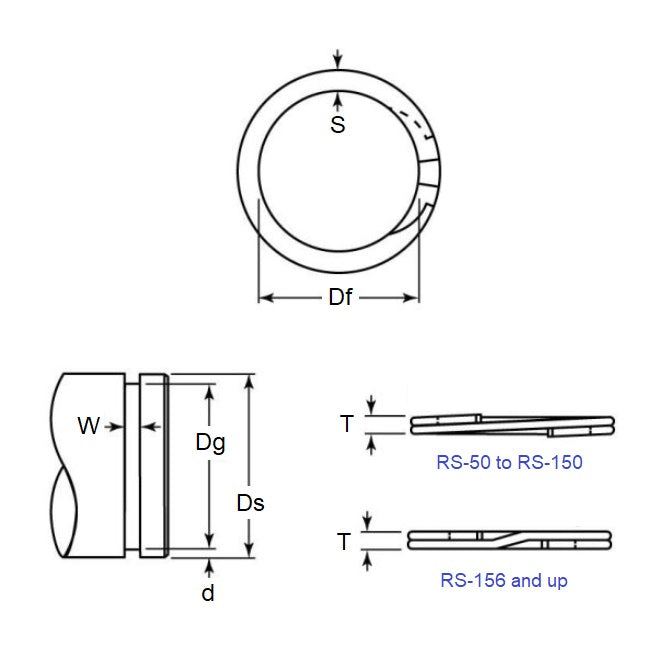

Shaft Dia. (Ds): 152.40mm
Spring Steel

Thickness (T): 1.83mm
_+/-0.10
Approx. Free OD: 155.96mm
Free ID Max. (Df): 143.26mm
_+0.00/-1.27
Radial Wall (S): 6.35mm
_+/-0.13
Groove Dia. (Dg): 148.52mm
_+/-0.17
Groove Width (W): 2.07mm
_+/-0.06
Groove Depth (d): 1.96

Brand: MBA
Country of Origin: US

Alternatives: RS-600, WS-600

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
