CCE-01588H-C (100 Pcs)

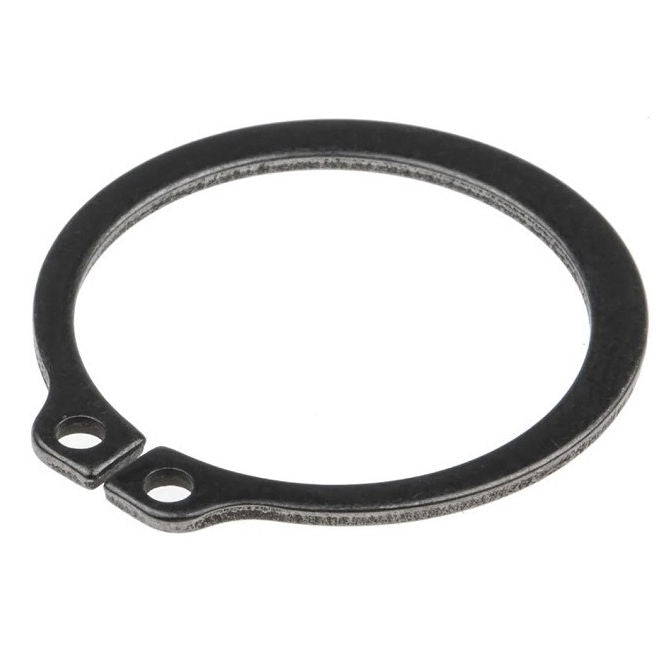

External Retaining Rings - 15.88x1.27x14.94 mm - Carbon Steel

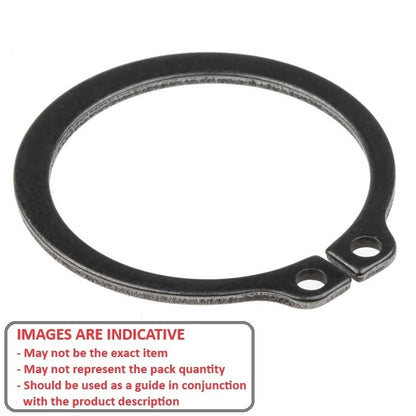

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Price:
$53.05 AUD
$63.65 AUD $53.05 AUD
per 100
Out Of Stock
Order 50 or more (5000 pcs) for $47.75 AUD per 100
Pre-Order now! Backorders for more than the stock quantity are expected before Jun 19, 2025

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Circlips - Standard - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 15771


Shaft Diameter (Ds): 15.88mm
(15.88mm is 0.625 in.)

Carbon Steel
  • Clip Thickness (T): 1.27mm
    + 0.025 / - 0.076
    (1.27mm is 0.05 in.)
  • Groove Dia. (Dg): 14.94mm
    +/- 0.051
    (14.94mm is 0.588 in.)
  • Approx. Loose Circlip ID (A): 14.61mm
  • Groove Width (W): 14.22mm
  • Clearance on Shaft (C1): 22.86mm
  • Clearance in Groove (C1): 21.84mm
  • Min. Lug Diameter (h): 1.22mm
  • Min. Extension (n): 1.45
  • Standard: MIL-3217

Brand: MBA
Country of Origin: US

Alternative Parts Include: 98585A112, N1460-0062APP, N14600062, N1460-0062, N14600062APP, SHR-062, SHR062, ALTPART, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
