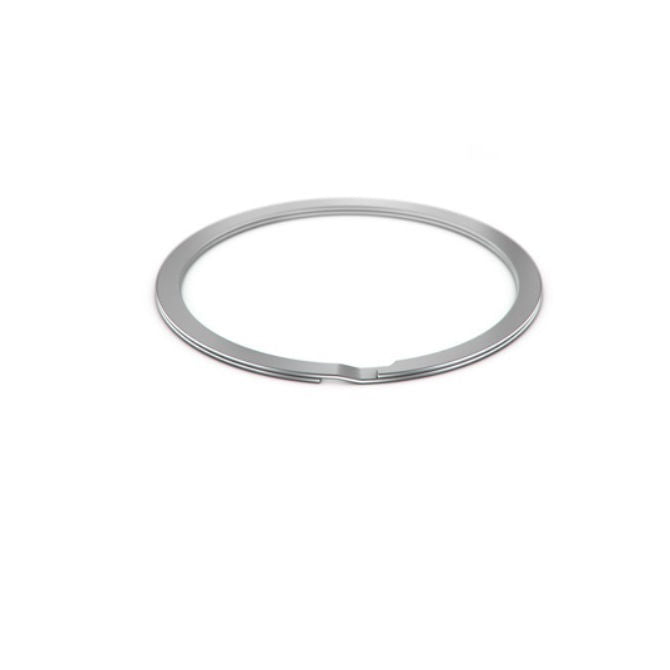

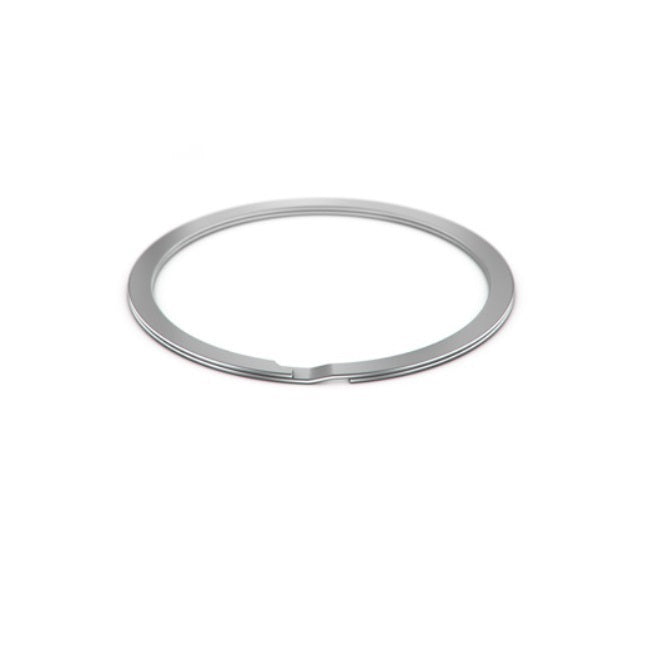

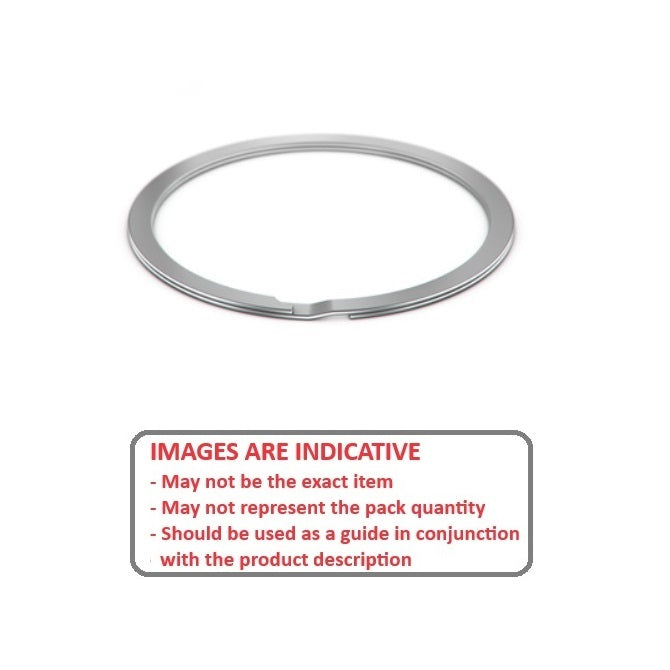

Spiral - 15.88 mm x 0.64 mm x 15.1 mm
RS-062 (2 Pcs)
Snap Rings
Spiral Rings and Snap Rings PDF
Qty: 90 available now (180 pcs)
Order 50 or more (100 pcs) for $8.55 AUD per 2
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

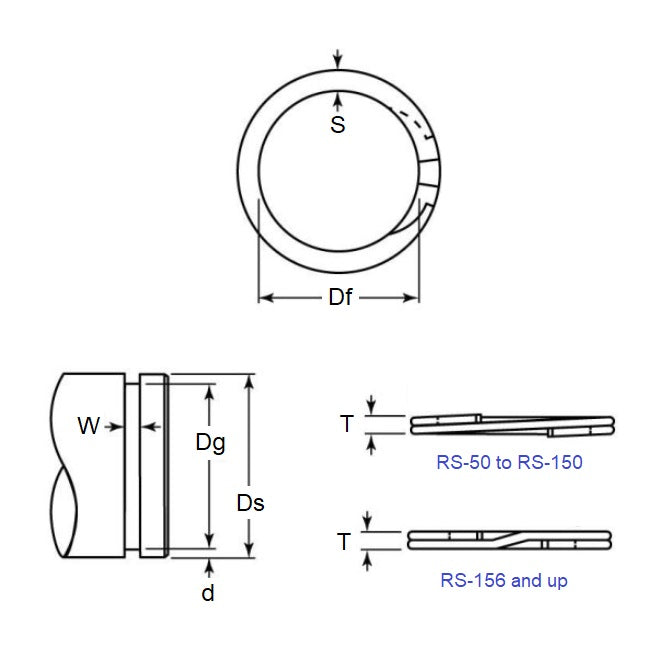

Product Details:Shaft Diameter (Ds): 15.88mm
Spring Steel
- Clip Thickness (T): 0.64mm
+/- 0.06
- Groove Dia. (Dg): 15.10mm
- Approx. Loose Circlip ID (A): 14.93mm
+ 0.00 / - 0.33
- Radial Wall (S): 1.40mm
+/- 0.10
- Groove Width (W): 0.80mm
+/- 0.06
- Approx. Loose Clip OD: 17.73
+/- 0.04
- Groove Depth (d): 0.41
Brand: MBA
Country of Origin: US
Alternatives: 92623A120, RS-062, WS-0
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
