WRE-0140-RD (PK-50)

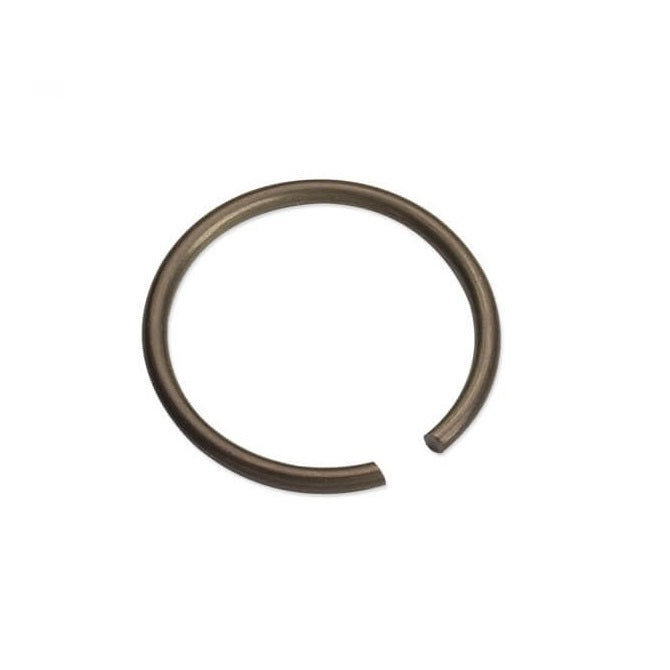

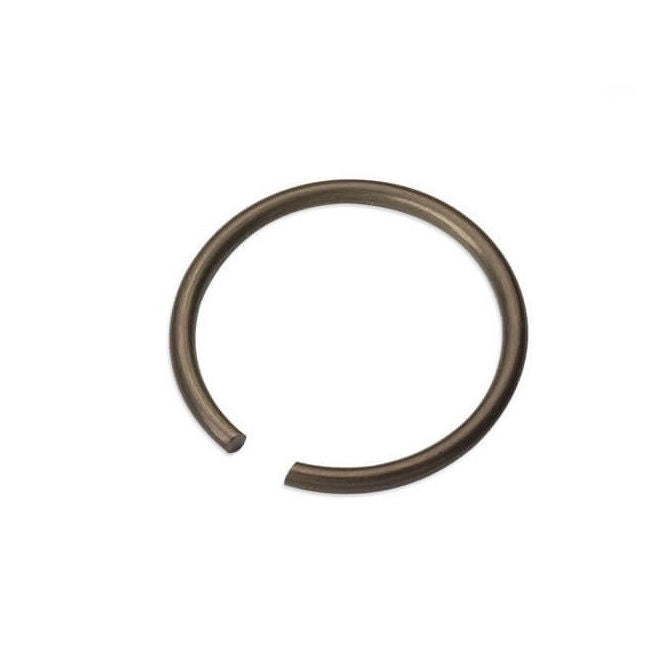

External Retaining Rings - 14x1x13 mm Round Wire - Carbon Spring Steel Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportAnderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Order 50 or more packs of 50 (2500 pcs)
for $64.67 AUD per 50 pack
14x1x13 mm External Retaining Rings - Carbon Spring Steel - Sold per pack of 50:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Round Wire
Product Details
Additional stock available from USA subject to Prior Sale = 8654
Shaft Diameter (Ds): 14.00mm
(14.00mm is 0.551 in.)
Carbon Spring Steel
- Shaft Diameter (Ds): 14.00mm
(14.00mm is 0.551 in.)
- Clip Thickness (T): 1.00mm
(1.00mm is 0.039 in.)
- Groove Dia. (Dg): 13.0mm
+ 0 / - 0.40
(13.0mm is 0.512 in.)
- Approx. Loose Circlip ID (A): 12.8mm
- Radial Wall (S) Approx.: 13.0mm
+/- 0.05
- Groove Width (W): 1.2mm
Min.
- Free Outside Dia (Dr): 14.8
- Section Profile: Round Section
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® DRP-014
- NoCor® DRP-014
- DRP014
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WRE0140RD, WRE0140
