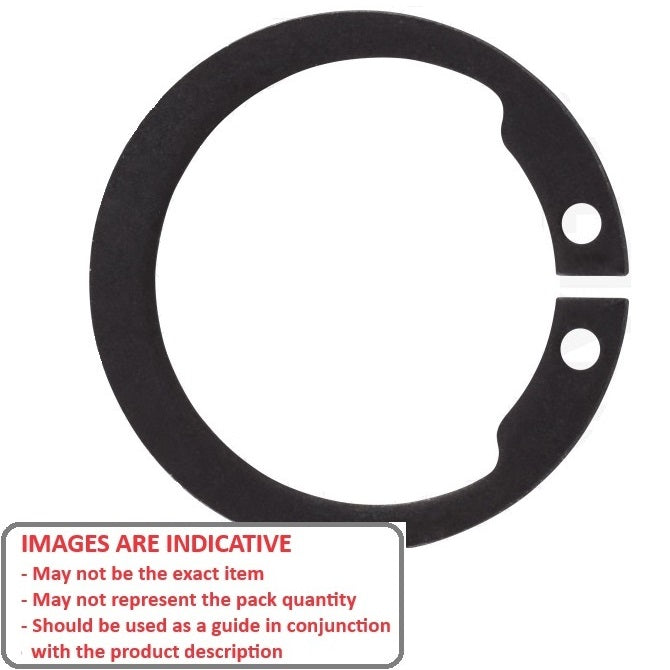

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

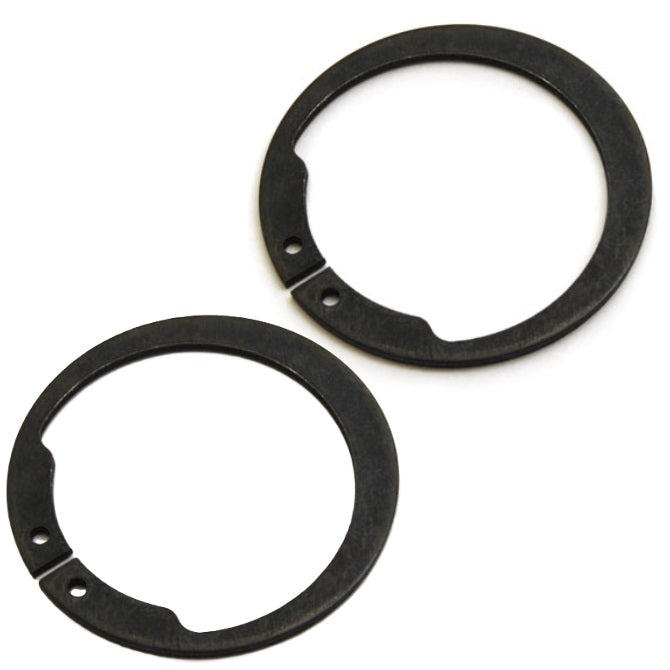

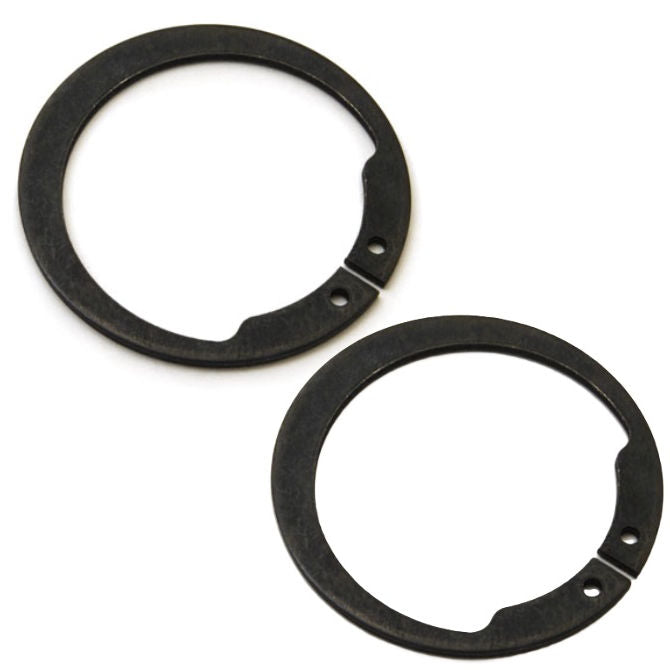

External Retaining Rings - 14.29 mm x 0.89 mm x 13.46 mm
CCE-01429-C-V (50 Pcs)

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
Price:
$47.14 AUD
$47.14 AUD
per 50
Out Of Stock
Order 50 or more (2500 pcs) for $42.43 AUD per 50
Pre-Order now! Backorders for more than the stock quantity are expected before Mar 25, 2025

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Circlips - Inverted

Product Details:

Additional stock available from USA subject to Prior Sale = 6685

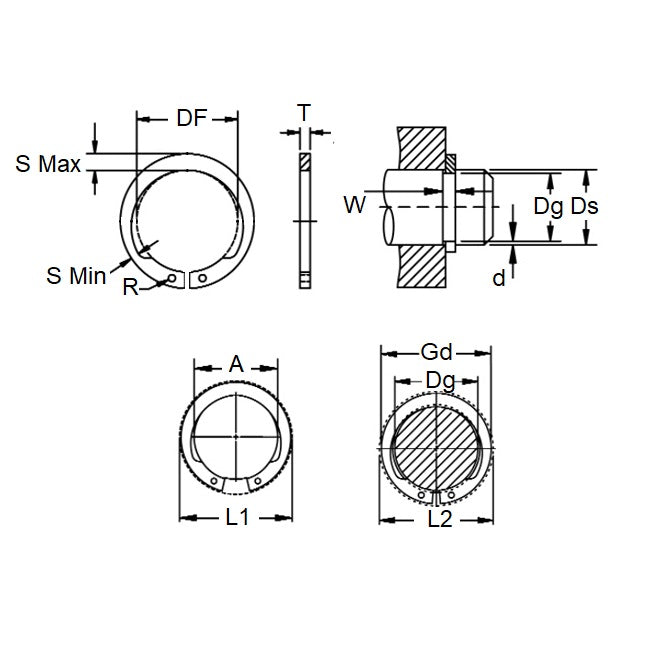

Shaft Diameter (Ds): 14.29mm
Carbon Steel
  • Clip Thickness (T): 0.89mm
    +/- 0.051
  • Groove Dia. (Dg): 13.46mm
    +/- 0.051
  • Approx. Loose Circlip ID (A): 13.23mm
  • Radial Wall (S) min/max: 1.09mm
  • Groove Width (W): 0.99mm
    + 0.08 / - 0.00
  • Tool: PRS-E038

Brand: MBA
Country of Origin: US

Alternatives: AM1408-56, N1408-0056, SHI-056

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
