RS-053 (PK-19)

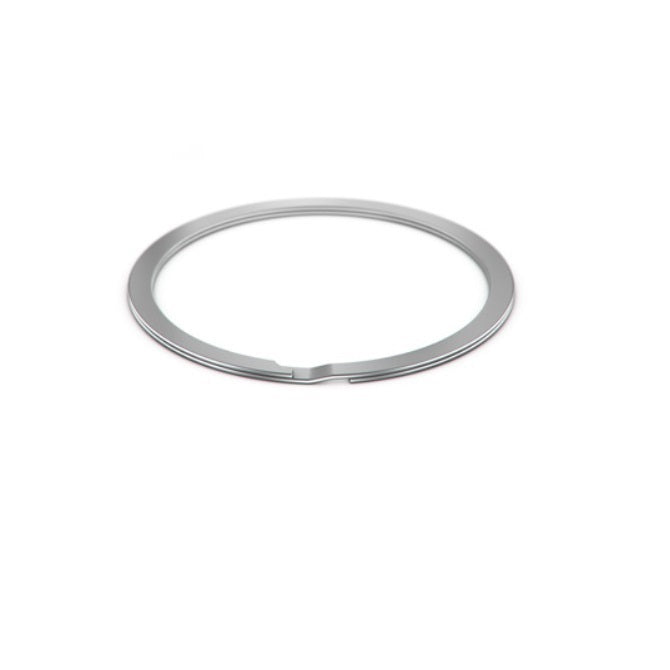

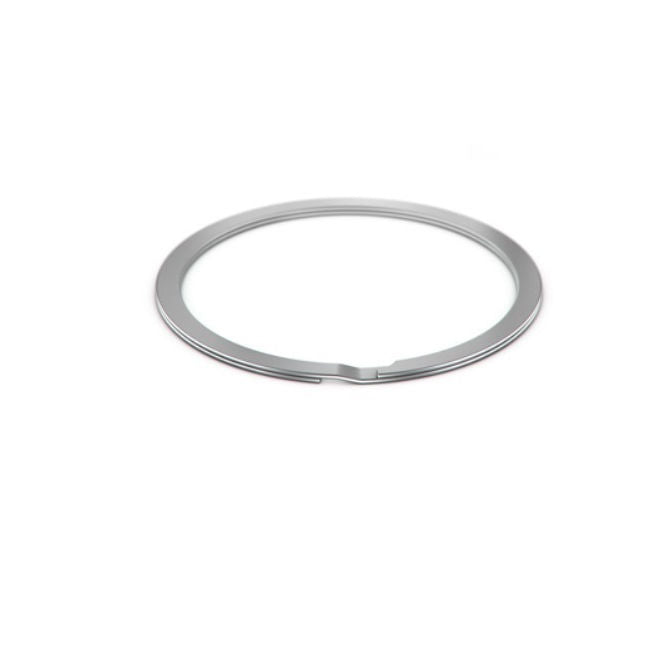

External Retaining Rings - 13.49x0.64x12.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Spiral Rings and Snap Rings PDF
Order 50 or more packs of 19 (950 pcs)
for $11.83 AUD per 19 pack
17/32x1/2 inch Spiral Ring - 13.49x0.64x12.83 mm External Retaining Rings - Carbon Spring Steel - Sold per pack of 19:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 22474

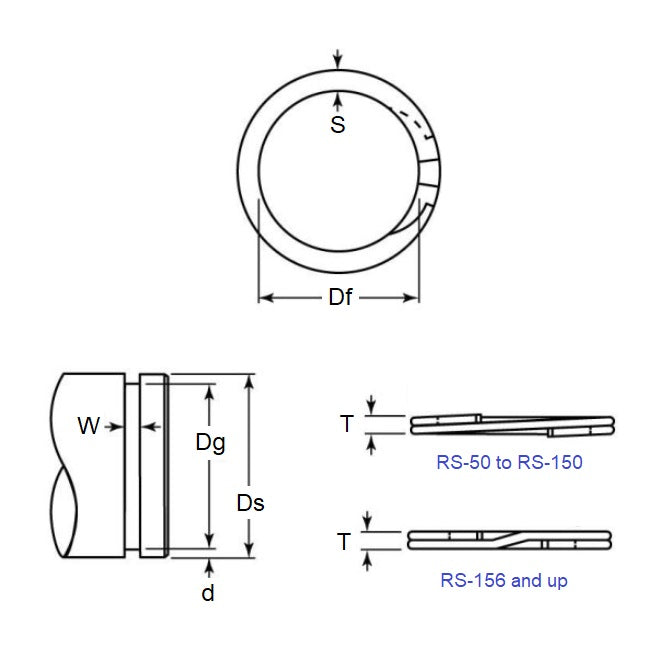

Shaft Diameter (Ds): 13.49mm
(13.49mm is 0.531 in.)
Carbon Spring Steel
- Shaft Diameter (Ds): 13.49mm
(13.49mm is 0.531 in.)
- Clip Thickness (T): 0.64mm
+/- 0.06
(0.64mm is 0.025 in.)
- Groove Dia. (Dg): 12.83mm
(12.83mm is 0.505 in.)
- Approx. Loose Circlip ID (A): 12.68mm
+ 0.00 / - 0.33
- Radial Wall (S) Approx.: 1.14mm
+/- 0.10
- Groove Width (W): 0.80mm
+/- 0.05
- Approx. Loose Clip OD: 14.96
+/- 0.04
- Groove Depth (d): 0.33
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® RS-053
- Smalley® WS-053
- WS053
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RS053,
