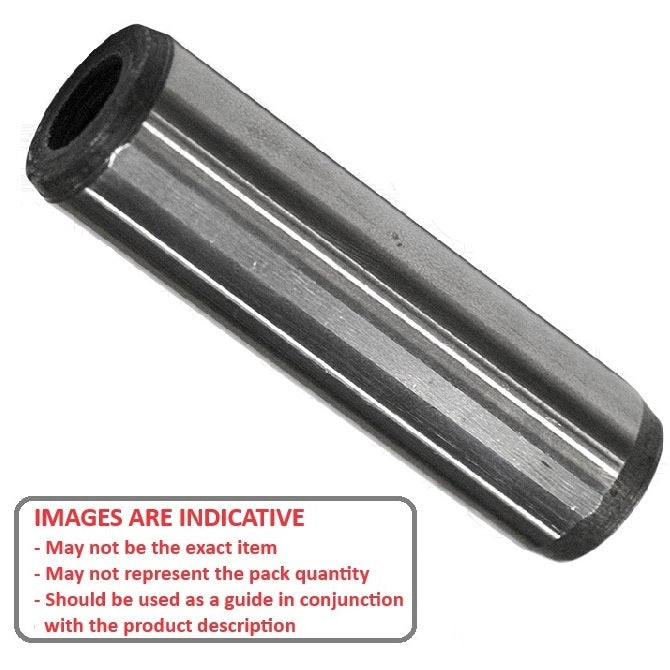

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

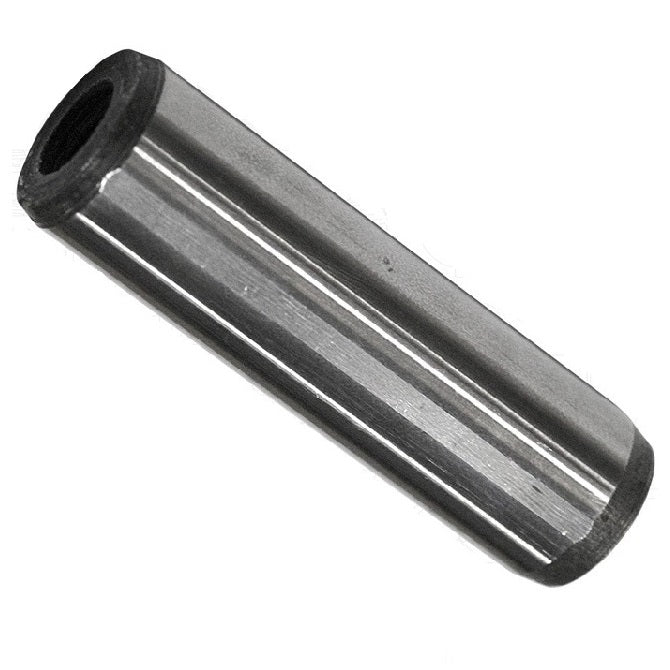

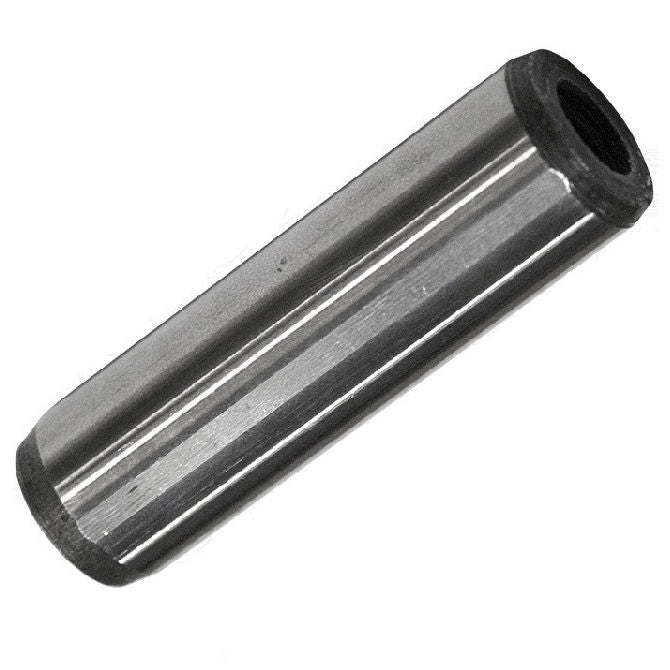

Pins - 12 mm x 60 mm x 60 mm
DP120-060-CH-1EF

MBA

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$6.14 AUD
$6.14 AUD
Each
Qty: 130 available now
Order 50 or more for $5.53 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Feb 10, 2025

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Extractable - With Vent

Product Details:

Diameter (D): 12.000mm
+0.007/+0.018

Carbon Steel
  • Length (L): 60.00mm
    +/-0.600
  • Overall Length: 60.00mm
    +/-0.600

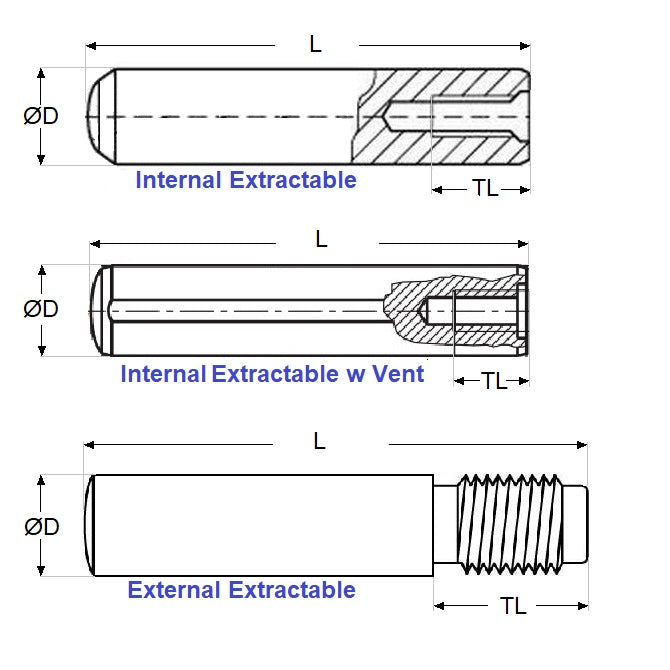

  • Type: 1 (See diagram)
  • Hardness: Alloy Steel - Heat Treated and Ground Rc 58-62
  • Thread Size: M6

Brand: NoCor
Country of Origin: US

Alternatives: DHX12-60, DOWPFM-120-060, DOWPM-120-060, PD-1045

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
