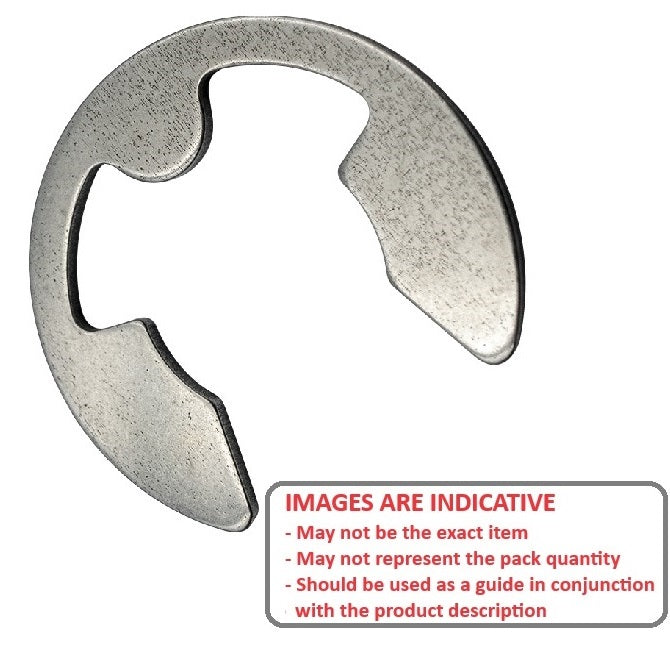

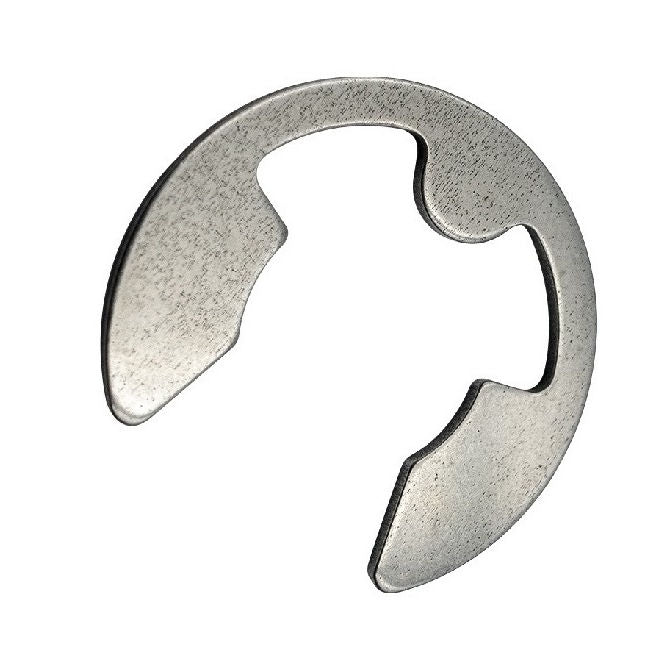

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

E-Clips - 12.7 mm x 10.06 mm x 1.07 mm
ECL-0101-0127-S15 (10 Pcs)

Name: 1102295 | ECL-0101-0127-S15 (10 Pcs) --- E-Clips - 12.7 mm x 10.06 mm x 1.07 mm
Brand: MBA
SKU: ECL01010127S15
Price: 16.95 AUD
Availability: InStock

MBA

Category: E-Clips - Basic - Stainless Steel

Additional resources:
E-Clip Applicators

Price:

$16.95 AUD

per 10
Qty: 4 available now (40 pcs)
Order 50 or more (500 pcs) for $15.26 AUD per 10

Similar Items

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jan 18, 2025

Quantity

Base Category: E-Clips - Basic

Top Level Category: E-Clips - Basic - Stainless Steel

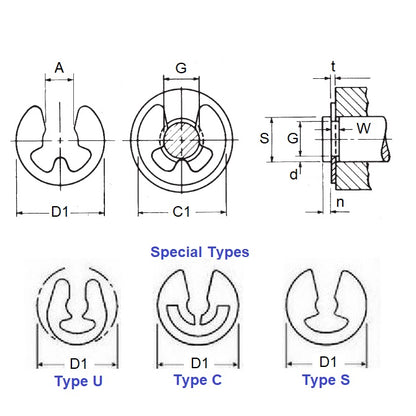

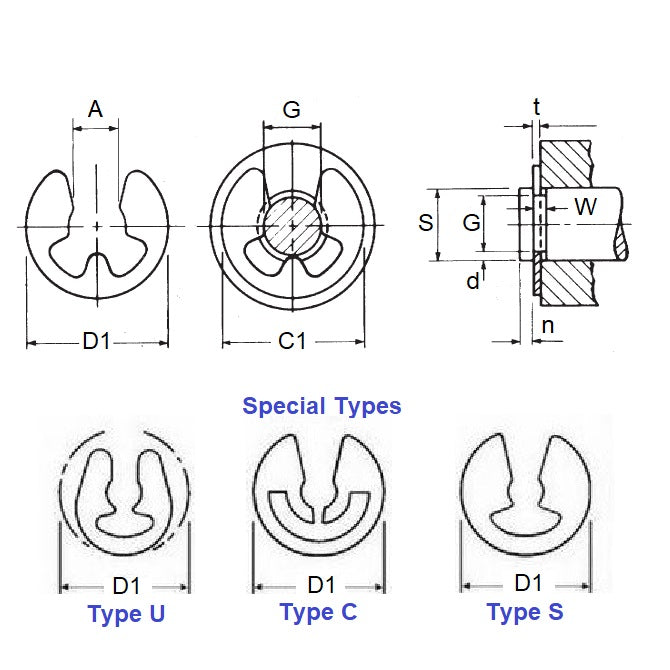

Product Details:

Additional stock available from USA subject to Prior Sale = 23541

Minimum Rec. Shaft Dia (S): 12.70mm
_+3.05/-0.00

Stainless PH15-7 Mo

Groove Dia. (Dg): 10.06mm
_{+0.076/-0.000}
Clip Thickness (T): 1.07mm
_+/-0.050
Clip OD Loose (D1): 20.32mm
Min. Extension (n): 2.00mm
Groove Width (W): 1.17mm
Maximum Rec. Shaft Dia (S): 15.75
Clip OD in groove (C1): 20.83mm
Loose Clip ID (A): 9.96mm
Additional Info: RRA-200 Applicator
Standard: MIL-16633

Brand: MBA
Country of Origin: US

Alternatives: 98408A138, E-050-SS, N1500-0050KSF

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
