ECL-0101-0127-CZY (100 Pcs)

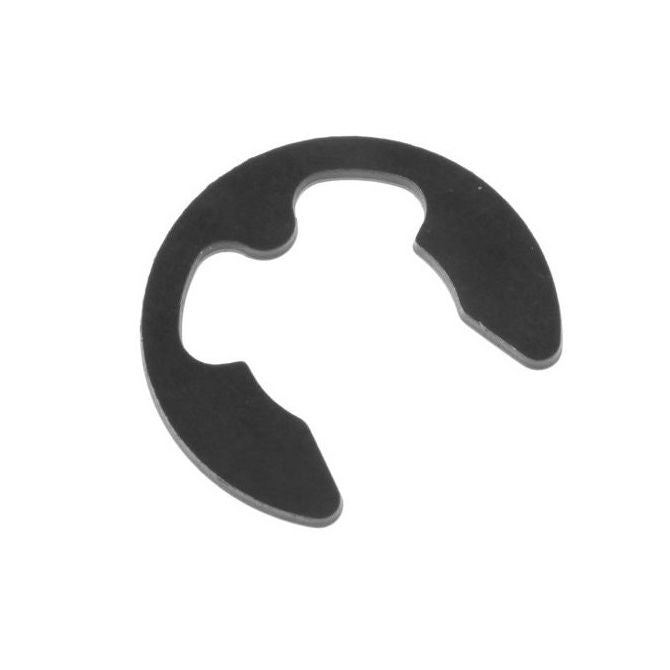

E-Clips Retaining Rings - 12.7x10.06x1.07 mm - Zinc Plated Yellow

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Assortment Kits
E-Clip Applicators
Price:
$28.32 AUD
$66.40 AUD $28.32 AUD
per 100
Out Of Stock
Order 50 or more (5000 pcs) for $25.49 AUD per 100
Backorder now! Backorders for more than the stock quantity are expected before Jun 25, 2025

Base Category: Retaining Rings - E-Clips

Top Level Category: Retaining Rings - E-Clips - Basic - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 8190

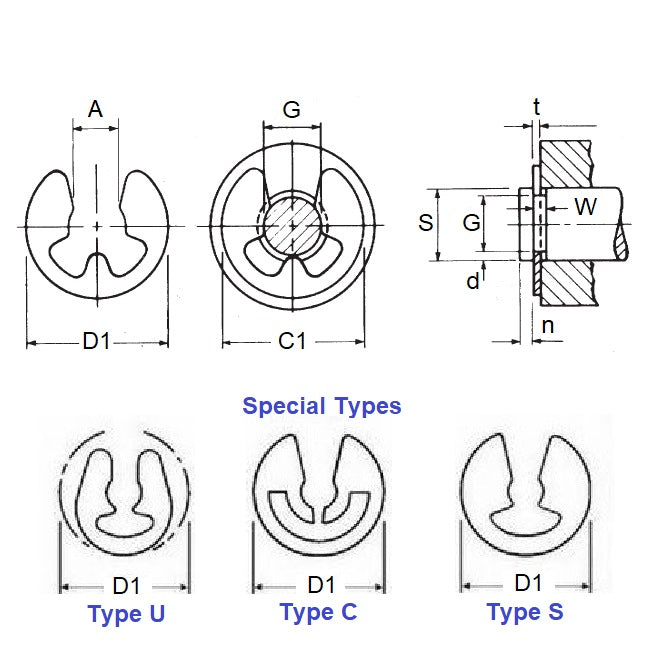

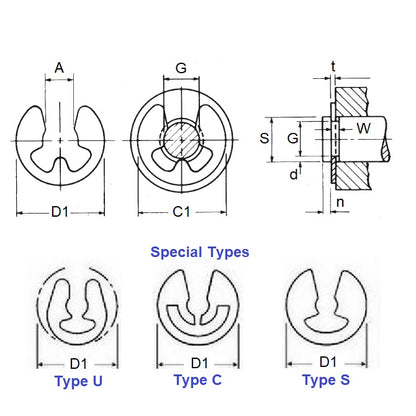

Minimum Rec. Shaft Dia (S): 12.70mm
+ 3.05 / - 0.00
(12.70mm is 0.5 in.)

Zinc Plated Yellow
  • Groove Dia. (Dg): 10.06mm
    + 0.076 / - 0.000
    (10.06mm is 0.396 in.)
  • Clip Thickness (T): 1.07mm
    +/ - 0.050
    (1.07mm is 0.042 in.)
  • Clip OD Loose (D1): 20.32mm
  • Groove Width (W): 1.17mm
  • Maximum Rec. Shaft Dia (S): 15.75
  • Clip OD in groove (C1): 20.83mm
  • Loose Clip ID (A): 9.96mm
  • Min. Extension (n): 2.00
  • Additional Info: RRA-200 Applicator
  • Standard: MIL-16633

Brand: MBA
Country of Origin: US

Alternative Parts Include: 98407A138, N1500-050-ZD, N1500050ZD, 5133-050-ZD, 5133050ZD, E-050-ZD, E050ZD, Waldes, ALTPART, Ellison, NoCor, Rotorclip

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
