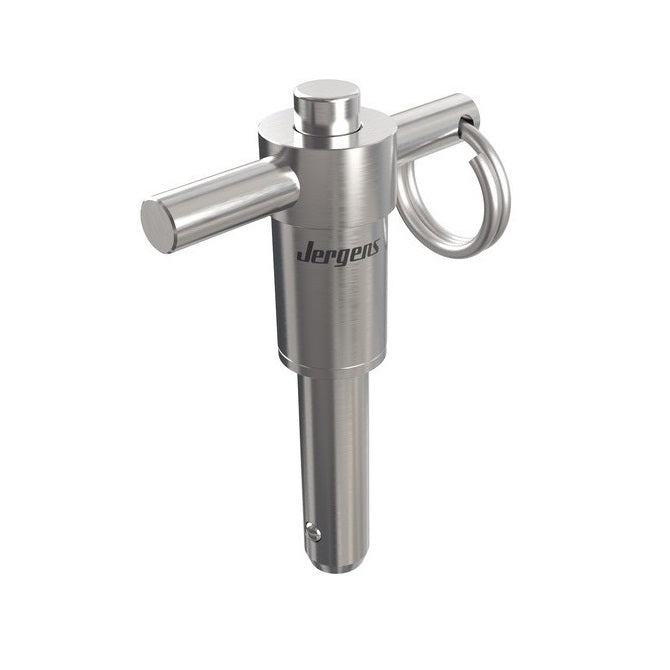

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

Pins - 12.7 mm x 12.7 mm 17-4 PH Stainless
BLP-127-0127-THD-S17

MBA

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Price:
$169.23 AUD
$169.23 AUD
Each
Out Of Stock
Order 50 or more for $152.31 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Dec 22, 2024

Base Category: Pins - Ball Lock

Top Level Category: Pins - Ball Lock - T Handle - Stainless Steel - Heavy Duty

Product Details:

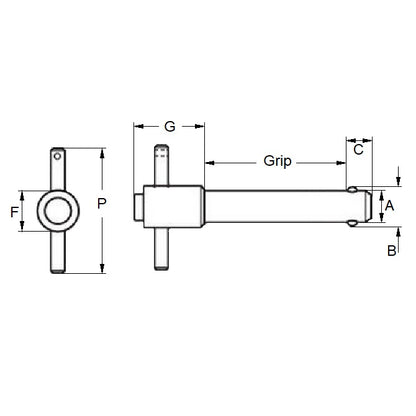

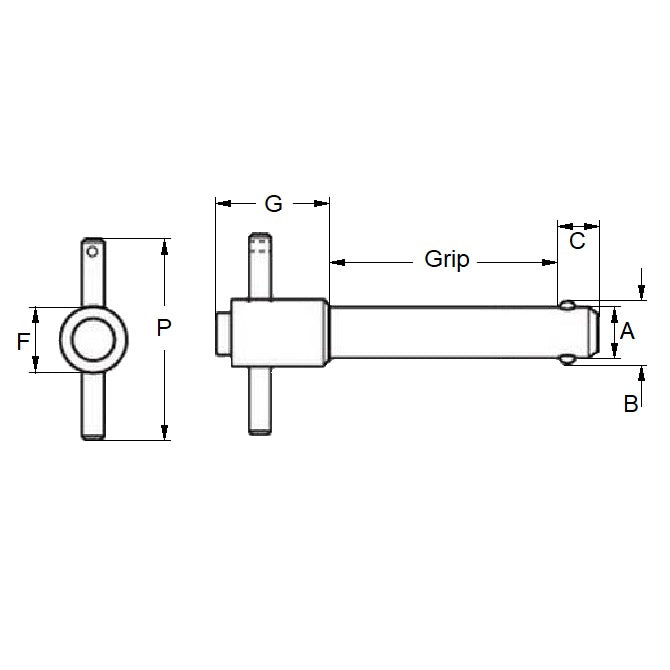

Nominal Diameter: 12.70mm
Stainless 17-4PH
  • Grip Length: 12.70mm
  • Pin Material Grade: 17-4 PH Stainless
  • Locking Ball to End (C): 13.46mm
  • Open Ball Distance (B): 15.06mm
  • Handle Diameter (F): 19.05mm
  • Handle Height (G): 46.23mm
  • Handle Width (P): 63.50mm
  • Pull Out Strength: 525Kg
  • Max. Diameter: 12.66mm
  • Min. Diameter: 12.62mm

Brand: MBA
Country of Origin: DE

Alternatives: 90980A525, GHP-135, GHP-135A

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
