Pins - Ball Lock - No Shoulder - Tee Handle - Stainless Steel Heavy Duty

Pins -> Ball Lock -> No Shoulder -> Tee Handle -> Stainless Steel Heavy Duty

There are 7 products in the sub-categories of Pins - Ball Lock - No Shoulder - Tee Handle - Stainless Steel Heavy Duty. Browse the Pins - Ball Lock - No Shoulder - Tee Handle - Stainless Steel Heavy Duty products table.

Category Details

A selection of Stainless Steel Heavy Duty Tee Handle No Shoulder Ball Lock Pins. 17-4 PH or PH15-7MO stainless steel spindle and shank. Ground handling pins used in the handling of aircraft and service equipment. Tee handle.

  • An expanded range may be available on special order. Please enquire.
  • Positive lock detent pins.
  • 300 Grade Stainless Components
  • 440C Stainless Balls

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Pins - Ball Lock - No Shoulder - Tee Handle - Stainless Steel Heavy Duty category on the Small Parts & Bearings online store.
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C) Open Ball Distance (B) Max. Handle Height (H) Indicative

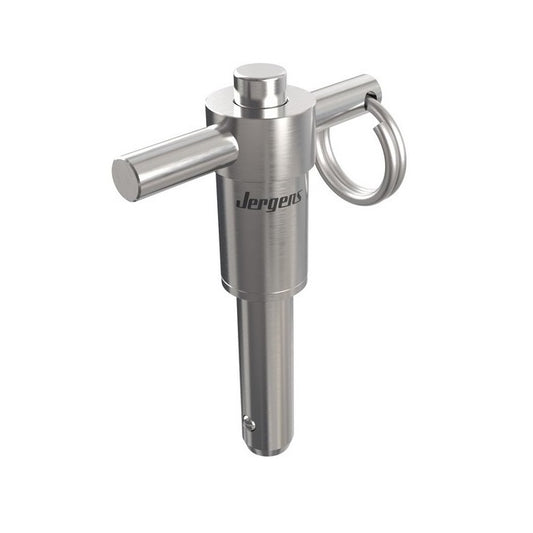

Ball Lock Pins - 7.94x50.8 mm - 17-4 PH Stainless No Shoulder Pin
Nominal Diameter
7.94
mm

(Equiv. 0.313 in.)
Grip Length (B)
50.80
mm

(Equiv. 2 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
10.16
mm
Open Ball Distance (B)
9.45
mm
Ball Lock Pins - 7.94x50.8 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Handle Diameter (F): 12.70 mm    Handle Height (G): 39.37 mm    Handle Width (P): 50.80 mm    Pull Out Strength: 230 Kg    Max. Diameter: 7.90 mm    Min. Diameter: 7.86 mm
Part Number: BLP-079-0508-THD-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$135.32 AUD
$135.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C) Indicative
Ball Lock Pins - 7.94x50.8 mm - 17-4 PH Stainless No Shoulder Pin
Nominal Diameter
7.94
mm

(Equiv. 0.313 in.)
Grip Length (B)
50.80
mm

(Equiv. 2 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
10.16
mm
Ball Lock Pins - 7.94x50.8 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 9.45 mm    Handle Diameter (F): 12.70 mm    Handle Height (G): 39.37 mm    Handle Width (P): 50.80 mm    Pull Out Strength: 230 Kg    Max. Diameter: 7.90 mm    Min. Diameter: 7.86 mm
Part Number: BLP-079-0508-THD-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$135.32 AUD
$135.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless No Shoulder Pin
Nominal Diameter
9.53
mm

(Equiv. 0.375 in.)
Grip Length (B)
38.10
mm

(Equiv. 1.5 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
12.45
mm
Open Ball Distance (B)
11.13
mm
Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Handle Diameter (F): 15.88 mm    Handle Height (G): 39.37 mm    Handle Width (P): 50.80 mm    Pull Out Strength: 260 Kg    Max. Diameter: 9.49 mm    Min. Diameter: 9.45 mm
Part Number: BLP-095-0381-THD-S17 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$3,748.23 AUD
$3,748.23 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless No Shoulder Pin
Nominal Diameter
9.53
mm

(Equiv. 0.375 in.)
Grip Length (B)
38.10
mm

(Equiv. 1.5 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
12.45
mm
Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 11.13 mm    Handle Diameter (F): 15.88 mm    Handle Height (G): 39.37 mm    Handle Width (P): 50.80 mm    Pull Out Strength: 260 Kg    Max. Diameter: 9.49 mm    Min. Diameter: 9.45 mm
Part Number: BLP-095-0381-THD-S17 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$3,748.23 AUD
$3,748.23 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 9.53x63.5 mm - 17-4 PH Stainless No Shoulder Pin
Nominal Diameter
9.53
mm

(Equiv. 0.375 in.)
Grip Length (B)
63.50
mm

(Equiv. 2.5 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
12.45
mm
Open Ball Distance (B)
11.13
mm
Ball Lock Pins - 9.53x63.5 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Handle Diameter (F): 15.88 mm    Handle Height (G): 39.37 mm    Handle Width (P): 50.80 mm    Pull Out Strength: 260 Kg    Max. Diameter: 9.49 mm    Min. Diameter: 9.45 mm
Part Number: BLP-095-0635-THD-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$149.05 AUD
$178.85 AUD $149.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 9.53x63.5 mm - 17-4 PH Stainless No Shoulder Pin
Nominal Diameter
9.53
mm

(Equiv. 0.375 in.)
Grip Length (B)
63.50
mm

(Equiv. 2.5 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
12.45
mm
Ball Lock Pins - 9.53x63.5 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 11.13 mm    Handle Diameter (F): 15.88 mm    Handle Height (G): 39.37 mm    Handle Width (P): 50.80 mm    Pull Out Strength: 260 Kg    Max. Diameter: 9.49 mm    Min. Diameter: 9.45 mm
Part Number: BLP-095-0635-THD-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$149.05 AUD
$178.85 AUD $149.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless No Shoulder Pin
Nominal Diameter
9.53
mm

(Equiv. 0.375 in.)
Grip Length (B)
76.20
mm

(Equiv. 3 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
12.45
mm
Open Ball Distance (B)
11.13
mm
Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Handle Diameter (F): 15.88 mm    Handle Height (G): 39.37 mm    Handle Width (P): 50.80 mm    Pull Out Strength: 260 Kg    Max. Diameter: 9.49 mm    Min. Diameter: 9.45 mm
Part Number: BLP-095-0762-THD-S17 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$2,418.41 AUD
$2,418.41 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless No Shoulder Pin
Nominal Diameter
9.53
mm

(Equiv. 0.375 in.)
Grip Length (B)
76.20
mm

(Equiv. 3 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
12.45
mm
Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 11.13 mm    Handle Diameter (F): 15.88 mm    Handle Height (G): 39.37 mm    Handle Width (P): 50.80 mm    Pull Out Strength: 260 Kg    Max. Diameter: 9.49 mm    Min. Diameter: 9.45 mm
Part Number: BLP-095-0762-THD-S17 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$2,418.41 AUD
$2,418.41 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 12.7x12.7 mm - 17-4 PH Stainless No Shoulder Pin
Nominal Diameter
12.70
mm

(Equiv. 0.5 in.)
Grip Length (B)
12.70
mm

(Equiv. 0.5 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
13.46
mm
Open Ball Distance (B)
15.06
mm
Ball Lock Pins - 12.7x12.7 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Handle Diameter (F): 19.05 mm    Handle Height (G): 46.23 mm    Handle Width (P): 63.50 mm    Pull Out Strength: 525 Kg    Max. Diameter: 12.66 mm    Min. Diameter: 12.62 mm
Part Number: BLP-127-0127-THD-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$166.68 AUD
$200.02 AUD $166.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 12.7x12.7 mm - 17-4 PH Stainless No Shoulder Pin
Nominal Diameter
12.70
mm

(Equiv. 0.5 in.)
Grip Length (B)
12.70
mm

(Equiv. 0.5 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
13.46
mm
Ball Lock Pins - 12.7x12.7 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 15.06 mm    Handle Diameter (F): 19.05 mm    Handle Height (G): 46.23 mm    Handle Width (P): 63.50 mm    Pull Out Strength: 525 Kg    Max. Diameter: 12.66 mm    Min. Diameter: 12.62 mm
Part Number: BLP-127-0127-THD-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$166.68 AUD
$200.02 AUD $166.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 12.7x76.2 mm - 17-4 PH Stainless No Shoulder Pin
Nominal Diameter
12.70
mm

(Equiv. 0.5 in.)
Grip Length (B)
76.20
mm

(Equiv. 3 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
13.46
mm
Open Ball Distance (B)
15.06
mm
Ball Lock Pins - 12.7x76.2 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Handle Diameter (F): 19.05 mm    Handle Height (G): 46.23 mm    Handle Width (P): 63.50 mm    Pull Out Strength: 525 Kg    Max. Diameter: 12.66 mm    Min. Diameter: 12.62 mm
Part Number: BLP-127-0762-THD-S17 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$4,240.23 AUD
$4,240.23 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 12.7x76.2 mm - 17-4 PH Stainless No Shoulder Pin
Nominal Diameter
12.70
mm

(Equiv. 0.5 in.)
Grip Length (B)
76.20
mm

(Equiv. 3 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
13.46
mm
Ball Lock Pins - 12.7x76.2 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 15.06 mm    Handle Diameter (F): 19.05 mm    Handle Height (G): 46.23 mm    Handle Width (P): 63.50 mm    Pull Out Strength: 525 Kg    Max. Diameter: 12.66 mm    Min. Diameter: 12.62 mm
Part Number: BLP-127-0762-THD-S17 (PK-10)
Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026
$4,240.23 AUD
$4,240.23 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 15.88x101.6 mm - 17-4 PH Stainless No Shoulder Pin
Nominal Diameter
15.88
mm

(Equiv. 0.625 in.)
Grip Length (B)
101.60
mm

(Equiv. 4 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
16.51
mm
Open Ball Distance (B)
19.00
mm
Ball Lock Pins - 15.88x101.6 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Handle Diameter (F): 22.23 mm    Handle Height (G): 46.23 mm    Handle Width (P): 76.20 mm    Pull Out Strength: 937 Kg    Max. Diameter: 15.84 mm    Min. Diameter: 15.80 mm
Part Number: BLP-159-1016-THD-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$355.68 AUD
$426.82 AUD $355.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 15.88x101.6 mm - 17-4 PH Stainless No Shoulder Pin
Nominal Diameter
15.88
mm

(Equiv. 0.625 in.)
Grip Length (B)
101.60
mm

(Equiv. 4 in.)
Pin Material Grade
17-4 PH Stainless

Locking Ball to End (C)
16.51
mm
Ball Lock Pins - 15.88x101.6 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 19.00 mm    Handle Diameter (F): 22.23 mm    Handle Height (G): 46.23 mm    Handle Width (P): 76.20 mm    Pull Out Strength: 937 Kg    Max. Diameter: 15.84 mm    Min. Diameter: 15.80 mm
Part Number: BLP-159-1016-THD-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$355.68 AUD
$426.82 AUD $355.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
