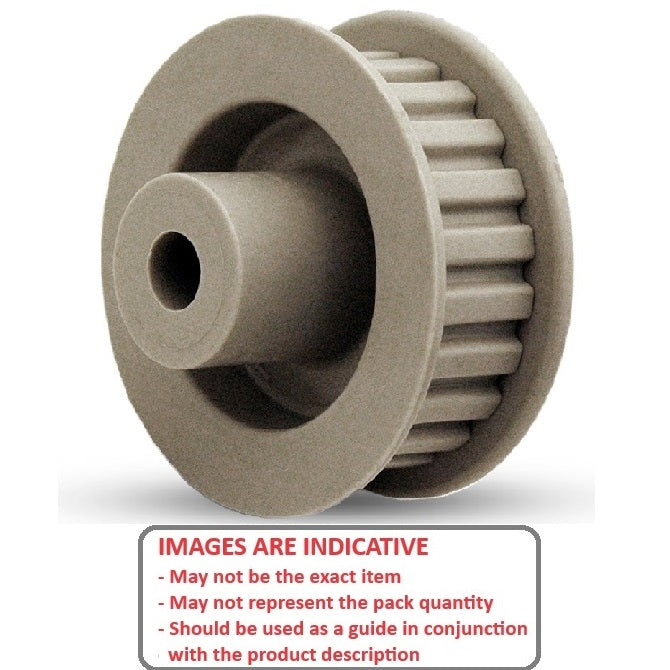

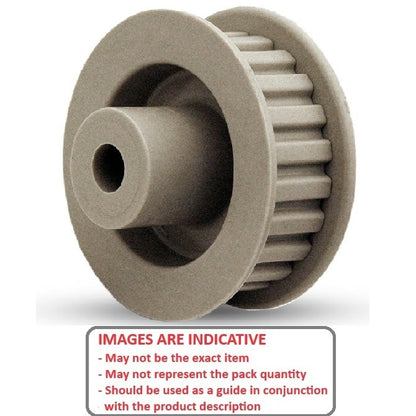

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

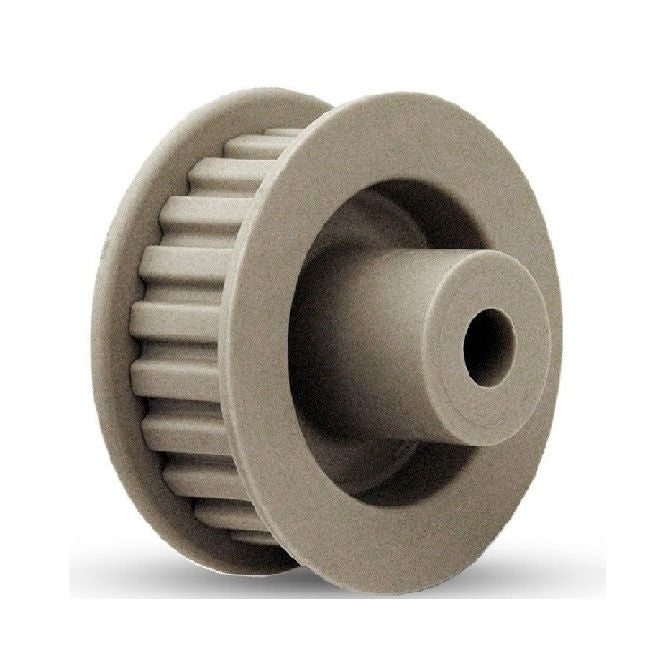

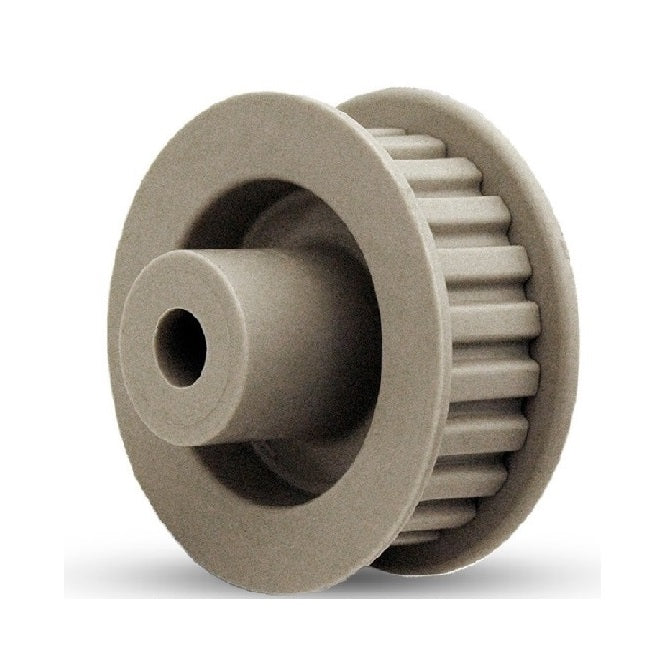

Pulleys - 11 Teeth x 6.4 mm x 3 mm
P-40D-011-060FF-PA-N-030 (2 Pcs)

MBA

Additional resources:
Timing Pulleys Catalogue PDF
40DP Timing Belts
Price:
$2.00 AUD
$6.00 AUD $2.00 AUD
per 2
Qty: 1 available now (2 pcs)
Only 1 pack may be ordered online. If you need a large quantity, please contact us.

Base Category: Pulleys - Inch Timing

Top Level Category: Pulleys - Inch Timing - 2.073mm Pitch 40DP - 6.4mm Wide - Plastic Plain

Product Details:

Teeth: 11Nr.
Acetal
  • Max Belt Width: 6.40mm
  • Bore (d): 3.000mm
  • Locking Type: No Locking Device

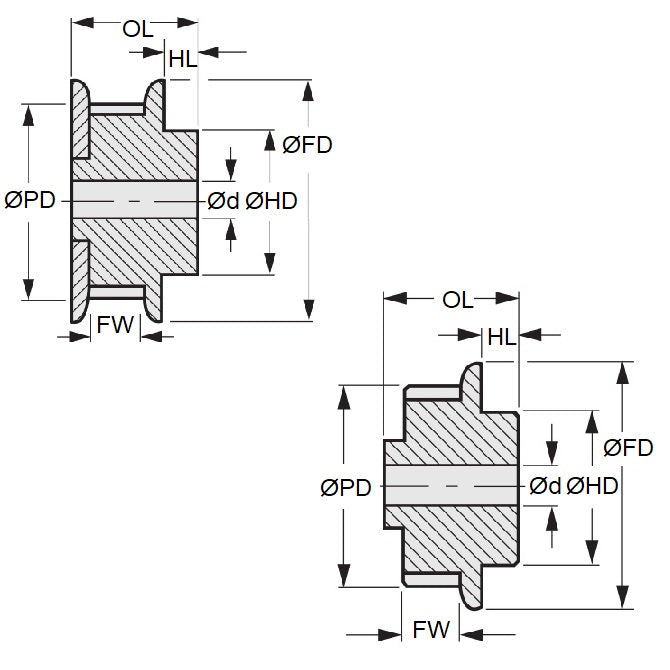

  • Type (See Diagram): Fig 2mm
  • Pitch Diameter (PD): 7.26mm
  • Flange Diameter (FD): 12.0mm
  • Overall Length: 17.5mm
  • Hub Diameter (HD): 11.0mm

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternatives: A6M6M11DF06003

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
