Collection: Pulleys - Inch Timing - 2.073mm Pitch 40DP - 6.4mm Wide - Plastic Plain

Pulleys (With Images)

Pulleys - Inch Timing
Pulleys - Inch Timing - 2.073mm Pitch 40DP
Pulleys - Inch Timing - 2.073mm Pitch 40DP - 6.4mm Wide

Pulleys - Inch Timing - 2.073mm Pitch 40DP - 6.4mm Wide - Plastic Plain

4 Products in this selection

Timing Pulleys to suit 40DP 2.070mm Pitch Timing Belts. Suits belts 6.0 to 6.4mm wide. Also known as LT. Moulded single or double flange. No locking device.

Additional resources:
Timing Pulleys Catalogue PDF
40DP Timing Belts

Teeth	Max Belt Width	Bore (d)	Locking Type
11 Nr.	6.40 mm	3.000 mm	No Locking Device
Material: Acetal Type (See Diagram): Fig 2 mm Pitch Diameter (PD): 7.26 mm Flange Diameter (FD): 12.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.0 mm
Part Number: P-40D-011-060FF-PA-N-030 (2 Pcs) Pulleys - 11 Teeth x 6.4 mm x 3 mm 1 pack (2 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$6.00 AUD~~ Sale price $2.00 AUD Unit price per Per 2

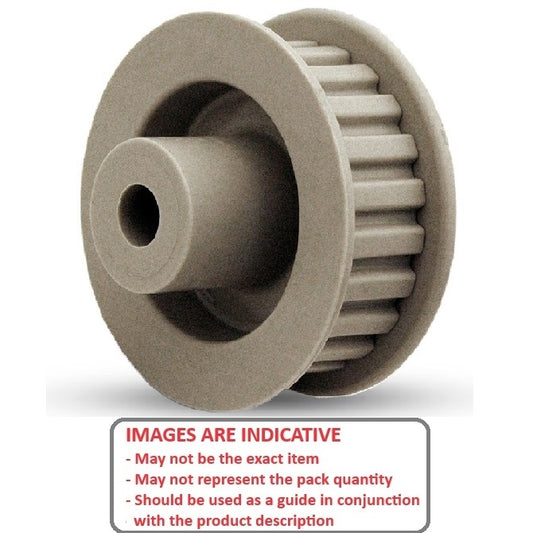

Teeth	Max Belt Width	Bore (d)	Indicative Image
11 Nr.	6.40 mm	3.000 mm
Material: Acetal Locking Type: No Locking Device Type (See Diagram): Fig 2 mm Pitch Diameter (PD): 7.26 mm Flange Diameter (FD): 12.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.0 mm
Part Number: P-40D-011-060FF-PA-N-030 (2 Pcs) Pulleys - 11 Teeth x 6.4 mm x 3 mm 1 pack (2 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity \| Regular price $2.00 AUD Regular price ~~$6.00 AUD~~ Sale price $2.00 AUD Unit price per Per 2
P-40D-011-060FF-PA-N-030 (2 Pcs) --- Pulleys - 11 Teeth x 6.4 mm x 3 mm Acetal Sale P-40D-011-060FF-PA-N-030 (2 Pcs) --- Pulleys - 11 Teeth x 6.4 mm x 3 mm Acetal Regular price $2.00 AUD Regular price ~~$6.00 AUD~~ Sale price $2.00 AUD Unit price per 1 Available Now Sale
15 Nr.	6.40 mm	4.000 mm	No Locking Device
Material: Acetal Type (See Diagram): Fig 1 mm Pitch Diameter (PD): 9.89 mm Flange Diameter (FD): 14.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.0 mm
Part Number: P-40D-015-060SF-PA-N-040 Pulleys - 15 Teeth x 6.4 mm x 4 mm 1 Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $0.50 AUD Regular price ~~$1.50 AUD~~ Sale price $0.50 AUD Unit price per Each
15 Nr.	6.40 mm	4.000 mm
Material: Acetal Locking Type: No Locking Device Type (See Diagram): Fig 1 mm Pitch Diameter (PD): 9.89 mm Flange Diameter (FD): 14.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 11.0 mm
Part Number: P-40D-015-060SF-PA-N-040 Pulleys - 15 Teeth x 6.4 mm x 4 mm 1 Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity \| Regular price $0.50 AUD Regular price ~~$1.50 AUD~~ Sale price $0.50 AUD Unit price per Each
P-40D-015-060SF-PA-N-040 --- Pulleys - 15 Teeth x 6.4 mm x 4 mm Acetal Sale P-40D-015-060SF-PA-N-040 --- Pulleys - 15 Teeth x 6.4 mm x 4 mm Acetal Regular price $0.50 AUD Regular price ~~$1.50 AUD~~ Sale price $0.50 AUD Unit price per 1 Available Now Sale

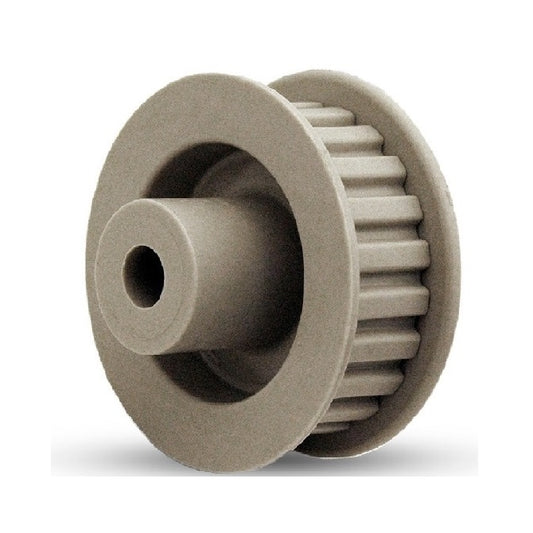

18 Nr.	6.40 mm	4.763 mm	No Locking Device
Material: Acetal Type (See Diagram): Fig 2 mm Pitch Diameter (PD): 11.87 mm Flange Diameter (FD): 16.3 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.7 mm
Part Number: P-40D-018-064FF-PA-N-048 Pulleys - 18 Teeth x 6.4 mm x 4.763 mm 1 Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $1.00 AUD Regular price ~~$3.00 AUD~~ Sale price $1.00 AUD Unit price per Each
18 Nr.	6.40 mm	4.763 mm
Material: Acetal Locking Type: No Locking Device Type (See Diagram): Fig 2 mm Pitch Diameter (PD): 11.87 mm Flange Diameter (FD): 16.3 mm Overall Length: 17.5 mm Hub Diameter (HD): 12.7 mm
Part Number: P-40D-018-064FF-PA-N-048 Pulleys - 18 Teeth x 6.4 mm x 4.763 mm 1 Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity \| Regular price $1.00 AUD Regular price ~~$3.00 AUD~~ Sale price $1.00 AUD Unit price per Each
P-40D-018-064FF-PA-N-048 --- Pulleys - 18 Teeth x 6.4 mm x 4.763 mm Acetal Sale P-40D-018-064FF-PA-N-048 --- Pulleys - 18 Teeth x 6.4 mm x 4.763 mm Acetal Regular price $1.00 AUD Regular price ~~$3.00 AUD~~ Sale price $1.00 AUD Unit price per 1 Available Now Sale
18 Nr.	6.40 mm	6.000 mm	No Locking Device
Material: Acetal Type (See Diagram): Fig 2 mm Pitch Diameter (PD): 11.87 mm Flange Diameter (FD): 16.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 13.0 mm
Part Number: P-40D-018-060FF-PA-N-060 Pulleys - 18 Teeth x 6.4 mm x 6 mm 1 Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $1.00 AUD Regular price ~~$3.00 AUD~~ Sale price $1.00 AUD Unit price per Each
18 Nr.	6.40 mm	6.000 mm
Material: Acetal Locking Type: No Locking Device Type (See Diagram): Fig 2 mm Pitch Diameter (PD): 11.87 mm Flange Diameter (FD): 16.0 mm Overall Length: 17.5 mm Hub Diameter (HD): 13.0 mm
Part Number: P-40D-018-060FF-PA-N-060 Pulleys - 18 Teeth x 6.4 mm x 6 mm 1 Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity \| Regular price $1.00 AUD Regular price ~~$3.00 AUD~~ Sale price $1.00 AUD Unit price per Each
P-40D-018-060FF-PA-N-060 --- Pulleys - 18 Teeth x 6.4 mm x 6 mm Acetal Sale P-40D-018-060FF-PA-N-060 --- Pulleys - 18 Teeth x 6.4 mm x 6 mm Acetal Regular price $1.00 AUD Regular price ~~$3.00 AUD~~ Sale price $1.00 AUD Unit price per 1 Available Now Sale
