W0100-ALN-CBH (PK-5)

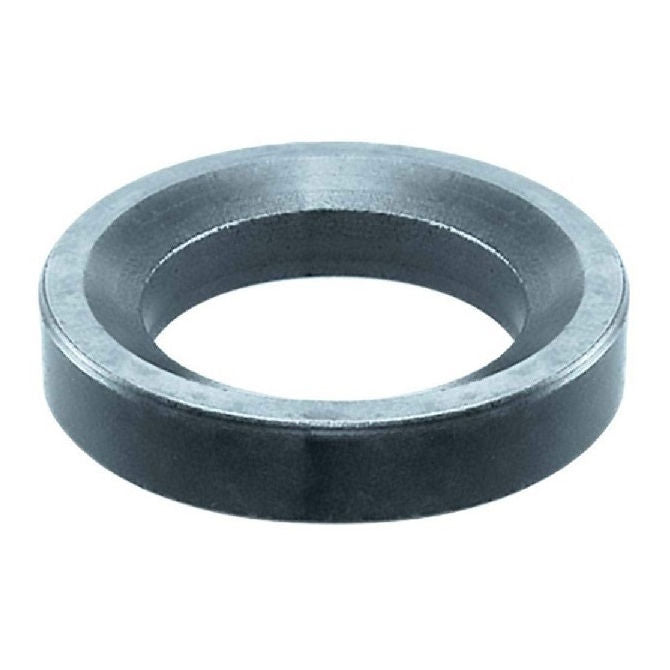

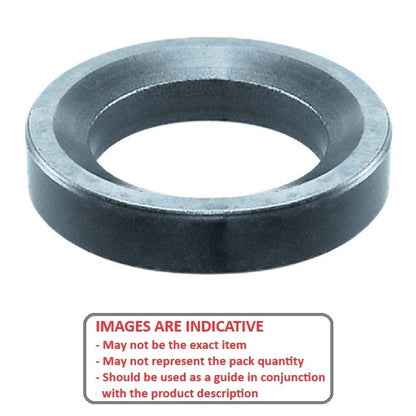

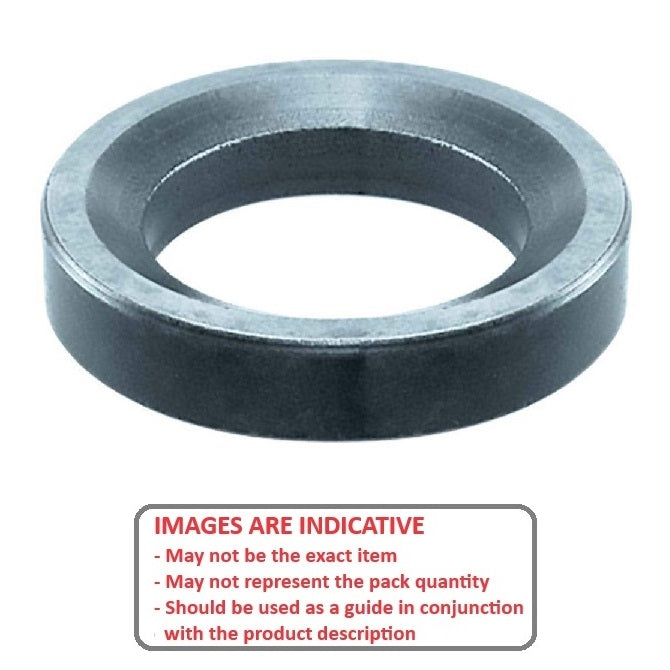

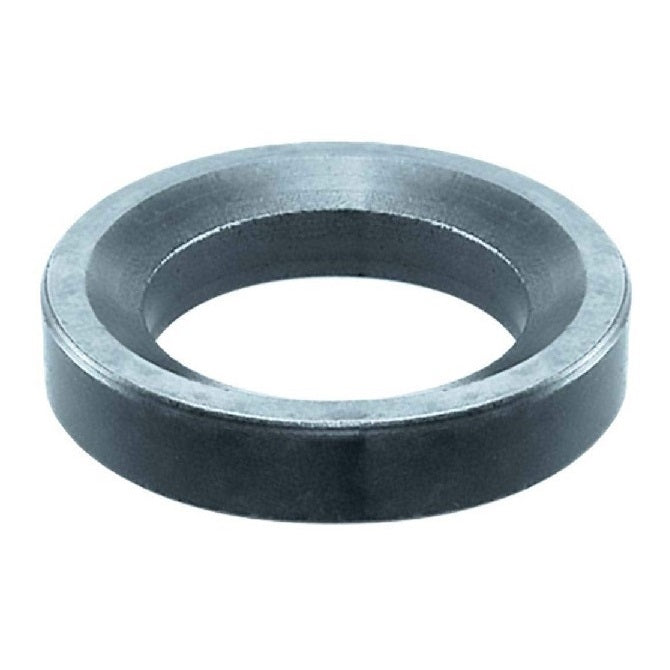

Self Aligning Washers - 10x12x30 mm Components - Carbon Steel - Hardened Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Self Aligning Washer Sets
Screws
Order 50 or more packs of 5 (250 pcs)
for $29.99 AUD per 5 pack
10x12x30 mm Self Aligning Washers - Carbon Steel - Hardened - Sold per pack of 5:
Base Category: Washers - Self Aligning
Top Level Category: Washers - Self Aligning - Components - Hardened Steel
Product Details
Suitable Shaft or Bolt Size: 10.00mm(10.00mm is 0.394 in.)
Carbon Steel - Hardened
- Suitable Shaft or Bolt Size: 10.00mm
(10.00mm is 0.394 in.)

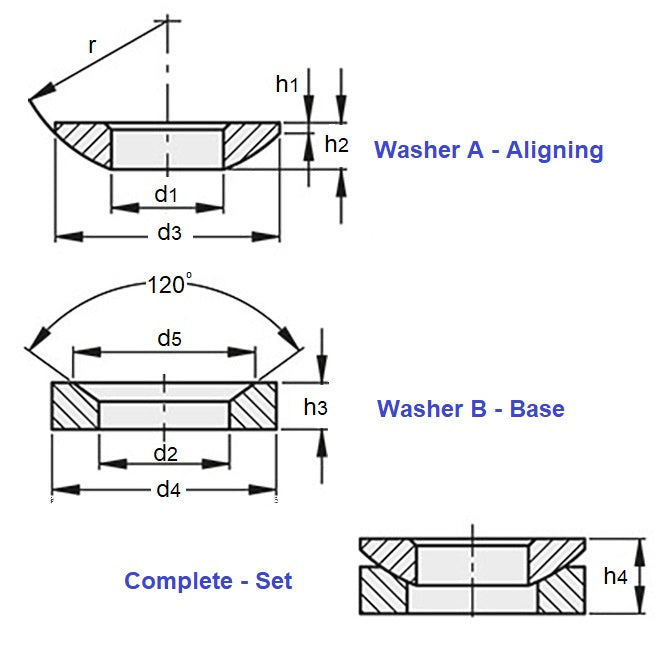

- Bore Size (d1 or d2): 12mm
(12mm is 0.472 in.)
- OD (d3): 30.00mm
(30.00mm is 1.181 in.)
- Thickness (h2 or h3): 5.0mm
- Overall Thickness (h4): 7.1mm
- Static Load Rating: 26Max. kN
- Type: Washer B (Base)
- Actual ID (Ref): 10mm
- Standard: DIN 6319G
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® AMF-202
- AMF202
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0100ALNCBH, W0100ALN
