PLBP-100-130-S3-015 (PK-10)

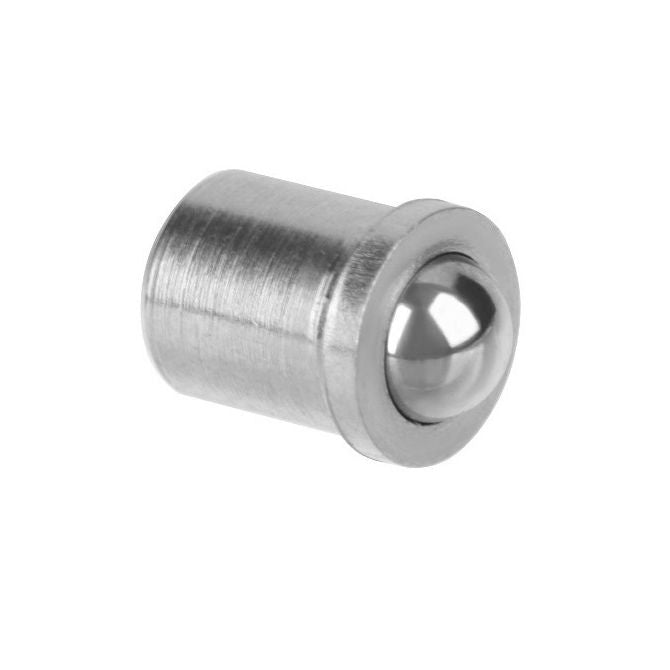

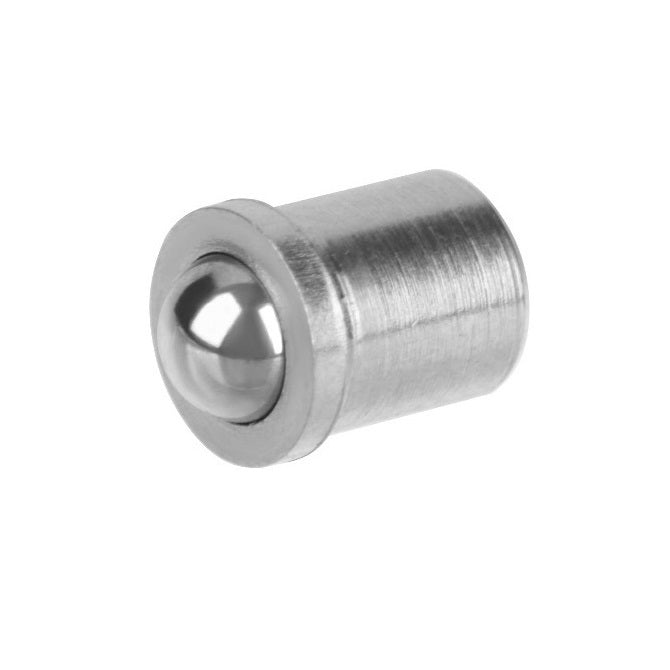

Ball Push Fit Plungers - 10x13 mm - 9 N Stainless Body - Stainless Steel 400 Series Hardened Plunger

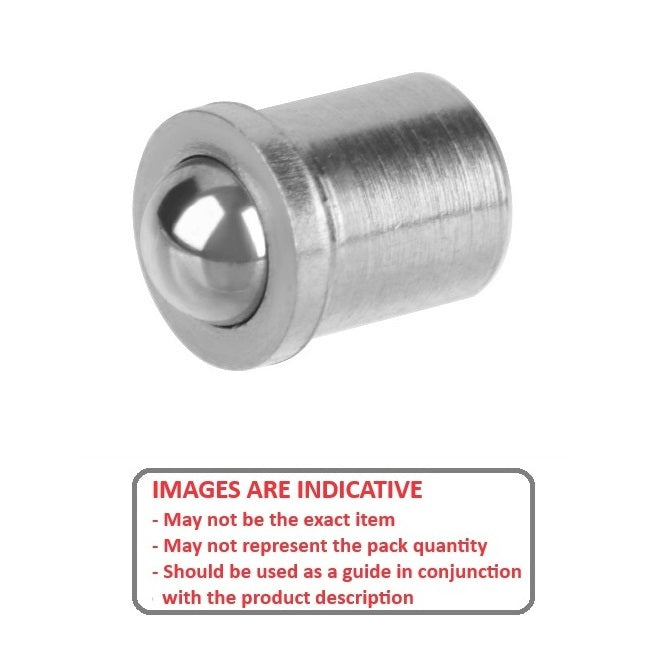

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Ball Push Fit Plungers - 10x13 mm - 9 N Stainless Body - Stainless Steel 400 Series Hardened
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:
Spring Plungers
Threaded Ball Plungers
Price:
$25.68 AUD
$30.82 AUD $25.68 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more packs of 10 (500 pcs)
for $23.11 AUD per 10 pack
Backorder now! Backorders are expected before Jul 03, 2026

Base Category: Plungers - Ball Push Fit

Top Level Category: Plungers - Ball Push Fit - Stainless Body - Stainless Ball

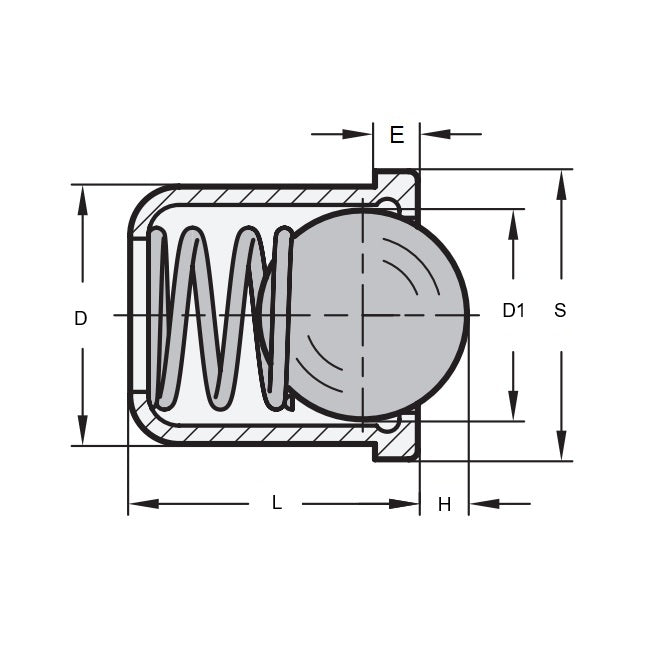

Product Details

Body Diameter (D): 10.00mm
(10.00mm is 0.394 in.)

Stainless Steel 400 Series Hardened
  • Body Diameter (D): 10.00mm
    (10.00mm is 0.394 in.)
  • Length (L): 13.0mm
    (13.0mm is 0.512 in.)
  • Initial Pressure (F1): 9.0N
  • Final Pressure (F2): 15.0N
  • Ball Diameter (D1): 8.0mm
  • Ball Height (H): 2.8mm
  • Shoulder Diameter (S): 11.0mm

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • Misumi® C-PFSSN10-10P
  • CPFSSN1010P

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
