PLST-064C-127-TAC-022 (250 Pcs)

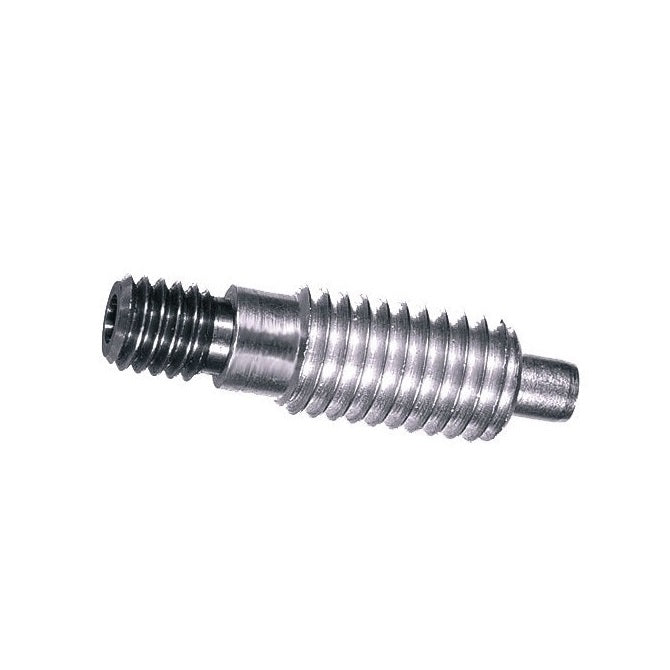

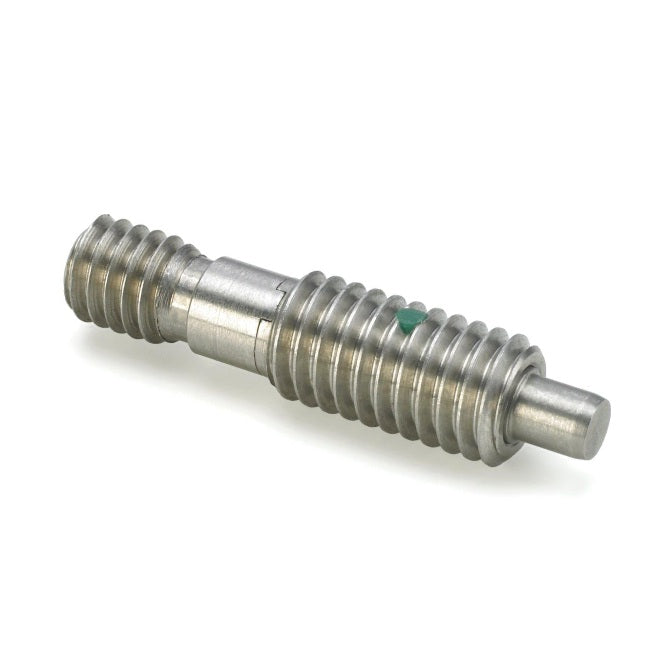

Spring Threaded Adapter Plungers - 1/4-20 UNC - 6.35mm - 12.7 mm - 4.5 N Non Locking - Steel Plunger

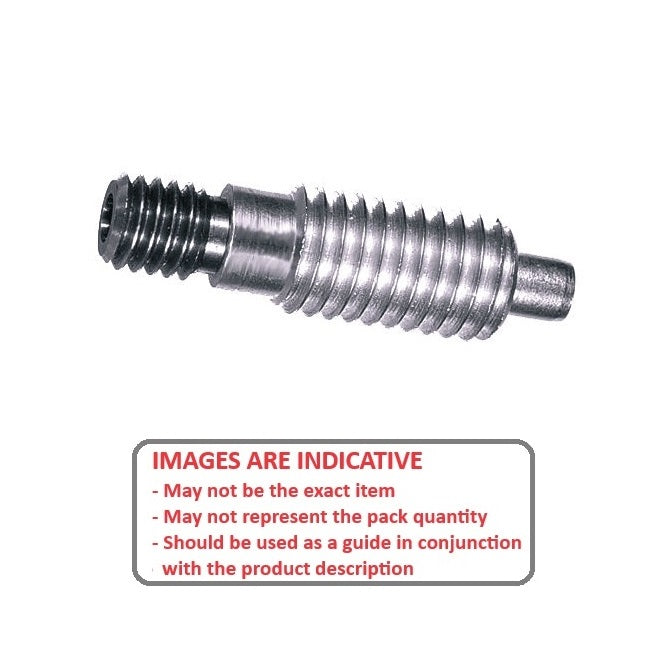

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:
Threaded Ball Plungers
Push Fit Ball Plungers
Price:
$11,929.32 AUD
$11,929.32 AUD
Excludes GST and overseas Taxes & Duties
 per 250
Backorder
Order 50 or more pack (12500 pcs) for $10,736.39 AUD per 250
Backorder now! Backorders for more than the stock quantity are expected before Oct 04, 2025

Base Category: Plungers - Spring Threaded Adapter

Top Level Category: Plungers - Spring Threaded Adapter - Non Locking - Steel

Product Details

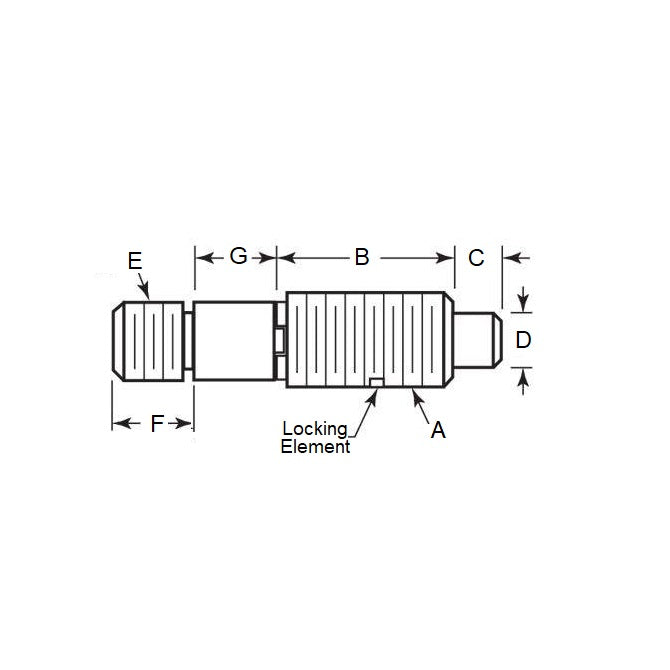

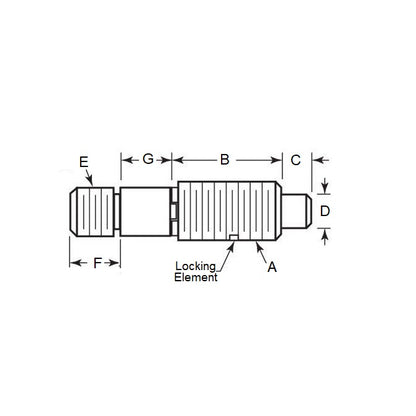

Body Thread Size (A): 1/4-20 UNC (6.35mm)

Steel
  • Body Thread Size (A): 1/4-20 UNC (6.35mm)
  • Major Thread Length (B): 12.7mm
    (12.7mm is 0.5 in.)
  • Initial Pressure (F1): 4.5N
  • Final Pressure (F2): 22.2N
  • Tip Diameter (D): 3.2mm
  • Tip Length (C): 3.2mm
  • End Thread Size (E): 10-32 UNC (4.762mm)
  • End Thread Length (F): 6.0mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • NRP-52
  • NRP52

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
