Retaining Rings - Internal - Spiral Rings - Medium-Heavy

Retaining Rings -> Internal -> Spiral Rings -> Medium-Heavy

There is only 1 product in the sub-categories of Retaining Rings - Internal - Spiral Rings - Medium-Heavy. Browse the Retaining Rings - Internal - Spiral Rings - Medium-Heavy products table. To narrow down the selection, please choose a sub-category from the links below.

Category Details

This category includes various types of internal retaining rings.
  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Retaining Rings - Internal - Spiral Rings - Medium-Heavy category on the Small Parts & Bearings online store.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Approx. Groove Width (W) Indicative

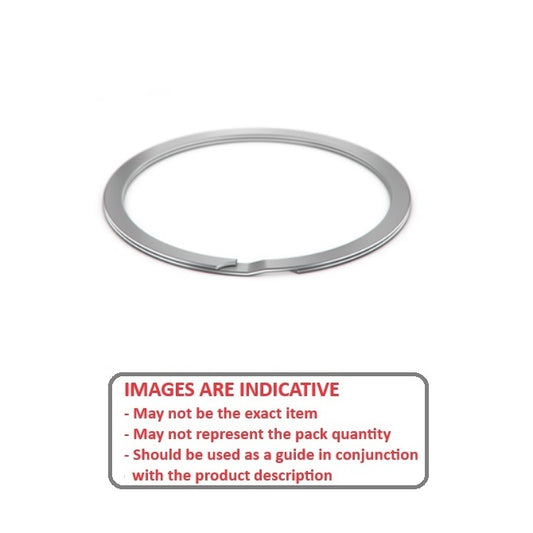

Internal Retaining Rings - 31.75x1.27x33.53 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Housing Bore (B)
31.75
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
33.53
mm
Approx. Loose Circlip OD (Dr)
33.72
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
2.36
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.10
Internal Retaining Rings - 31.75x1.27x33.53 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2 or 18-8)    Approx. Loose Clip ID: 29 +/- 0.05   Groove Depth (d): 0.89
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy - Stainless Steel
Part Number: RRT-125-S02 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jul 19, 2026
$6.41 AUD
$6.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Internal Retaining Rings - 31.75x1.27x33.53 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Housing Bore (B)
31.75
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
33.53
mm
Approx. Loose Circlip OD (Dr)
33.72
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 31.75x1.27x33.53 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2 or 18-8)    Radial Wall (S) Approx.: 2.36 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.10   Approx. Loose Clip ID: 29 +/- 0.05   Groove Depth (d): 0.89
Category: Retaining Rings - Internal - Spiral Rings - Medium-Heavy - Stainless Steel
Part Number: RRT-125-S02 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jul 19, 2026
$6.41 AUD
$6.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
