Collection: Retaining Rings - Internal - Spiral Rings - Heavy Duty

Retaining Rings (With Images)

Internal

Spiral Rings

Heavy Duty

24 Products in this selection

This is a combined category of products from Heavy Duty Spiral Rings Internal Retaining Rings. Use the filters in the table below, or the category tree to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Snap Rings
Spiral Rings and Snap Rings PDF

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)
12.70 mm	0.89 mm +/-0.05	13.46 mm	13.55 mm +0.33/-0.00	1.14 mm +/-0.10	1.03 mm +/-0.05
Material: 302 Stainless Steel Approx. Loose Clip ID: 11.27 +/-0.04 Groove Depth (d): 0.38 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RRN-050-S02 (9 Pcs) Spiral - 12.7 mm x 0.89 mm x 13.46 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Per 9 View the product page first if you are unsure.
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
12.70 mm	0.89 mm +/-0.05	13.46 mm	13.55 mm +0.33/-0.00
Material: 302 Stainless Steel Radial Wall (S): 1.14 mm +/-0.10 Groove Width (W): 1.03 mm +/-0.05 Approx. Loose Clip ID: 11.27 +/-0.04 Groove Depth (d): 0.38 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RRN-050-S02 (9 Pcs) Spiral - 12.7 mm x 0.89 mm x 13.46 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Per 9 View the product page first if you are unsure.
RRN-050-S02 (9 Pcs) --- Spiral - 12.7 mm x 0.89 mm x 13.46 mm 302 Stainless Steel RRN-050-S02 (9 Pcs) --- Spiral - 12.7 mm x 0.89 mm x 13.46 mm 302 Stainless Steel Regular price $12.86 AUD Regular price Sale price $12.86 AUD Unit price per Out of stock! Backorder Now
15.88 mm	0.89 mm +/-0.05	16.89 mm	16.94 mm +0.33/-0.00	1.40 mm +/-0.10	1.03 mm +/-0.05
Material: Spring Steel Approx. Loose Clip ID: 14.14 +/-0.04 Groove Depth (d): 0.51 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel

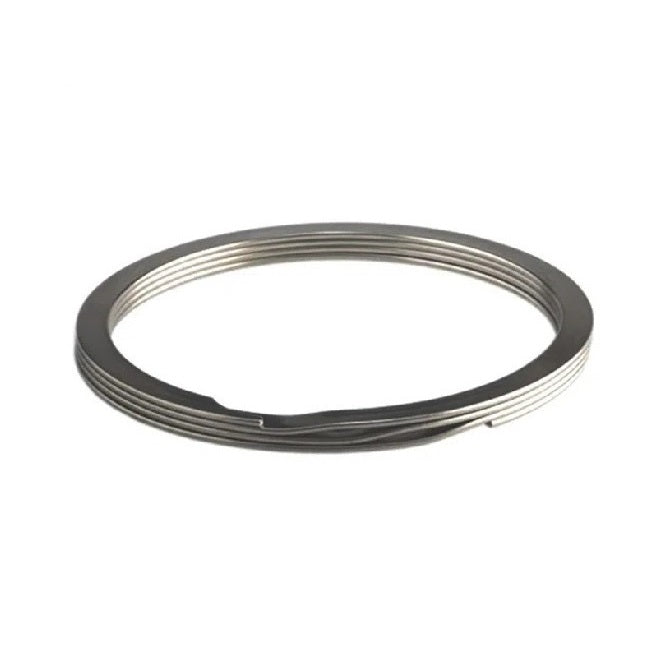

Part Number: RRN-062 (40 Pcs) Spiral - 15.88 mm x 0.89 mm x 16.89 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Per 40 View the product page first if you are unsure.
15.88 mm	0.89 mm +/-0.05	16.89 mm	16.94 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 1.40 mm +/-0.10 Groove Width (W): 1.03 mm +/-0.05 Approx. Loose Clip ID: 14.14 +/-0.04 Groove Depth (d): 0.51 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-062 (40 Pcs) Spiral - 15.88 mm x 0.89 mm x 16.89 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Per 40 View the product page first if you are unsure.
RRN-062 (40 Pcs) --- Spiral - 15.88 mm x 0.89 mm x 16.89 mm Spring Steel RRN-062 (40 Pcs) --- Spiral - 15.88 mm x 0.89 mm x 16.89 mm Spring Steel Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Out of stock! Backorder Now
15.88 mm	0.89 mm +/-0.05	16.89 mm	16.94 mm +0.33/-0.00	1.40 mm +/-0.10	1.03 mm +/-0.05
Material: 302 Stainless Steel Approx. Loose Clip ID: 14.14 +/-0.04 Groove Depth (d): 0.51 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RRN-062-S02 (100 Pcs) Spiral - 15.88 mm x 0.89 mm x 16.89 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Jan 31, 2025 Regular price $525.95 AUD Regular price Sale price $525.95 AUD Unit price per Per 100 View the product page first if you are unsure.
15.88 mm	0.89 mm +/-0.05	16.89 mm	16.94 mm +0.33/-0.00
Material: 302 Stainless Steel Radial Wall (S): 1.40 mm +/-0.10 Groove Width (W): 1.03 mm +/-0.05 Approx. Loose Clip ID: 14.14 +/-0.04 Groove Depth (d): 0.51 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RRN-062-S02 (100 Pcs) Spiral - 15.88 mm x 0.89 mm x 16.89 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Jan 31, 2025 Regular price $525.95 AUD Regular price Sale price $525.95 AUD Unit price per Per 100 View the product page first if you are unsure.
RRN-062-S02 (100 Pcs) --- Spiral - 15.88 mm x 0.89 mm x 16.89 mm 302 Stainless Steel RRN-062-S02 (100 Pcs) --- Spiral - 15.88 mm x 0.89 mm x 16.89 mm 302 Stainless Steel Regular price $525.95 AUD Regular price Sale price $525.95 AUD Unit price per Out of stock! Backorder Now
19.05 mm	0.89 mm +/-0.05	20.22 mm	20.33 mm +0.33/-0.00	1.65 mm +/-0.10	1.03 mm +/-0.05
Material: 302 Stainless Steel Approx. Loose Clip ID: 17.03 +/-0.04 Groove Depth (d): 0.58 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RRN-075-S02 (3 Pcs) Spiral - 19.05 mm x 0.89 mm x 20.22 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Per 3 View the product page first if you are unsure.
19.05 mm	0.89 mm +/-0.05	20.22 mm	20.33 mm +0.33/-0.00
Material: 302 Stainless Steel Radial Wall (S): 1.65 mm +/-0.10 Groove Width (W): 1.03 mm +/-0.05 Approx. Loose Clip ID: 17.03 +/-0.04 Groove Depth (d): 0.58 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RRN-075-S02 (3 Pcs) Spiral - 19.05 mm x 0.89 mm x 20.22 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Per 3 View the product page first if you are unsure.
RRN-075-S02 (3 Pcs) --- Spiral - 19.05 mm x 0.89 mm x 20.22 mm 302 Stainless Steel RRN-075-S02 (3 Pcs) --- Spiral - 19.05 mm x 0.89 mm x 20.22 mm 302 Stainless Steel Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Out of stock! Backorder Now
19.05 mm	0.89 mm +/-0.05	20.22 mm	20.33 mm +0.33/-0.00	1.65 mm +/-0.10	1.03 mm +/-0.05
Material: Spring Steel Approx. Loose Clip ID: 17.03 +/-0.04 Groove Depth (d): 0.58 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-075 (100 Pcs) Spiral - 19.05 mm x 0.89 mm x 20.22 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100 View the product page first if you are unsure.
19.05 mm	0.89 mm +/-0.05	20.22 mm	20.33 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 1.65 mm +/-0.10 Groove Width (W): 1.03 mm +/-0.05 Approx. Loose Clip ID: 17.03 +/-0.04 Groove Depth (d): 0.58 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-075 (100 Pcs) Spiral - 19.05 mm x 0.89 mm x 20.22 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100 View the product page first if you are unsure.
RRN-075 (100 Pcs) --- Spiral - 19.05 mm x 0.89 mm x 20.22 mm Spring Steel RRN-075 (100 Pcs) --- Spiral - 19.05 mm x 0.89 mm x 20.22 mm Spring Steel Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Out of stock! Backorder Now
22.23 mm	1.07 mm +/-0.05	23.65 mm	23.72 mm +0.33/-0.00	2.16 mm +/-0.10	1.21 mm +/-0.07
Material: Spring Steel Approx. Loose Clip ID: 19.4 +/-0.04 Groove Depth (d): 0.71 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-087 (4 Pcs) Spiral - 22.23 mm x 1.07 mm x 23.65 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $12.77 AUD Regular price Sale price $12.77 AUD Unit price per Per 4 View the product page first if you are unsure.
22.23 mm	1.07 mm +/-0.05	23.65 mm	23.72 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/-0.10 Groove Width (W): 1.21 mm +/-0.07 Approx. Loose Clip ID: 19.4 +/-0.04 Groove Depth (d): 0.71 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-087 (4 Pcs) Spiral - 22.23 mm x 1.07 mm x 23.65 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $12.77 AUD Regular price Sale price $12.77 AUD Unit price per Per 4 View the product page first if you are unsure.
RRN-087 (4 Pcs) --- Spiral - 22.23 mm x 1.07 mm x 23.65 mm Spring Steel RRN-087 (4 Pcs) --- Spiral - 22.23 mm x 1.07 mm x 23.65 mm Spring Steel Regular price $12.77 AUD Regular price Sale price $12.77 AUD Unit price per Out of stock! Backorder Now
22.86 mm	1.07 mm +/-0.05	24.36 mm	24.39 mm +0.33/-0.00	2.16 mm +/-0.10	1.21 mm +/-0.07
Material: Spring Steel Approx. Loose Clip ID: 20.07 +/-0.04 Groove Depth (d): 0.74 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-090 (38 Pcs) Spiral - 22.86 mm x 1.07 mm x 24.36 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Fri, Jan 31, 2025 Regular price $178.32 AUD Regular price Sale price $178.32 AUD Unit price per Per 38 View the product page first if you are unsure.
22.86 mm	1.07 mm +/-0.05	24.36 mm	24.39 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/-0.10 Groove Width (W): 1.21 mm +/-0.07 Approx. Loose Clip ID: 20.07 +/-0.04 Groove Depth (d): 0.74 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-090 (38 Pcs) Spiral - 22.86 mm x 1.07 mm x 24.36 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Fri, Jan 31, 2025 Regular price $178.32 AUD Regular price Sale price $178.32 AUD Unit price per Per 38 View the product page first if you are unsure.
RRN-090 (38 Pcs) --- Spiral - 22.86 mm x 1.07 mm x 24.36 mm Spring Steel RRN-090 (38 Pcs) --- Spiral - 22.86 mm x 1.07 mm x 24.36 mm Spring Steel Regular price $178.32 AUD Regular price Sale price $178.32 AUD Unit price per Out of stock! Backorder Now
23.83 mm	1.07 mm +/-0.05	25.40 mm	25.43 mm +0.33/-0.00	2.16 mm +/-0.10	1.21 mm +/-0.08
Material: Spring Steel Approx. Loose Clip ID: 21.11 +/-0.04 Groove Depth (d): 0.79 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-093 (42 Pcs) Spiral - 23.83 mm x 1.07 mm x 25.4 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Per 42 View the product page first if you are unsure.
23.83 mm	1.07 mm +/-0.05	25.40 mm	25.43 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/-0.10 Groove Width (W): 1.21 mm +/-0.08 Approx. Loose Clip ID: 21.11 +/-0.04 Groove Depth (d): 0.79 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-093 (42 Pcs) Spiral - 23.83 mm x 1.07 mm x 25.4 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Per 42 View the product page first if you are unsure.
RRN-093 (42 Pcs) --- Spiral - 23.83 mm x 1.07 mm x 25.4 mm Spring Steel RRN-093 (42 Pcs) --- Spiral - 23.83 mm x 1.07 mm x 25.4 mm Spring Steel Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Out of stock! Backorder Now
25.40 mm	1.07 mm +/-0.05	27.08 mm	27.10 mm +0.33/-0.00	2.16 mm +/-0.10	1.21 mm +/-0.07
Material: Spring Steel Approx. Loose Clip ID: 22.78 +/-0.04 Groove Depth (d): 0.84 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-100 (5 Pcs) Spiral - 25.4 mm x 1.07 mm x 27.08 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Per 5 View the product page first if you are unsure.
25.40 mm	1.07 mm +/-0.05	27.08 mm	27.10 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/-0.10 Groove Width (W): 1.21 mm +/-0.07 Approx. Loose Clip ID: 22.78 +/-0.04 Groove Depth (d): 0.84 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-100 (5 Pcs) Spiral - 25.4 mm x 1.07 mm x 27.08 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Per 5 View the product page first if you are unsure.
RRN-100 (5 Pcs) --- Spiral - 25.4 mm x 1.07 mm x 27.08 mm Spring Steel RRN-100 (5 Pcs) --- Spiral - 25.4 mm x 1.07 mm x 27.08 mm Spring Steel Regular price $6.41 AUD Regular price Sale price $6.41 AUD Unit price per Out of stock! Backorder Now
25.40 mm	1.07 mm +/-0.05	27.08 mm	27.10 mm +0.33/-0.00	2.16 mm +/-0.10	1.21 mm +/-0.07
Material: 302 Stainless Steel Approx. Loose Clip ID: 22.78 +/-0.04 Groove Depth (d): 0.84 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RRN-100-S02 (5 Pcs) Spiral - 25.4 mm x 1.07 mm x 27.08 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Per 5 View the product page first if you are unsure.
25.40 mm	1.07 mm +/-0.05	27.08 mm	27.10 mm +0.33/-0.00
Material: 302 Stainless Steel Radial Wall (S): 2.16 mm +/-0.10 Groove Width (W): 1.21 mm +/-0.07 Approx. Loose Clip ID: 22.78 +/-0.04 Groove Depth (d): 0.84 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RRN-100-S02 (5 Pcs) Spiral - 25.4 mm x 1.07 mm x 27.08 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Per 5 View the product page first if you are unsure.
RRN-100-S02 (5 Pcs) --- Spiral - 25.4 mm x 1.07 mm x 27.08 mm 302 Stainless Steel RRN-100-S02 (5 Pcs) --- Spiral - 25.4 mm x 1.07 mm x 27.08 mm 302 Stainless Steel Regular price $14.95 AUD Regular price Sale price $14.95 AUD Unit price per Out of stock! Backorder Now
25.98 mm	1.07 mm +/-0.05	27.72 mm	27.72 mm +0.33/-0.00	2.16 mm +/-0.10	1.21 mm +/-0.07
Material: 302 Stainless Steel Approx. Loose Clip ID: 23.4 +/-0.04 Groove Depth (d): 0.86 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RRN-102-S02 (2 Pcs) Spiral - 25.98 mm x 1.07 mm x 27.72 mm / Retaining Rings 5 units (10 pcs) Available \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Per 2 View the product page first if you are unsure.
25.98 mm	1.07 mm +/-0.05	27.72 mm	27.72 mm +0.33/-0.00
Material: 302 Stainless Steel Radial Wall (S): 2.16 mm +/-0.10 Groove Width (W): 1.21 mm +/-0.07 Approx. Loose Clip ID: 23.4 +/-0.04 Groove Depth (d): 0.86 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RRN-102-S02 (2 Pcs) Spiral - 25.98 mm x 1.07 mm x 27.72 mm / Retaining Rings 5 units (10 pcs) Available \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per Per 2 View the product page first if you are unsure.
RRN-102-S02 (2 Pcs) --- Spiral - 25.98 mm x 1.07 mm x 27.72 mm 302 Stainless Steel RRN-102-S02 (2 Pcs) --- Spiral - 25.98 mm x 1.07 mm x 27.72 mm 302 Stainless Steel Regular price $15.32 AUD Regular price Sale price $15.32 AUD Unit price per 5 Available Now
28.58 mm	1.27 mm +/-0.05	30.41 mm	30.49 mm +0.33/-0.00	2.62 mm +/-0.11	1.47 mm +/-0.11
Material: Spring Steel Approx. Loose Clip ID: 25.25 +/-0.05 Groove Depth (d): 0.91 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-112 (6 Pcs) Spiral - 28.58 mm x 1.27 mm x 30.41 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 6 View the product page first if you are unsure.
28.58 mm	1.27 mm +/-0.05	30.41 mm	30.49 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 2.62 mm +/-0.11 Groove Width (W): 1.47 mm +/-0.11 Approx. Loose Clip ID: 25.25 +/-0.05 Groove Depth (d): 0.91 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-112 (6 Pcs) Spiral - 28.58 mm x 1.27 mm x 30.41 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 6 View the product page first if you are unsure.
RRN-112 (6 Pcs) --- Spiral - 28.58 mm x 1.27 mm x 30.41 mm Spring Steel RRN-112 (6 Pcs) --- Spiral - 28.58 mm x 1.27 mm x 30.41 mm Spring Steel Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Out of stock! Backorder Now
30.18 mm	1.27 mm +/-0.05	32.06 mm	32.20 mm +0.33/-0.00	2.62 mm +/-0.11	1.47 mm +/-0.10
Material: Spring Steel Approx. Loose Clip ID: 26.96 +/-0.05 Groove Depth (d): 0.94 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-118 Spiral - 30.18 mm x 1.27 mm x 32.06 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Each View the product page first if you are unsure.
30.18 mm	1.27 mm +/-0.05	32.06 mm	32.20 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 2.62 mm +/-0.11 Groove Width (W): 1.47 mm +/-0.10 Approx. Loose Clip ID: 26.96 +/-0.05 Groove Depth (d): 0.94 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-118 Spiral - 30.18 mm x 1.27 mm x 32.06 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Each View the product page first if you are unsure.
RRN-118 --- Spiral - 30.18 mm x 1.27 mm x 32.06 mm Spring Steel RRN-118 --- Spiral - 30.18 mm x 1.27 mm x 32.06 mm Spring Steel Regular price $13.41 AUD Regular price Sale price $13.41 AUD Unit price per Out of stock! Backorder Now
31.75 mm	1.27 mm +/-0.05	33.78 mm	33.88 mm +0.33/-0.00	2.62 mm +/-0.11	1.47 mm +/-0.10
Material: Spring Steel Approx. Loose Clip ID: 28.64 +/-0.05 Groove Depth (d): 1.02 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-125 (100 Pcs) Spiral - 31.75 mm x 1.27 mm x 33.78 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Per 100 View the product page first if you are unsure.
31.75 mm	1.27 mm +/-0.05	33.78 mm	33.88 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 2.62 mm +/-0.11 Groove Width (W): 1.47 mm +/-0.10 Approx. Loose Clip ID: 28.64 +/-0.05 Groove Depth (d): 1.02 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-125 (100 Pcs) Spiral - 31.75 mm x 1.27 mm x 33.78 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Per 100 View the product page first if you are unsure.
RRN-125 (100 Pcs) --- Spiral - 31.75 mm x 1.27 mm x 33.78 mm Spring Steel RRN-125 (100 Pcs) --- Spiral - 31.75 mm x 1.27 mm x 33.78 mm Spring Steel Regular price $12.41 AUD Regular price Sale price $12.41 AUD Unit price per Out of stock! Backorder Now
34.93 mm	1.27 mm +/-0.05	37.11 mm	37.27 mm +0.33/-0.00	3.00 mm +/-0.10	1.47 mm +/-0.10
Material: Spring Steel Approx. Loose Clip ID: 31.27 +/-0.05 Groove Depth (d): 1.09 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-137 (2 Pcs) Spiral - 34.93 mm x 1.27 mm x 37.11 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Per 2 View the product page first if you are unsure.
34.93 mm	1.27 mm +/-0.05	37.11 mm	37.27 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 3.00 mm +/-0.10 Groove Width (W): 1.47 mm +/-0.10 Approx. Loose Clip ID: 31.27 +/-0.05 Groove Depth (d): 1.09 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-137 (2 Pcs) Spiral - 34.93 mm x 1.27 mm x 37.11 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Per 2 View the product page first if you are unsure.
RRN-137 (2 Pcs) --- Spiral - 34.93 mm x 1.27 mm x 37.11 mm Spring Steel RRN-137 (2 Pcs) --- Spiral - 34.93 mm x 1.27 mm x 37.11 mm Spring Steel Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Out of stock! Backorder Now
36.55 mm	1.27 mm +/-0.05	38.81 mm	39.00 mm +0.33/-0.00	3.00 mm +/-0.10	1.47 mm +/-0.10
Material: Spring Steel Approx. Loose Clip ID: 33 +/-0.05 Groove Depth (d): 1.14 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-143 Spiral - 36.55 mm x 1.27 mm x 38.81 mm / Retaining Rings 7 Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.00 AUD Regular price ~~$4.95 AUD~~ Sale price $3.00 AUD Unit price per Each
36.55 mm	1.27 mm +/-0.05	38.81 mm	39.00 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 3.00 mm +/-0.10 Groove Width (W): 1.47 mm +/-0.10 Approx. Loose Clip ID: 33 +/-0.05 Groove Depth (d): 1.14 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-143 Spiral - 36.55 mm x 1.27 mm x 38.81 mm / Retaining Rings 7 Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity \| Regular price $3.00 AUD Regular price ~~$4.95 AUD~~ Sale price $3.00 AUD Unit price per Each
RRN-143 --- Spiral - 36.55 mm x 1.27 mm x 38.81 mm Spring Steel Sale RRN-143 --- Spiral - 36.55 mm x 1.27 mm x 38.81 mm Spring Steel Regular price $3.00 AUD Regular price ~~$4.95 AUD~~ Sale price $3.00 AUD Unit price per 7 Available Now Sale
38.10 mm	1.27 mm +/-0.05	40.49 mm	40.65 mm +0.33/-0.00	3.00 mm +/-0.10	1.47 mm +/-0.10
Material: Spring Steel Approx. Loose Clip ID: 34.65 +/-0.05 Groove Depth (d): 1.19 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-150 (7 Pcs) Spiral - 38.1 mm x 1.27 mm x 40.49 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $11.68 AUD Regular price Sale price $11.68 AUD Unit price per Per 7 View the product page first if you are unsure.
38.10 mm	1.27 mm +/-0.05	40.49 mm	40.65 mm +0.33/-0.00
Material: Spring Steel Radial Wall (S): 3.00 mm +/-0.10 Groove Width (W): 1.47 mm +/-0.10 Approx. Loose Clip ID: 34.65 +/-0.05 Groove Depth (d): 1.19 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-150 (7 Pcs) Spiral - 38.1 mm x 1.27 mm x 40.49 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $11.68 AUD Regular price Sale price $11.68 AUD Unit price per Per 7 View the product page first if you are unsure.
RRN-150 (7 Pcs) --- Spiral - 38.1 mm x 1.27 mm x 40.49 mm Spring Steel RRN-150 (7 Pcs) --- Spiral - 38.1 mm x 1.27 mm x 40.49 mm Spring Steel Regular price $11.68 AUD Regular price Sale price $11.68 AUD Unit price per Out of stock! Backorder Now
50.80 mm	1.58 mm +/-0.08	53.90 mm	54.20 mm +0.51/-0.00	4.01 mm +/-0.10	1.78 mm +/-0.13
Material: 302 Stainless Steel Approx. Loose Clip ID: 46.18 +/-0.05 Groove Depth (d): 1.55 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RRN-200-S02 Spiral - 50.8 mm x 1.58 mm x 53.9 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $15.23 AUD Regular price Sale price $15.23 AUD Unit price per Each View the product page first if you are unsure.
50.80 mm	1.58 mm +/-0.08	53.90 mm	54.20 mm +0.51/-0.00
Material: 302 Stainless Steel Radial Wall (S): 4.01 mm +/-0.10 Groove Width (W): 1.78 mm +/-0.13 Approx. Loose Clip ID: 46.18 +/-0.05 Groove Depth (d): 1.55 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RRN-200-S02 Spiral - 50.8 mm x 1.58 mm x 53.9 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $15.23 AUD Regular price Sale price $15.23 AUD Unit price per Each View the product page first if you are unsure.
RRN-200-S02 --- Spiral - 50.8 mm x 1.58 mm x 53.9 mm 302 Stainless Steel RRN-200-S02 --- Spiral - 50.8 mm x 1.58 mm x 53.9 mm 302 Stainless Steel Regular price $15.23 AUD Regular price Sale price $15.23 AUD Unit price per Out of stock! Backorder Now
50.80 mm	1.58 mm +/-0.08	53.90 mm	54.20 mm +0.51/-0.00	4.01 mm +/-0.10	1.78 mm +/-0.13
Material: Spring Steel Approx. Loose Clip ID: 46.18 +/-0.05 Groove Depth (d): 1.55 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-200 Spiral - 50.8 mm x 1.58 mm x 53.9 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Each View the product page first if you are unsure.
50.80 mm	1.58 mm +/-0.08	53.90 mm	54.20 mm +0.51/-0.00
Material: Spring Steel Radial Wall (S): 4.01 mm +/-0.10 Groove Width (W): 1.78 mm +/-0.13 Approx. Loose Clip ID: 46.18 +/-0.05 Groove Depth (d): 1.55 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-200 Spiral - 50.8 mm x 1.58 mm x 53.9 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Each View the product page first if you are unsure.
RRN-200 --- Spiral - 50.8 mm x 1.58 mm x 53.9 mm Spring Steel RRN-200 --- Spiral - 50.8 mm x 1.58 mm x 53.9 mm Spring Steel Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Out of stock! Backorder Now
57.15 mm	1.99 mm +/-0.08	60.51 mm	60.98 mm +0.64/-0.00	4.27 mm +/-0.13	2.25 mm +/-0.15
Material: Spring Steel Approx. Loose Clip ID: 52.44 +/-0.06 Groove Depth (d): 1.68 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-225 (4 Pcs) Spiral - 57.15 mm x 1.99 mm x 60.51 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Per 4 View the product page first if you are unsure.
57.15 mm	1.99 mm +/-0.08	60.51 mm	60.98 mm +0.64/-0.00
Material: Spring Steel Radial Wall (S): 4.27 mm +/-0.13 Groove Width (W): 2.25 mm +/-0.15 Approx. Loose Clip ID: 52.44 +/-0.06 Groove Depth (d): 1.68 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-225 (4 Pcs) Spiral - 57.15 mm x 1.99 mm x 60.51 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Per 4 View the product page first if you are unsure.
RRN-225 (4 Pcs) --- Spiral - 57.15 mm x 1.99 mm x 60.51 mm Spring Steel RRN-225 (4 Pcs) --- Spiral - 57.15 mm x 1.99 mm x 60.51 mm Spring Steel Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Out of stock! Backorder Now
76.20 mm	2.37 mm +/-0.08	80.83 mm	81.31 mm +0.76/-0.00	5.72 mm +/-0.13	2.68 mm +/-0.16
Material: Spring Steel Approx. Loose Clip ID: 69.87 +/-0.06 Groove Depth (d): 2.31 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-300 (2 Pcs) Spiral - 76.2 mm x 2.37 mm x 80.83 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $32.23 AUD Regular price Sale price $32.23 AUD Unit price per Per 2 View the product page first if you are unsure.
76.20 mm	2.37 mm +/-0.08	80.83 mm	81.31 mm +0.76/-0.00
Material: Spring Steel Radial Wall (S): 5.72 mm +/-0.13 Groove Width (W): 2.68 mm +/-0.16 Approx. Loose Clip ID: 69.87 +/-0.06 Groove Depth (d): 2.31 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-300 (2 Pcs) Spiral - 76.2 mm x 2.37 mm x 80.83 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $32.23 AUD Regular price Sale price $32.23 AUD Unit price per Per 2 View the product page first if you are unsure.
RRN-300 (2 Pcs) --- Spiral - 76.2 mm x 2.37 mm x 80.83 mm Spring Steel RRN-300 (2 Pcs) --- Spiral - 76.2 mm x 2.37 mm x 80.83 mm Spring Steel Regular price $32.23 AUD Regular price Sale price $32.23 AUD Unit price per Out of stock! Backorder Now
79.38 mm	2.82 mm +/-0.08	84.20 mm	84.70 mm +0.89/-0.00	7.14 mm +/-0.13	3.12 mm +/-0.15
Material: Spring Steel Approx. Loose Clip ID: 70.42 +/-0.07 Groove Depth (d): 2.41 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-312 Spiral - 79.38 mm x 2.82 mm x 84.2 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Each View the product page first if you are unsure.
79.38 mm	2.82 mm +/-0.08	84.20 mm	84.70 mm +0.89/-0.00
Material: Spring Steel Radial Wall (S): 7.14 mm +/-0.13 Groove Width (W): 3.12 mm +/-0.15 Approx. Loose Clip ID: 70.42 +/-0.07 Groove Depth (d): 2.41 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-312 Spiral - 79.38 mm x 2.82 mm x 84.2 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Each View the product page first if you are unsure.
RRN-312 --- Spiral - 79.38 mm x 2.82 mm x 84.2 mm Spring Steel RRN-312 --- Spiral - 79.38 mm x 2.82 mm x 84.2 mm Spring Steel Regular price $12.14 AUD Regular price Sale price $12.14 AUD Unit price per Out of stock! Backorder Now
89.99 mm	2.82 mm +/-0.08	95.38 mm	96.02 mm +0.89/-0.00	7.14 mm +/-0.13	3.12 mm +/-0.16
Material: Spring Steel Approx. Loose Clip ID: 81.74 +/-0.07 Groove Depth (d): 2.69 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-354 Spiral - 89.99 mm x 2.82 mm x 95.38 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Each View the product page first if you are unsure.
89.99 mm	2.82 mm +/-0.08	95.38 mm	96.02 mm +0.89/-0.00
Material: Spring Steel Radial Wall (S): 7.14 mm +/-0.13 Groove Width (W): 3.12 mm +/-0.16 Approx. Loose Clip ID: 81.74 +/-0.07 Groove Depth (d): 2.69 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-354 Spiral - 89.99 mm x 2.82 mm x 95.38 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sun, Jan 19, 2025 Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Each View the product page first if you are unsure.
RRN-354 --- Spiral - 89.99 mm x 2.82 mm x 95.38 mm Spring Steel RRN-354 --- Spiral - 89.99 mm x 2.82 mm x 95.38 mm Spring Steel Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Out of stock! Backorder Now
109.98 mm	2.82 mm +/-0.08	115.72 mm	117.35 mm +0.89/-0.00	7.93 mm +/-0.16	3.12 mm +/-0.15
Material: Spring Steel Approx. Loose Clip ID: 101.49 +/-0.07 Groove Depth (d): 3.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-433 (5 Pcs) Spiral - 109.98 mm x 2.82 mm x 115.72 mm / Retaining Rings Out of Stock Backorder Now \| Backorders for more can be expected around Sat, Mar 22, 2025 Regular price $279.68 AUD Regular price Sale price $279.68 AUD Unit price per Per 5 View the product page first if you are unsure.
109.98 mm	2.82 mm +/-0.08	115.72 mm	117.35 mm +0.89/-0.00
Material: Spring Steel Radial Wall (S): 7.93 mm +/-0.16 Groove Width (W): 3.12 mm +/-0.15 Approx. Loose Clip ID: 101.49 +/-0.07 Groove Depth (d): 3.05 Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RRN-433 (5 Pcs) Spiral - 109.98 mm x 2.82 mm x 115.72 mm / Retaining Rings Out of Stock Backorder Now \| \| Backorders for more can be expected around Sat, Mar 22, 2025 Regular price $279.68 AUD Regular price Sale price $279.68 AUD Unit price per Per 5 View the product page first if you are unsure.
RRN-433 (5 Pcs) --- Spiral - 109.98 mm x 2.82 mm x 115.72 mm Spring Steel RRN-433 (5 Pcs) --- Spiral - 109.98 mm x 2.82 mm x 115.72 mm Spring Steel Regular price $279.68 AUD Regular price Sale price $279.68 AUD Unit price per Out of stock! Backorder Now

Country/region

Language

Collection: Retaining Rings - Internal - Spiral Rings - Heavy Duty

Filter

Filter

SUBSCRIBE TO OUR EMAILS
